BO-CD-100-4 | -EV | -AX | -LD | -EVLD
BO-CD-100-4 | -EV | -AX | -LD | -EVLD
Digital amplifier 4 × 100 W
APS -AUDIO PROCESSOR SYSTEM
®
1 2 3

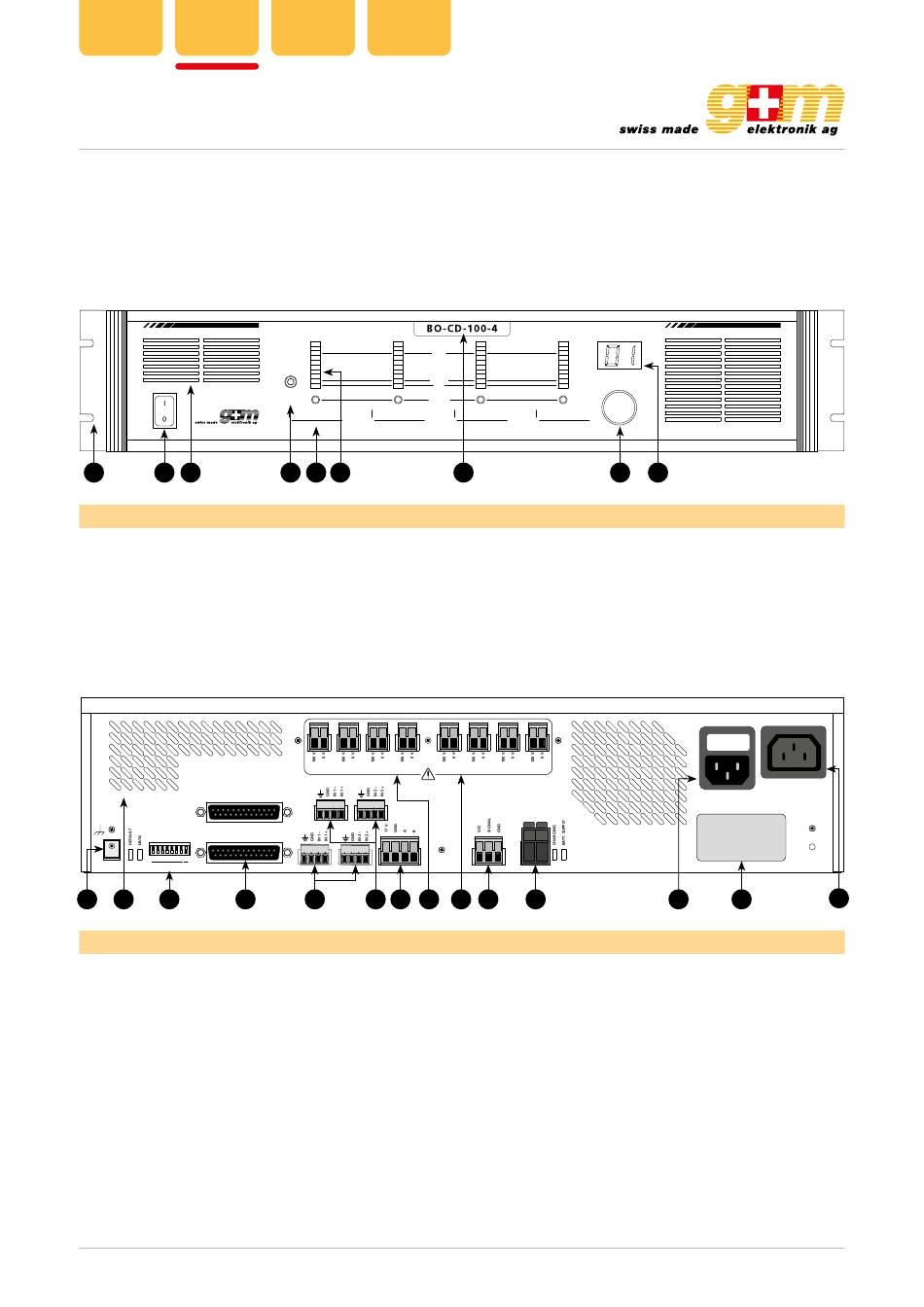

Front view
1 19" adapter 2HE (option MC-42)
2 DC switch standby / on (0 / I)
3 Ventilation slots
4 Programming socket
5 Channel selection buttons
ARTIKELNR. 9431, BO-CD-100- 4-EV
BUS IN / OUT
S
ADDRESS M
A B C D
Rear view
A Functional earth
B Ventilation slots
C Mini switches for address and master / slave
D D-SUB-25 sockets for APS bus cable
E1, E2 Input terminal for LF signal
F Terminal for remote control (RC16)
G Input terminals for reserve amplifiers 1 – 4
gm-elektronik.swiss | adm@gm-elektronik.swiss
Français Czech
0 dB
FAULT
ON
DATA SELECT
CH1 CH2
4 5 6
IN 1 IN 2 IN 3 IN 4 OUT 1
0 dB IN 3 0 dB IN 4
1 2 1 2
RC16
0 dB IN 1 0 dB IN 2
F G H
E1 E2
PRESET
CH3 CH4
7 8
6 Level display
7 Type designation
8 Volume control
9 Preset / error display
OUT 2 OUT 3 OUT 4
SENSOR BATTERY
48 V DC 12 A
+ –
AIR COOLING – DO NOT COVER
I J
H Output terminals for amplifiers 1 – 4
I Terminal for temperature sensor
J Terminal for battery (48 VDC)
K Input socket for mains voltage with fuse
L Type plate
M Output socket for mains voltage 230 V
Terminals G, I and J only with EV version
Terminal E2 only with AX version
Page 1 | 3 ds_ BO-CD-100-4.-EV.-LD.-EVLD_11_en
D I G I TA L A M P L I F I E R C L A S S - D
9
Hier öffnen für Netz-
sicherung FUS.1
Achtung: Gerät zuerst
vom Netz trennen!
OUT 230 V AC
IN 230 V AC 50 Hz 10 A DISCONNECT FROM
FUSE T3.15 A
SUPPLY BEFORE OPENING
K L
M
