BO-CD-100-4 | -EV | -LD | -EVLD
BO-CD-100-4 | -EV | -LD | -EVLD
Digital Amplifier 4 × 100 W
APS -AUDIO PROCESSOR SYSTEM
®
1 2 3

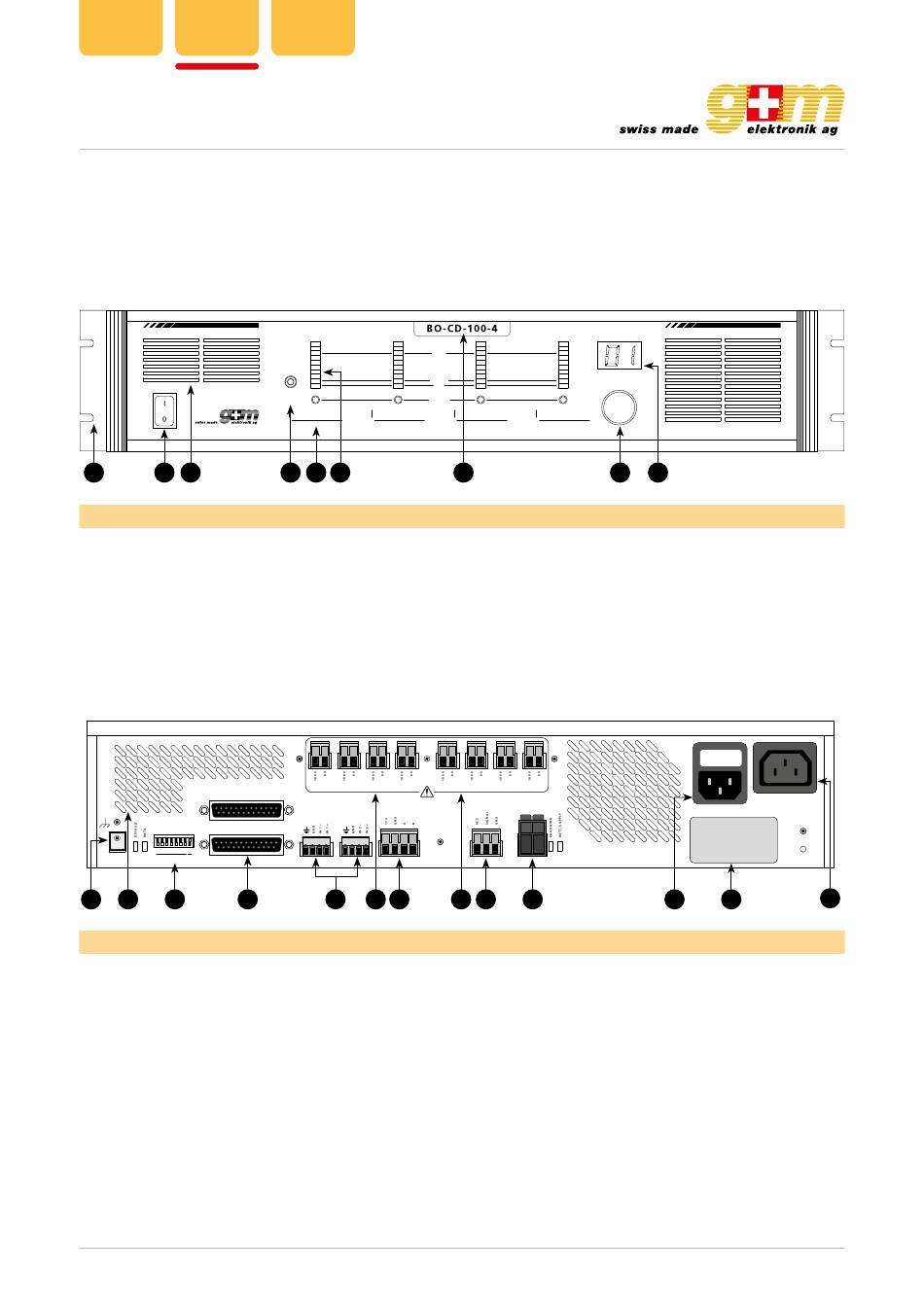

Front view
1 19" Adaptor 2U (Option MC-42)
2 DC switch On / Standby (0 / I)
3 Ventilation grille
4 Socket for programming
5 Channel selection button
ARTIKELNR. 9431, BO-CD-100- 4-EV
BUS IN / OUT
S
ADDRESS M
A B C D
Rear view
A Functional earth
B Ventilation grille
C Mini-switches for the addressing
D Socket D-SUB-25 for APS bus ribbon cable
E Input connector blocks for LF signal
F Input connector blocks for reserve amps 1–4
G Connector block for remote control (RC16)
gm-elektronik.swiss | adm@gm-elektronik.swiss
Français
0 dB
FAULT
ON
DATA SELECT
CH1 CH2
4 5 6
IN 1 IN 2 IN 3 IN 4 OUT 1
0 dB IN 1 0 dB IN 2 RC16
1 2 1 2
E F G H
PRESET
CH3 CH4
7 8
6 LED indication
7 Model code
8 Volume control
9 Preset / Fault display
OUT 2 OUT 3 OUT 4
SENSOR BATTERY
48 V DC 12 A
+ –
AIR COOLING – DO NOT COVER
I J
H Output connector blocks for amplifier 1–4
I Connector block for temperature sensor
J Connector block for the battery (48 VDC)
K Mains power input 230 V with integrated fuse
L Type label
M Mains power output 230 V for extension
Connector blocks E, I and J at EV version only
