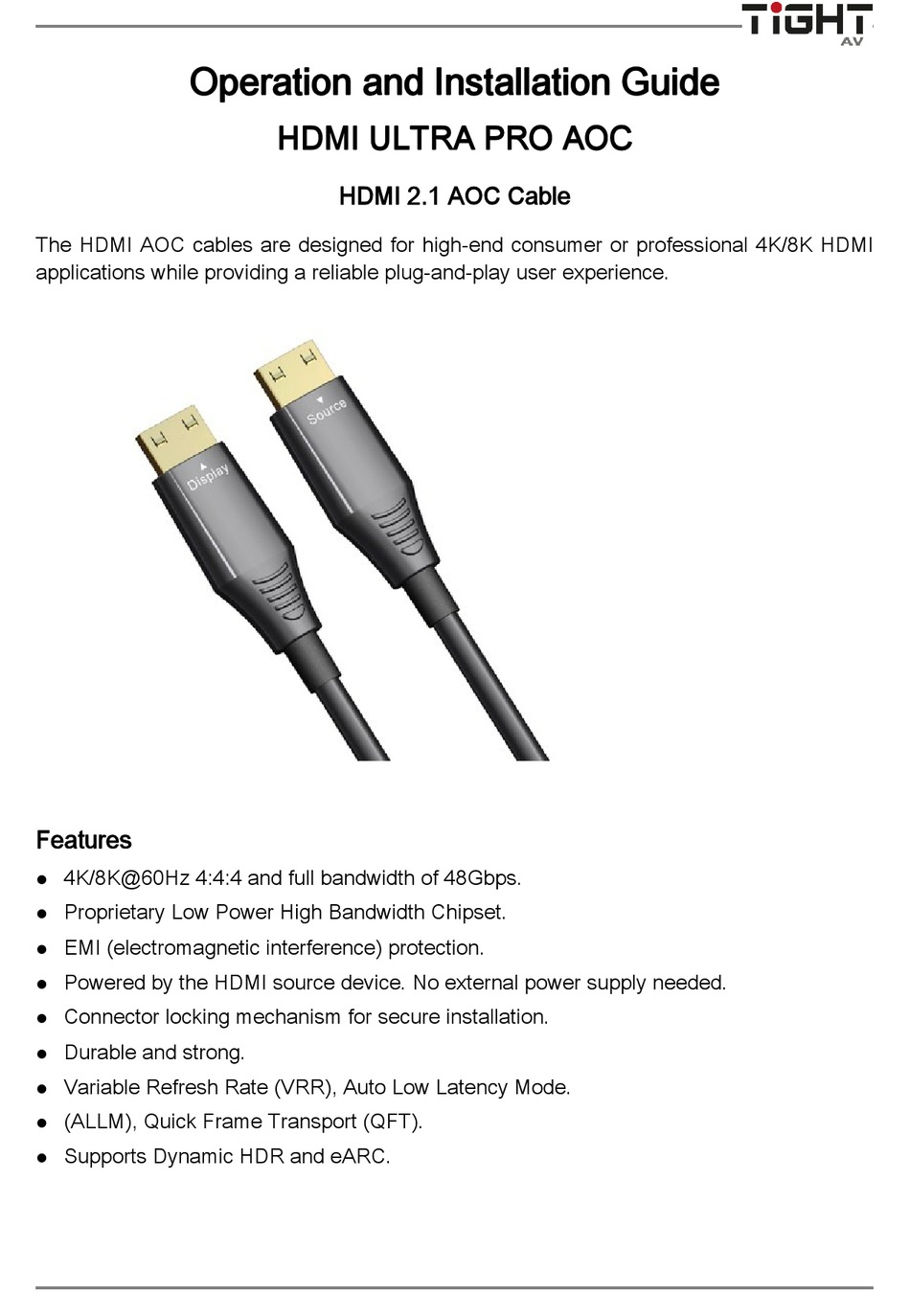

Operation and Installation Guide
The HDMI AOC cables are designed for high-end consumer or professional 4K/8K HDMI
applications while providing a reliable plug-and-play user experience.

Features

4K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps.
Proprietary Low Power High Bandwidth Chipset.
EMI (electromagnetic interference) protection.
Powered by the HDMI source device. No external power supply needed.
Connector locking mechanism for secure installation.
Durable and strong.
Variable Refresh Rate (VRR), Auto Low Latency Mode.
(ALLM), Quick Frame Transport (QFT).
Supports Dynamic HDR and eARC.
HDMI ULTRA PRO AOC
HDMI 2.1 AOC Cable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMI-M/M-AOC-15 and is the answer not in the manual?

Questions and answers

Related Manuals for TiGHT AV HDMI-M/M-AOC-15

Summary of Contents for TiGHT AV HDMI-M/M-AOC-15

  • Page 1 Operation and Installation Guide HDMI ULTRA PRO AOC HDMI 2.1 AOC Cable The HDMI AOC cables are designed for high-end consumer or professional 4K/8K HDMI applications while providing a reliable plug-and-play user experience. Features 4K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps. ...
  • Page 2 Display HDMI Type A Male (Gold plating) Cable Cable specifications 1C+(2c*30#+DA)+3C*28#+2C*24#+F+AL+B Optical fiber specifications 4*Multi-mode optical fiber Available lengths HDMI-M/M-AOC-15: 15 meters HDMI-M/M-AOC-30: 30 meters HDMI-M/M-AOC-60: 60 meters Outer sheath material Outer sheath color Black Outer diameter 5.2mm±0.1mm Cable bending radius...
  • Page 3 Installing Cable Note: Pay attention to the direction of connection.  Do not plug the SOURCE connector to the display device.  Do not plug the DISPLAY connector to the source device.  The source device needs to supply power to the AOC cable. ...
  • Page 4 3. Do not exceed the maximum connector pulling strength (150N) when installing the cable. *Exceeding maximum pulling strength specifications voids warranty* Pull Cover Size Customer Service We provide limited warranty for the product within one year counting from date of purchase (The purchase invoice shall prevail).
