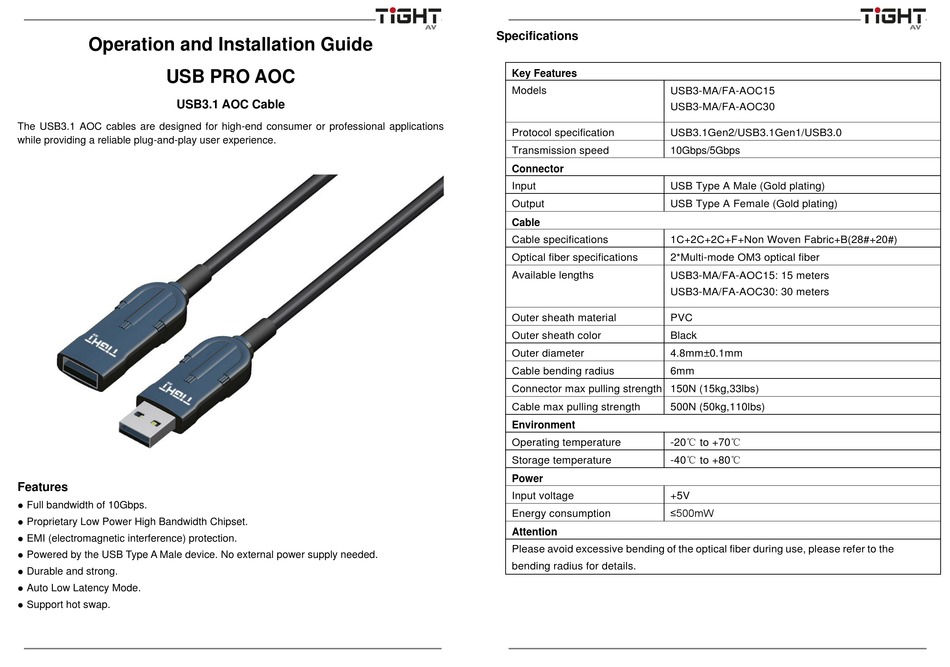

Operation and Installation Guide
USB PRO AOC

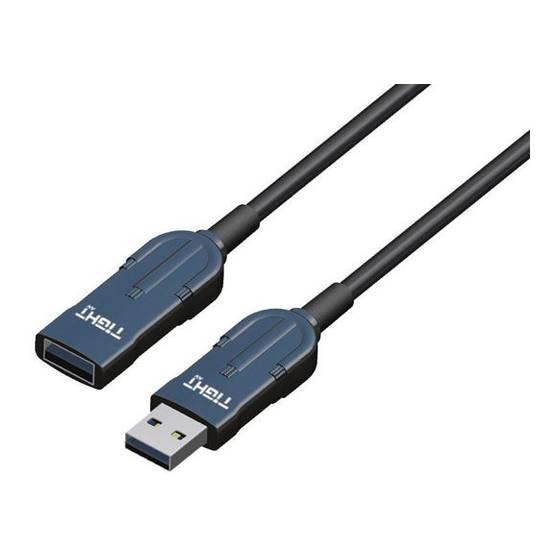

USB3.1 AOC Cable
The USB3.1 AOC cables are designed for high-end consumer or professional applications
while providing a reliable plug-and-play user experience.
Features
⚫
Full bandwidth of 10Gbps.
Proprietary Low Power High Bandwidth Chipset.
⚫
⚫
EMI (electromagnetic interference) protection.
Powered by the USB Type A Male device. No external power supply needed.
⚫
Durable and strong.
⚫
Auto Low Latency Mode.
⚫
Support hot swap.
⚫
Specifications
Key Features
Models
USB3-MA/FA-AOC15
USB3-MA/FA-AOC30
Protocol specification
USB3.1Gen2/USB3.1Gen1/USB3.0
Transmission speed
10Gbps/5Gbps
Connector
Input
USB Type A Male (Gold plating)
Output
USB Type A Female (Gold plating)
Cable
Cable specifications
1C+2C+2C+F+Non Woven Fabric+B(28#+20#)
Optical fiber specifications
2*Multi-mode OM3 optical fiber
Available lengths
USB3-MA/FA-AOC15: 15 meters
USB3-MA/FA-AOC30: 30 meters
Outer sheath material
PVC
Outer sheath color
Black
Outer diameter
4.8mm±0.1mm
Cable bending radius
6mm
Connector max pulling strength 150N (15kg,33lbs)
Cable max pulling strength
500N (50kg,110lbs)
Environment
Operating temperature
-20℃ to +70℃
Storage temperature
-40℃ to +80℃
Power
Input voltage
+5V
≤500mW
Energy consumption
Attention
Please avoid excessive bending of the optical fiber during use, please refer to the
bending radius for details.
Advertisement
Table of Contents
Related Manuals for TiGHT AV USB PRO AOC
Summary of Contents for TiGHT AV USB PRO AOC
- Page 1 Specifications Operation and Installation Guide USB PRO AOC Key Features Models USB3-MA/FA-AOC15 USB3.1 AOC Cable USB3-MA/FA-AOC30 The USB3.1 AOC cables are designed for high-end consumer or professional applications Protocol specification USB3.1Gen2/USB3.1Gen1/USB3.0 while providing a reliable plug-and-play user experience. Transmission speed...
- Page 2 Installing Cable 3. Do not exceed the maximum connector pulling strength (150N) when installing the cable. *Exceeding maximum pulling strength specifications voids warranty* Pull Cover Size Note: Pay attention to the direction of connection. ⚫ ⚫ The Type A Male device needs to supply power to the AOC cable. Do not exceed cable bending radius.
