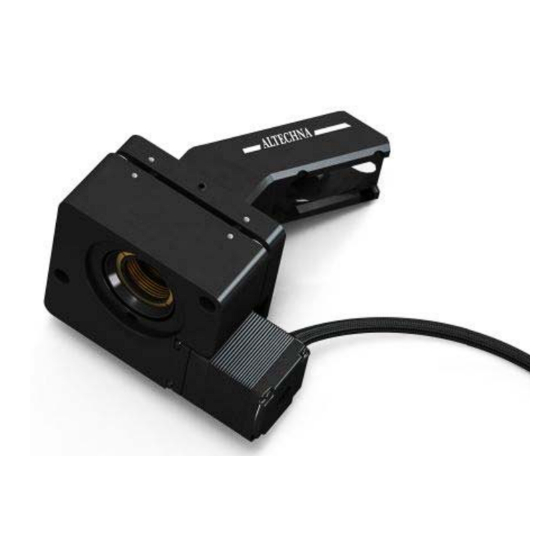

- Page 1 WATT PILOT Motorized Attenuator QUICK START GUIDE...
- Page 2 I. Introduction This guide is designed to help you quickly install Watt Pilot. When connected to a host computer (operating system Windows 98 or further version) via USB interface, Watt Pilot can be used as stand-alone device or integrated in custom design systems.
- Page 3 III. Assembling Figure 2. Assembling the Watt Pilot. Watt Pilot assembling steps: Step 1 Place polarizers into mechanical adapter. Polarizers must face each other with surfaces coated with polarizing coating. Polarizing coating is marked with an arrow, so you have to put the polarizers with the arrows on the sides facing each other.
- Page 4 Right click My Computer (1) → Properties (2) → Device Manager (3) → Ports (COM & LPT) (4). Find a port called USB Serial Port in the list (Watt Pilot controller box must be connected to PC). Remember the number of this port (e.g.
