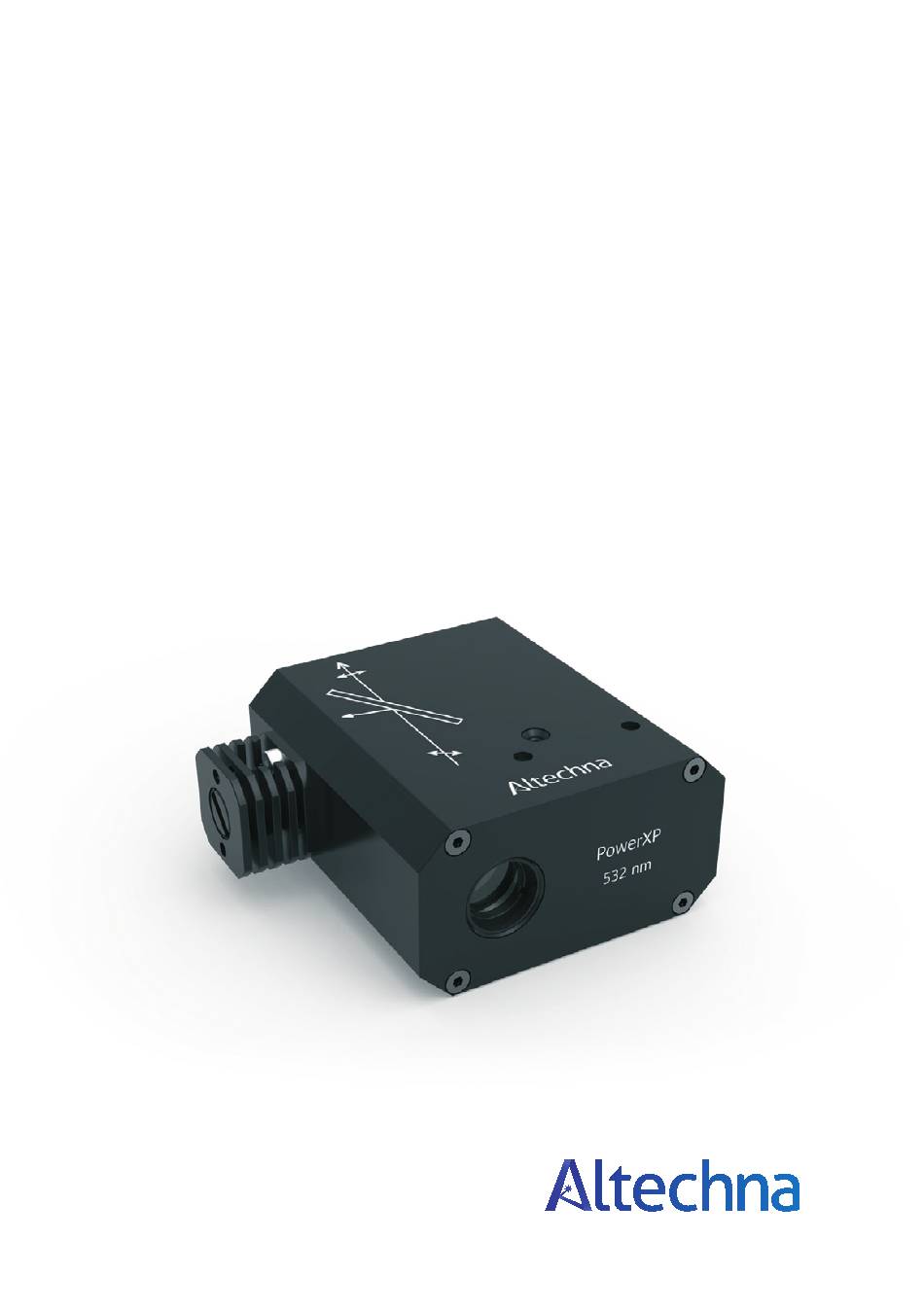

- Page 1 Watt Pilot PowerXP Compact Motorized Motorized Attenuator Attenuator User Manual Quick Start Guide 2019 version L.4.00...
-
Page 2: Table Of Contents
Contents 1. Introduction 1.1. PowerXP short description 1.2. General safety requirements 1.3. Regulation 1.4. Operating and storage conditions 2. Operation Principle 3. Package Contents 3.1. Optics (dis)assembling 4. PowerXP Software Description 4.1 “AltOne” software 4.2. Computer requirements 4.2. Software installation 4.3 Program first run... -
Page 3: Introduction
Altechna has been advised of the possibility of such damages arising from any defect or error in this manual or product. -
Page 4: General Safety Requirements
All applicable rules and regulations for safe operation of lasers must be known and applied while installing and operating PowerXP. The customer is solely responsible for laser safety while using PowerXP as a standalone device or integrated into system. The customer must consider protective measures. -
Page 5: Operating And Storage Conditions
film polarizer Figure 1. PowerXP operation principle. The intensity of the incident beam is varied by means of Figure 1. PowerXP operation principle. The intensity of the incident beam is varied by means of a λ/2 phase waveplate and a polarizer. -
Page 6: Package Contents
PowerXP body. λ/2 waveplate Figure 2. Disassembly of PowerXP. Adjustment microscrews circled in red. To remove the cover Figure 2. Disassembly of PowerXP. Adjustment microscrews circled in red. To remove the cover loosen two screws on each side of PowerXP (marked with yellow circle) -
Page 7: Powerxp Software Description
“Ethernet” port you should established connection by oneself considering your system’s configuration. 4.2. Computer requirements • Free USB port or RS232 port. PowerXP is compatible with USB 1.1, USB 2.0 and USB 3.0 Computer administrator rights (only for installation) • Windows XP sp3 (32-bit) •... - Page 8 Click “Next”: Select installation directory and click “Next” to begin installation:...
- Page 9 “AltOne” software requires “Microsoft.NET Framework 4 Client Profile” or higher version to be installed. Setup will offer to download it, choose “Yes” if active internet connection is available. Choose “No” to download it from www.microsoft.com/en-us/download/ details.aspx?id=17113 and install it manually. One should choose “No” if newer version of Microsoft.NET framework is unwanted, or working internet connection is not available.
-
Page 10: Program First Run
Functions of this window are described in the picture below. Figure 4. AltOne “Select Device” tab. It is displayed every time program is started. There is one device (PowerXP) attached to PC in shown screenshot. Click “Connect” to load control tabs for it. -
Page 11: Calibration" Tab
After successful connection to your device you should be automatically redirected to main control tab (Figure 5.). Figure 5. PowerXP tab. If your device is not calibrated all controls will be disabled. To calibrate your device, go to “Calibration” tab. - Page 12 Figure 6. Calibration tab. Calibration procedure: In order to correctly change the output power, the software needs to know the angle of the λ/2 waveplate’s fast axis. It can be fixed in any angle with respect to the rotator. The purpose of calibration is to fix angular offset between the λ/2 waveplate and the rotator hardware zero position.
-
Page 13: Powerxp" Tab
Enter required value field is used to manually enter value of PowerXP power. Decimal point symbol is “.” (dot), two decimal places can be used. Valid range is 0.00% ... 100.00% (when using different units of measure these values will be different). -
Page 14: Settings" Tab
4.7. “Settings” tab Figure 8. “Settings” tab. In the “Settings” tab you can: • Change controller name (up to 15 characters) Change rotation speed of the waveplate • • Change acceleration of the waveplate • Change deceleration of the waveplate •... -
Page 15: User Manual" Tab
4.8. “User Manual” tab In this tab you can comfortably read user manual of your PowerXP. Figure 9. “User manual” tab. When you enter this tab, you can maximize this window for greater readability. Also, you can zoom, print, change page and save document as if you where using “Adobe Acrobat Reader”... -
Page 16: Powerxp Controller Hardware
5.2. Controller usage FRONT VIEW The following connections are situated in the front of PowerXP controller: power jack (12 V), 26 pin D-SUB for motor, Ethernet and RS232 connectors for PowerXP (Figure 12). Figure 11. Front view of PowerXP Controller. -
Page 17: Serial And Ethernet Communication
TOP VIEW There are two buttons in the top of the PowerXP controller: MIN and MAX. • MIN (-) – while holding turns the waveplate to a minimum attenuation MAX (+) – while holding turns the waveplate to a maximum attenuation •... -
Page 18: Ethernet Protocol Description
COM-port parameters are fixed on the controller-side: Speed: 115200 baud Frame size: 8 bits Stop-bits: 1 bits Parity: none Flow control: none Byte receive timeout: 400 ms *USB port simulates COM port on a PC. All the commands are the same for all communication protocols (see “6.4 Controller Commands”). - Page 19 Both controller and PC have an IO buffer. Received commands and command data are processed once and then removed from buffer. Each command consists of 6-byte identifier and optionally a data section followed by its 2-byte CRC. Data can be transmitted in both directions, from PC to the controller and vice versa.
- Page 20 Device calculate CRC, using this procedure ( C ): uint16_t myCRC16_CCITT_CRC(uint16_t *crc, uint8_t c) uint8_t i; uint16_t cc; cc = ( (uint16_t ) c ) << 8; for ( i=0; i<8; i++ ) If (( (*crc) ^ cc ) & 0x8000) (*crc) = ((*crc) <<...
-
Page 21: Controller Commands
6.4 Controller Commands Movement Commands Return Command Data values Description Notes “hom” none 0xAA or Start the homing pro- (0x686F6D) 0x01 (OK cedure. or NOTOK) “rad” 0xAA or Move to absolute mi- Woks only when device is (0x726164) “Homed”. bytes 0x01 cro step position x. - Page 22 Return Command Data values* Description Notes “pw “ none 16 bytes Show serial number of (0x707720) (char) a device. “n “ none 17 bytes Show name of a de- (0x6E2020) (char) vice. “v “ none 5 bytes Show firmware version (0x762020) (char) of a device.
-
Page 23: Main Dimensions
R.Andrulionis Designed by: One Controller Scale Size UAB ALTECHNA Mokslininkų st. 6A R.Andrulionis One Controller Figure 14. Main dimensions and mounting options of PowerXP Controller. Weight Sheet Part No 08412 Vilnius, Lithuania UAB ALTECHNA Mokslininkų st. 6A OneC-1.0 One Controller... - Page 24 Tel. +370 5 272 5738 Fax +370 5 272 3704 info@altechna.com Mokslininku st. 6A Vilnius, Lithuania www.altechna.com...
