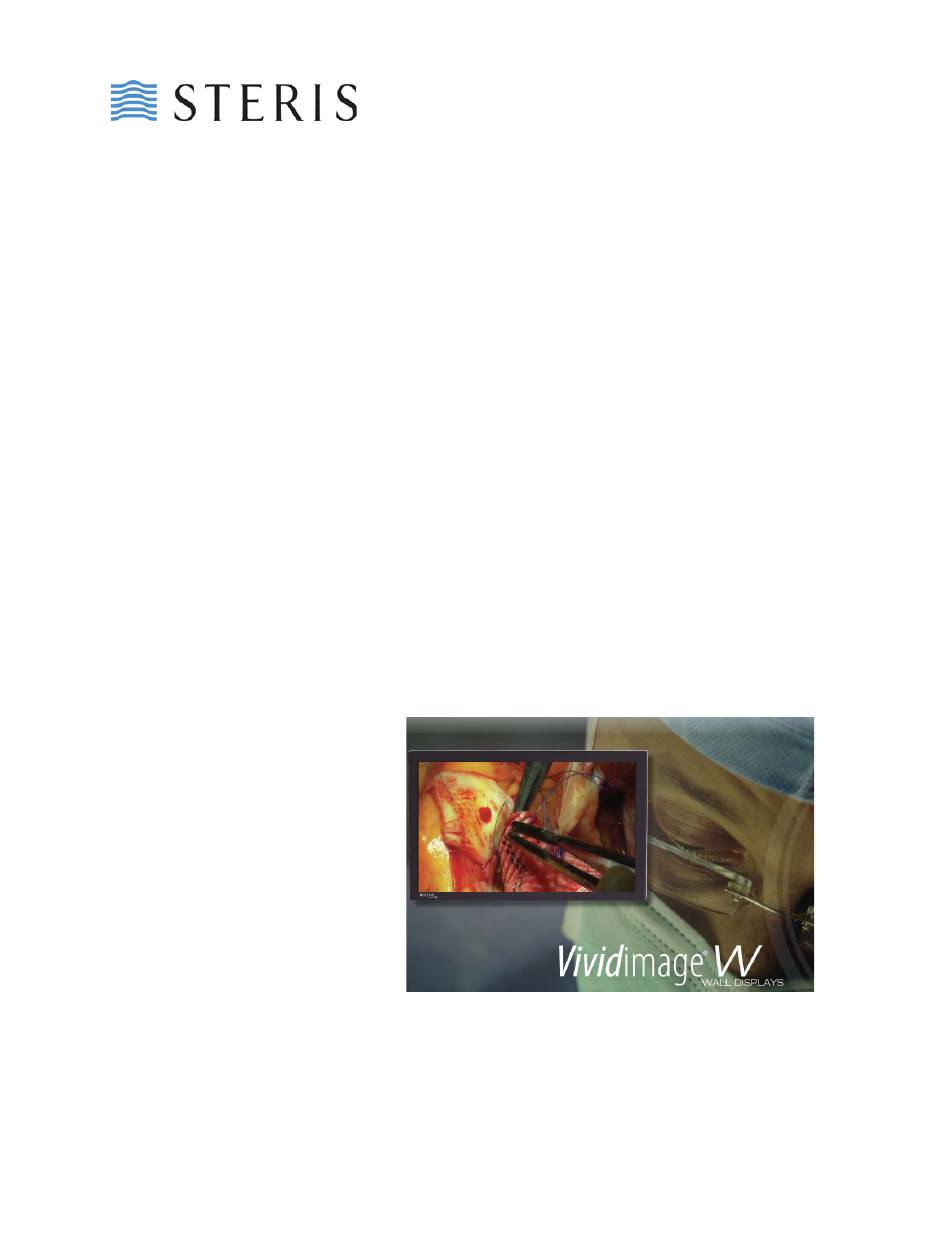

- Page 1 Vividimage W 4K ® OPERATION MANUAL ® RLM65MG4K2 Vividimage W 4K UHD Wall Display RLM65MG4K3 OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 1 of 18...
-
Page 2: Notice For Users
These devices are classified as Class A Equipment: RLM65MG4K2 and RLM65MG4K3 For a complete list of current certifications, please refer to the Specifications page of this manual. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 2 of 18... - Page 3 Authentication sign of Standard Inspection Bureau for U.S.A. Complies with cTÜVus (ANSI/AAMI ES60601-1, CAN/CSA C22.2 No.60601-1) We hereby declare that the equipment specified above conforms to the technical standards as specified in the PSB. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 3 of 18...
-
Page 4: Table Of Contents
Ergo Design Features ......................17 Intelligent Power Manager System ..................17 Multiple Frequency Technology .................... 17 Full Screen Capability ......................17 Wide Viewing Angle Technology ..................17 Gamma ..........................17 OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 4 of 18... -
Page 5: Tips And Safety Precautions
1 DisplayPort Cable Notes: - Retain the carton and packing material for transporting the monitor. Mounting - Always follow mounting instructions to avoid physical injury and/or damage to the monitor. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 5 of 18... - Page 6 The equipment should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the equipment should be observed to verify normal operation in the configuration in which it will be used. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 6 of 18...
-
Page 7: Setting Up The Display
Step 7: Turn on the computer. For further adjustments, refer to “OSD (On Screen Display) Menu” on page 11. If you have any questions, please refer to “Troubleshooting” on page 15. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 7 of 18... -
Page 8: Display Overview
Displays the OSD menu, If the OSD menu isn’t displayed. Exits the OSD menu, if the OSD main menu is displayed. Returns to the OSD main menu, if a submenu is displayed. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 8 of 18... -
Page 9: Display I/O Ports
Transmit Data Data Terminal Ready No connection Signal Ground Ground No connection Data Set Ready No connection Ready to Send No connection Clear to Send No connection Ring Indicator OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 9 of 18... - Page 10 Here are specifications for the RS232 port: Specification Value Baud 115200 Data Bits Parity none Stop Bits Flow Control none OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 10 of 18...
-
Page 11: Osd (On Screen Display) Menu
RGB Offset- This adjusts the bias of the color, which increases the proportion of that color. Sharpness Adjust the image to look sharper or softer. This option can’t be selected when the resolution is 3840 x 2160. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 11 of 18... -
Page 12: System Information
Choose the language for the OSD from one of the following: English, Simplified Chinese, French, German, Italian, Spanish, Japanese or Svenska (Swedish). OSD Timer Turn off the OSD menu automatically when it hasn’t been used for 10, 20, 30, 40, 60, or 120 seconds. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 12 of 18... -
Page 13: Tools
Color Temp Sharpness Display Address Set Sets display address number Zoom Up Turn ON/OFF full screen function. Uniformity Switch uniformity function. This makes the brightness consistent on the panel. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 13 of 18... -
Page 14: Monitor Care
Monitor Care Cleaning the Monitor STERIS Wall Displays are intended for use outside of the surgical field but may be exposed to infectious materials. Wall Displays should be disinfected and cleaned in accordance to Hospital policy and using manufacturer’s prescribed cleaners. -
Page 15: Troubleshooting
Change the brightness of the display. • If a camera is the video source, perform a white balance and check the camera’s iris control. See camera’s operating manual for instructions LED OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 15 of 18... -
Page 16: Specifications
1490 mm (W) x 888 mm (H) x 115.94 mm (D) Dimensions and Net Weight 49.8 kg (with glass, without stand) Weight Package Weight 59 kg (with glass, without stand) Product Lifetime Two Years OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 16 of 18... -
Page 17: Features
The internal circuitry automatically converts 8-bit data from the PC to 10-bit and back to 8-bit, producing smooth transition. Gamma can be set by using preset values or creating a custom setting. OPM3401 Rev. B CONFIDENTIAL © 2022 Copyright STERIS 17 of 18... - Page 18 5960 Heisley Road Mentor, OH 44236 503 Canal Blvd. Richmond, CA 94804 ® Vividimage is a registered trademark of STERIS. Manufactured by Optik View http://www.optikview.com The Linden Group Corp. 2-B Wing Drive Cedar Knolls, NJ 07927...
