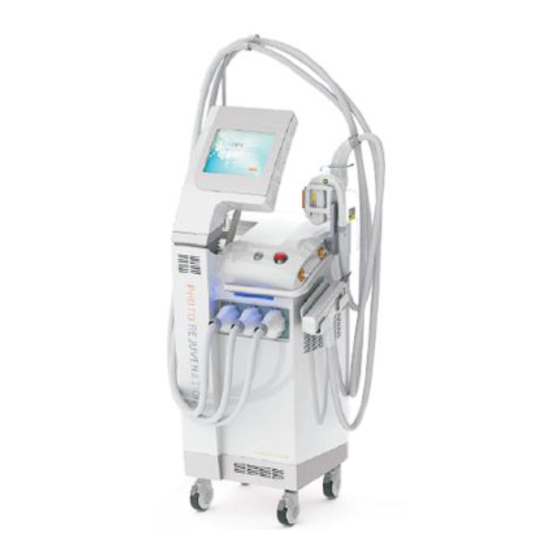

Body Life EPL500 Manual

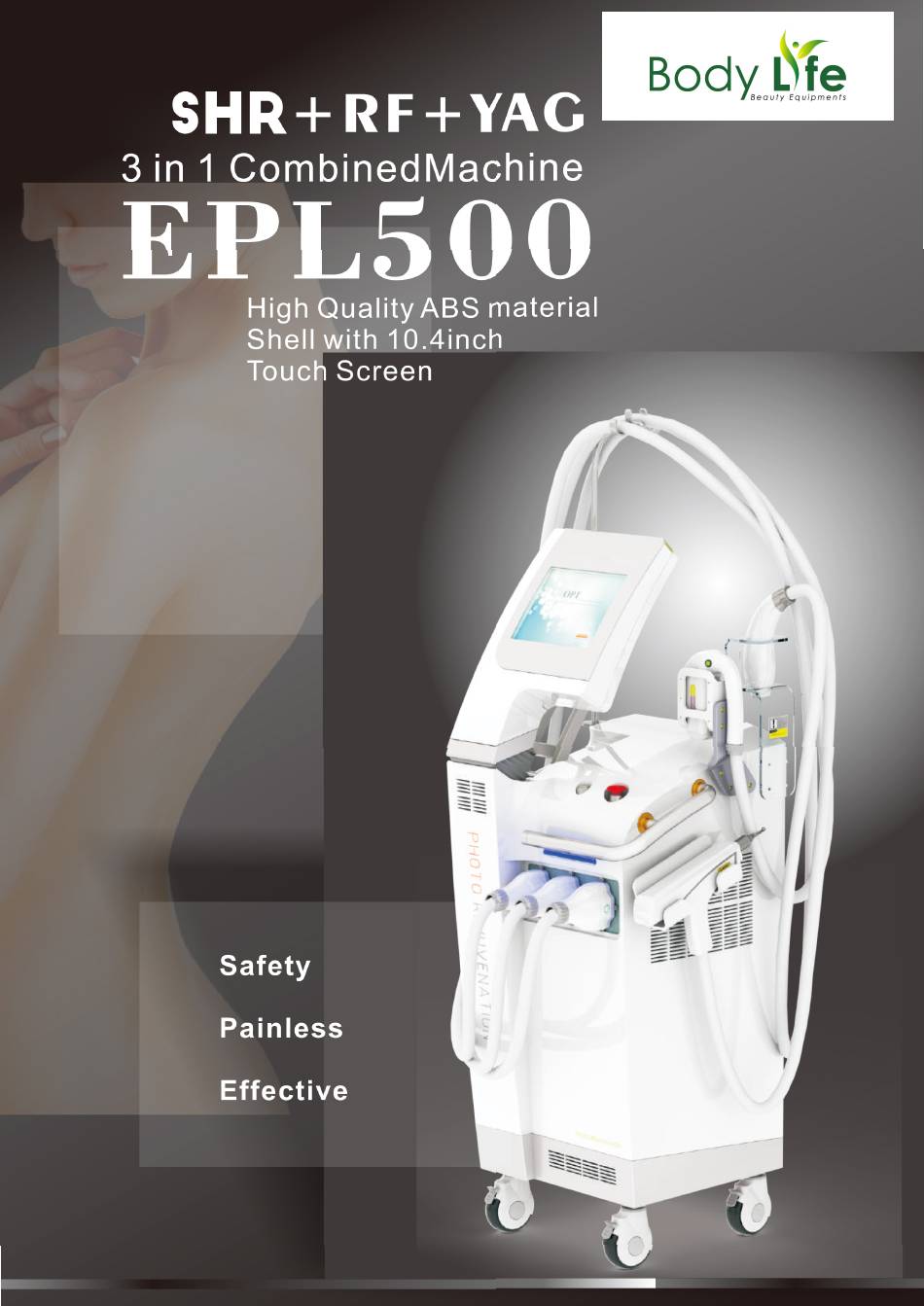

Shr+rf + yag 3 in 1 combined machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPL500 and is the answer not in the manual?

Questions and answers

Related Manuals for Body Life EPL500

Summary of Contents for Body Life EPL500

  • Page 2 Different Angle We can supply three colors as followed or as you wish...

  • Page 3: Table Of Contents

    Contents Part 1. Machine Introduction 1.1. Machine Structure 1.2. Treatment Theory 1.3. Application 1.4. Specification Part 2. Using Notice 2.1. Safety Notice 2.2. Taboos Part3 Machine Operation 3.1. Operation Notice 3.1.1. Notice During Treatment 3.1.2. Notice For Treatment 3.2. Operation Procedures 3.2.1.

  • Page 4: Part 1. Machine Introduction

    Part 1. Machine Introduction 1.1. Machine Structure Screen Fractional RF OPT SHR Head Yag Headpiece Emergency Button Fans Power Cable CHNT Relay Water Level Window...

  • Page 5: Treatment Theory

    1.2. Treatment Theory IPL can emit high engery light, which can reach the derma layer , it can be absorbed selectively by the tissue pigmentation and hemoglobin of vascular, it can make the pigmentation and the expansion capillaries break and explode. Also, this light can break the hair follicle, and stop the hair grow , also, it can stimulate the collagen regrow and make the skin rejuvenation .

  • Page 6: Specification

    1.4. Specification stand: HR 640nm SR 560nm VR 590nm SHR IPL Headpiece PR 530nm AR 480nm------950nm wavelength Wavelength (Spectrum) Energy Density (Fluence) 1-50J/cm² Spot Size Standard: 15x50mm²; Optional: 12x30mm²; 10×50mm² IPL Pulse Repetition Rate 1-10Hz Nd Yag Laser Frequency Nd Yag Laser Wavelength Standard: 1064nm and 532nm tips Optional: Black Baby tip Yag Laser Energy...

  • Page 7: Part 2. Using Notice

    Part 2. Using Notice 2.1. Safety Notice When you received the machine ,please read the below items carefully before using: 1.When you received the machine,please don't turn on it immediately ,because we design a inner cooling chiller, which need to adapt different country's climate after long transportation,so we suggest clients wait one day, then adding distilled waterand operate machine again, which is good for machine.

  • Page 8: Part3 Machine Operation

    Part3 Machine Operation 3.1. Operation Notice 3.1.1. Notice During Treatment Notice 1 Anytime please do not look at the laser directly. Direct laser will lead to irreversible blind.Therefore, the operator must be careful in operation. The object surface is able to reflect light,especially the smooth metal or glass.

  • Page 9: Notice For Treatment

    Notice 4 Yag laser head ---for tattoo removal pigmentation removal IPL headpiece ---for Hair removal Skin rejuvenation Ice Cool RF Headpiece ---for Wrinkle removal stretch marks removal 3.1.2. Notice For Treatment A. Notices for treatment on skin: 1). Face treatment----Treat the face wholly than parts of them because the effectiveness is more evident.

  • Page 10: Operation Procedures

    B. Notice for treatment on hair removal: 1). Shave the hair off of the treatment place before treating. 2). Daub the gum on the treatment place smoothly (about the thickness of 1.5mm), immediately operate after daub the gum. (Please keep gum in the cold store before use) 3).

  • Page 11: Notice After Treatment

    3rd Apply cooling gel 4th Ware glasses and googgles 5th Adjsuting suitable parameters 6th Doing treatment 3.3. Notice After Treatment 1. People who are pregnant woman, allergic to light can‘t be treatment by light.The open wound can’t be treated by light. 2.
  • Page 12 Language Interface:English & Germany (Other Language Will Received Customized) Then will enter into the next“ Language ” interface automaticly, shown as below: Here press the language (flag),then will enter into next operation interface, shown as below:...

  • Page 13: Shr Treatment Mode

    In this interface, we can choose different working mode: SHR, OPT, RFF, Yag and Background setting. SHR for super hair removal OPT for different IPL treatment items RFF for female/male treatmnt area Yag for tattoo removal etc And can enter into background Setting and adjust suitable parameter.
  • Page 14 In this interface, we can choose different treatment parameter according to our needs. can be adjusted from 1—50J/CM² ( energy must be adjusted from low to high) according to the customer's physical condition d uring the treatment. Handle refrigeration adjusted range:1—5，make max cooling level as 5 befre doing treatment, and make cooling off before turn off the machine.

  • Page 15: Opt Treatment Mode

    normal water level. the uncharged statethe, the charged state，can work as usual. 3.4.2. OPT Treatment Mode Press , then will enter into OPT treatment mode, show as below: Here can choose different treatment item according to different filters, choose one treatment item,then will enter into next interface, show as below: (Here we take hair removal treatment for example)

  • Page 16: Rff Treatment Mode

    Here we can adjust different treatment parameter according to different patient`s physical condition.Then press start treatment. 3.4.3. RF Treatment Mode Press the button: ,we will enter as below : Then choose for the female or male , press the button to adjust its time and energy.

  • Page 17: Yag Treatment Mode

    3.4.4. YAG Treatment Mode Press the button: ,we will enter as below : Then you can press one of the button to adjust the time, energy, frequency as your request.

  • Page 18: Background Setting

    3.4.5. Background Setting Press the button: , then will enter into backgroud, shown as below: Before delivery. we set all parameters as ‘5' 3.5. Course Of Treatment,Symptoms,Effect Hair removal: Course : a course of 28 days / times:4-6 times, 2-3 times had a significant effect Thick hair : 3 times treatment Valuables hair : 5 times treatment Treatment time : legs: 1.5 hours, arms: 1.5 hours, armpit: 30 minutes...
  • Page 19 Hair removal: Course of three weeks / times: 4-6 times,2-3 times had a significant effect Treatment time: face: about 30 minutes Symptoms: Reddish Effect: the skin is delicate, white, fine pores Rejuvenation: Remove acne: 1-2 for 3 weeks / times 4-6 times 2-3 times had a significant effect Symptoms: redness (cold spray, ice) Preoperative: Deep Cleansing Acne Removal:...

  • Page 20: Part4 Maintenace

    Part4 Maintenace 1. No stress on the Screen, prevent from breaking up. 2. Keep the filters and probe clean,do not let the cooling gel enter into probe.We suggest you slightly clean the filters' wafer after each treatment with soft and clean paper towel,if it's very dirty on its wafer, please Dip the paper towel in a little dehydrated alcohol.then clean it.
  • Page 21 Part 5. Warranty All products are strictly tested before sale. 1.During the guarantee period, we will repair the machine by free if the maltifunction is caused by the quality of our product. 2. The standard of operation and environment should comply with the product specification.
  • Page 22 Before&After Before Before Before Before Spot treatment& Acne Treatment Spider Vein&Vascular Hair Removal Skin rejuvenation After After After After Meet with you, beacause of beauty!
