Summary of Contents for Body Life V-shade AnchorFree V12

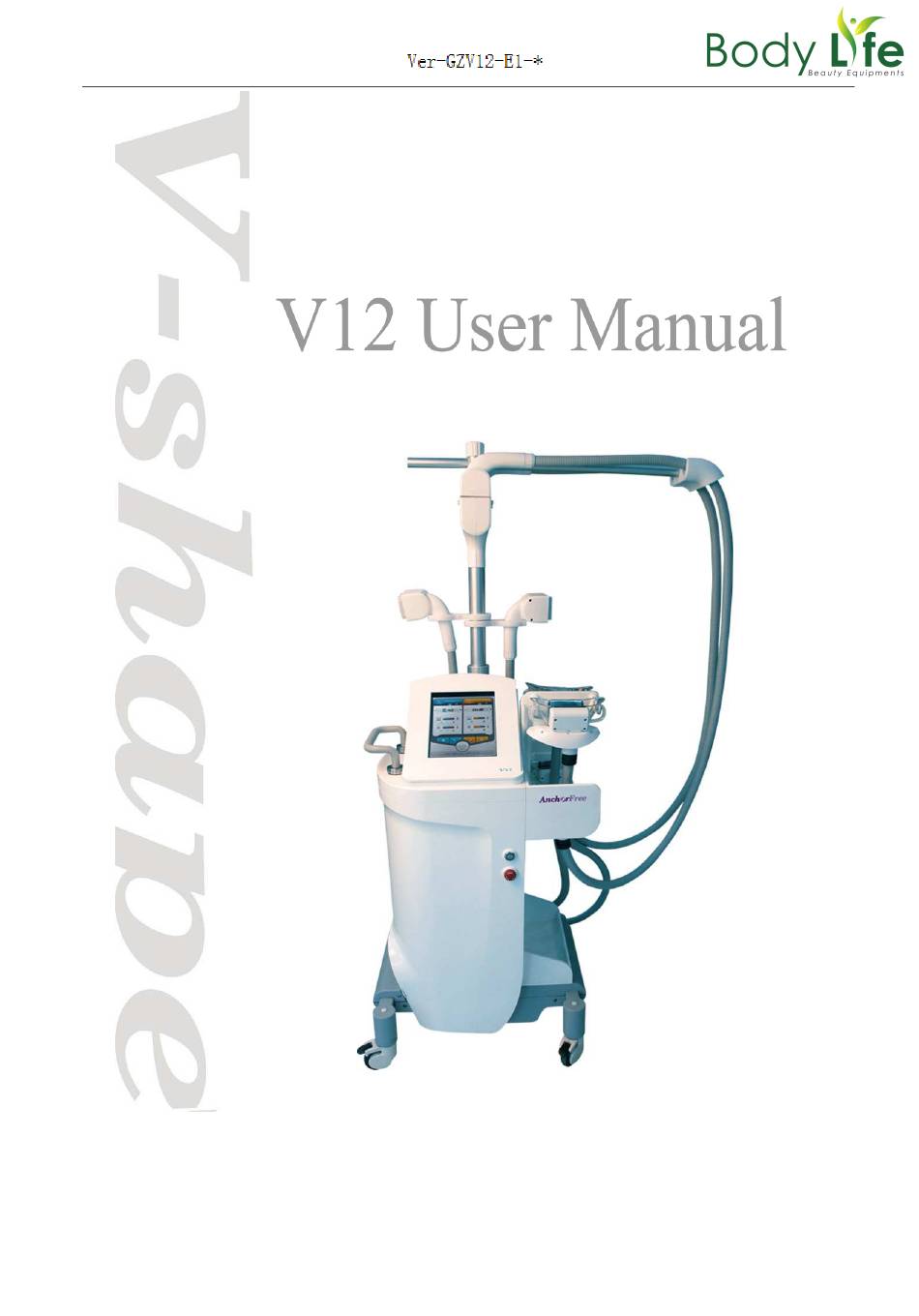

  • Page 1 1 / 40...

  • Page 2: Table Of Contents

    Content Chapter 1Introduction………….…..………………………….………………….………5 1.1 Parts…......................6 1.2 Handpiece…………………………………………………………………………………..……7 1.2.1 168 Handpiece………………………………………………………………………………..7 1.2.2 108 Handpiece…………………………………………………………………......8 1.3 Technical Specification……………………………………………………………………….…9 1.4 Parameters of Handpiece……………………………………………………………………..….9 1.5 Working Conditions………………………………………………………………………….…10 Chapter 2 Safety………………………………………………………………………………..…...11 2.1 Optic Safety…………………………………………………………………………….….……11 2.2 Safety Signs……………………………………………………………………………….…….11 Chapter 3 Operation……………………………………………………………………………..….12 3.1 Install Host Output……………………………………………………………..……..……….12 3.2 Disassemble Host Output……………………………………………………………..………...13 3.3 Stand 1………………………………………………………………………………………….13 3.4 Install Handpiece and Change Handpiece……………………………………………….……..14 3.5 Install Earth Line……………………………………………………………………………….17...
  • Page 3 4.1 Add Water and Change Water in Time………………………………………………………….32 4.2 Change Filter of Equipment…………………………………………………………………….32 4.3 Change Filter of Handpiece……………………………………………………………..….…..34 4.4 Move the Equipment…………………………………………………………………….….…..34 4.5 Troubleshooting………………………………………………………………………….….….35 Chapter 5 Clinical Guide……………………………………………………………………….…..38 5.1 Working Mechanism……………………………………………………………………….…...38 5.2 Applications………………………………………………………………………………….…38 5.3 Customer Contraindications……………………………………………………………………38 5.4 Treatment Course……………………………………………………………………………….38 5.5 Customer's Feeling during Treatment…………………………………………………………..38 5.6 Treatment Skills………………………………………………………………………………...39 5.7 Treatment Part…………………………………………………………………………………..39 5.8 Notes after Treatment…………………………………………………………………………...39...
  • Page 4 Beijing Anchorfree Technology Co., Ltd. was established in 2003, which is a government-supported high-tech company. In 2008, we took part in China Chamber of International Commerce (CCOIC) and serve as an honorary member. Since its inception, the company has been adhering to the "integrity, pragmatic; innovative, progressive" business philosophy, insisting on "Professional, Exceptional"...

  • Page 5: Chapter 1Introduction

    Chapter 1 Introduction This chapter is a general illustration. Screw Working handpiece connector Stand 1 Host output Standby handpiece connector Handpiece stand 2 Handpiece stand 3 Power switch Emergency switch Fuse Electricity breaker Water level Power supply Fill water/Drain water Air exhaust Earth line connector 5 / 40...

  • Page 6: Parts

    1.1 Parts Host×1 168 handpiece×2 108 handpiece×2 Host output ×1 Stand×1 Funnel×1 Earth line×1 Power line×1 Air exhaust with a hole ×1 Filter User manual Warranty card 6 / 40...

  • Page 7: Handpiece

    1.2 Handpiece 1.2.1 168 Handpiece Refrigeration 7 levels; Vacuum 8 levels; Vacuum situation Green-----it is ON; Black-----it is OFF; Work time Countdown; Absolute value; Pilot lamp If 168 handpiece connects with left output connector, left side of host screen is blue and pilot lamp of handpiece is blue;...

  • Page 8: 108 Handpiece

    1.2.2 108 Handpiece Output connector lamp Vacuum lamp Refrigeration lamp Vacuum lamp Vacuum is ON------vacuum lamp is red; Vacuum is OFF------vacuum lamp is off Refrigeration lamp Refrigeration is ON------refrigeration lamp is red; Refrigeration is OFF------ refrigeration lamp is off Output connector lamp If 168 handpiece connects with left output connector, left side of host screen is blue and pilot lamp of handpiece is blue;...

  • Page 9: Technical Specification

    1.3 Technical Specifications Items Specifications Screen Host screen: 10.4″TFT Chromatic Touch Screen 168 handpiece screen: 1.4″ LCD screen Working mode Continuous Adjust scope 10min 90min Negative pressure scope 1. Absolute value: 100kPa -20kPa 2.Relative value: 0kPa -80kPa Vacuum levels 1 8, adjustable, the higher, the stronger Refrigeration levels 1 7, adjustable, the higher, the stronger Safety checking...

  • Page 10: Working Conditions

    Form 3 Treatment item Handpiece Treatment item 168 handpiece Stomach buttock waist, leg 108 handpiece Back stomach thigh, buttock , waist, chin, upper arm 1.5 Working Conditions Environmental temperature of operation 10ºC—30ºC; Environmental temperature for keeping the equipment -20 ºC —50ºC; Relative humidity ≤70%;...

  • Page 11: Chapter 2 Safety

    Chapter 2 Safety This chapter shows safety measures needs to be considered when you use this equipment. The operators and maintenance person shall be familiar with the safety requirements and procedures when they use the equipment. 2.1 Optic Safety 1) Be sure that rated input voltage written on the label is coincident with the supply in the location;...

  • Page 12: Chapter 3 Operation

    Chapter 3 Operation 3.1 Install Host Output Picture 1 Picture 2 Picture 3 Picture 4 12 / 40...

  • Page 13: Disassemble Host Output

    A (Picture 1) is the host output; B (Picture 2) is in the equipment; Insert A into B (Picture 3) ; Screw C ( Picture 4) 3.2 Disassemble Host Output First disassemble handpiece (refer to 3.4); Put handpiece in a safe place; Disassemble stand 1 (refer to 3.3);...

  • Page 14: Install Handpiece And Change Handpiece

    Fix screw; Put handpiece pipe back into D Disassemble: (Picture 5) First disassemble handpiece (refer to 3.4); Put handpiece in a safe place; Loosen screw; Take out stand 1 3.4 Install Handpiece and Change Handpiece Handpiece connector 168 handpiece Handpiece connector 108 handpiece 14 / 40...
  • Page 15 Handpiece connector Host output Picture 6 Hndpiece connector Unlock key Host output Picture 7 15 / 40...
  • Page 16 Picture 8 In Picture 8: A is connector of standby handpiece (not working now); B is handpiece stand 2, which is for working handpiece; C is handpiece stand 3, which is for standby handpiece (not working now) Handpiece installation: Insert working handpiece’s connector into host output until you hear the sound (Picture 6); Put working handpiece’s pipe into D (Picture 5);...

  • Page 17: Install Earth Line

    3.5 Install Earth Line Normally, you need not install the earth line; In the following situation, you have to install the earth line: 1. When you feel like needle hurt your skin during treatment; 2. There is no earth line in the power outlet; Installation: Before turning on the equipment, connect one side of the earth line with A (following picture) and connect the other side of the earth line to metal touching the earth (like water pipe, heater...
  • Page 18 Unlock key Funnel Picture 10 Sign Water Picture 11 1) Use the cap with a hole for the air exhaust (Picture 9) 2) Prepare 2.5-3L water; 3) Insert funnel into A (Picture 10) until you hear the sound; 4) Fill water; 5) When water in the pipe gets the “Water level”...

  • Page 19: Drain Water

    Normally, take the following steps to fill water: 1) Use the cap with a hole for the air exhaust (Picture 9) 2) Prepare 2.5-3L water; 3) Insert funnel into A (Picture 10) until you hear the sound; 4) Fill water; 5) When water in the pipe gets the “Water level”...

  • Page 20: Start The Equipment

    3.9 Start the Equipment 1) Install the handpiece; 2) Water is enough; 3) Connect power line; 4) Turn on electricity breaker′Push A upward″ 5) Emergency switch shall not be pressed down; 6) Press power switch; 7) System enters initialization interface (Picture 13); 8) Then system enters password interface (Picture 14);...

  • Page 21: Main Interface

    3.10 Main Interface Picture 15 Picture 16 Picture 17 21 / 40...
  • Page 22 In Picture 15: A Left side refrigeration time; B Left side handpiece type big handpiece is 168 small handpiece is 108; C Left side setting time press “+”“-” to adjust it, the scope is 10-90 minutes; D Left side vacuum level press “+”“-” to adjust it, the scope is 1-8; E Left side refrigeration level press “+”“-”...

  • Page 23: Error Noting

    O: Right side refrigeration switch◇ 1) Before clinical treatment, first turn on vacuum switches on both sides of screen; Then turn on refrigeration; 2) After clinical treatment, press right side refrigeration switch to turn off refrigeration P◇Error noting; Press this part for long time to enter error introduction interfaces (Picture 18, Picture 19 and Picture 20);...
  • Page 24 EL5 Left handle's NO.1 MOS pipe short-circuited EL6 Left handle's NO.2 MOS pipe short-circuited EL7 Left handle's NO.1 temperature sensor has connection error, broken, isn't checked EL8 Left handle's NO.2 temperature sensor has connection error, broken, isn't checked EL9 The value deviation between NO.1 and NO.2 temperature sensors is more than 1.5 degrees EL10 Left handle's NO.3 temperature sensor has connection error, broken, isn't checked EL11 Left handle's NO.4 temperature sensor has connection error, broken, isn't checked EL12 The value deviation between NO.3 and NO.4 temperature sensors is more than 1.5 degrees...

  • Page 25: Wireless Ic Card

    3.12 Wireless IC Card Three kinds of cards: key card, user card and unlock card Picture 21 Picture 22 To Issue User Card 1) Turn on the equipment, insert key card to A in Picture 21; System enters Picture 22; 2) Press “+”...
  • Page 26 Issue Unlock Card 1) Turn on the equipment, insert key card to A in Picture 21; System enters Picture 22; 2) Press key to enter Picture 23; 3) Insert blank card to A in Picture 21 and system issues unlock card automatically; Then system would note you “Issue OK!”...

  • Page 27: Make Use Of Wireless Ic Card

    3.13 Make Use of Wireless IC Card Example 1 (For agent) 1) The agent rents equipment to others and take charge according to time; 2) 14400 minutes=30 days×8 hours/day×60 minutes/hour 3) You agent could do like this◇ Turn on the equipment, insert key card to A in Picture 21; Then set time:14,400 minutes◆...

  • Page 28: Password

    3.14 Password Picture 24 1″ Turn on the equipment and system enters Picture 14; 2″ In Picture 14, press for a long time to enter Picture 24; 3″ In Picture 24, press the first and input original password; Press the second and input new password;...

  • Page 29: Treatment Procedure

    Picture 25 Picture 26 Picture 27 3.15 Treatment Procedure Take double 168 handpiece for example (customer lies on bed, time is 90 minutes)◇ 1) Install the handpiece; 2″ Fill water; 3″ Place the equipment; 4″ Turn on the equipment; 5″ Input password(original password is 123); 6″...
  • Page 30 Reduce 1~2 vacuum levels; 17) Make sure your customer do not feel discomfort and press refrigeration switches on both sides of screen; 18) When handpiece’s temperature gets to certain value, vacuum level could not be adjusted; If you want to adjust vacuum, you have to press refrigeration switch and wait until handpiece’s temperature gets to 8 degrees Centigrade (pilot lamp on handpiece will flicker);...

  • Page 31: Cryolipolysis Cloth

    Picture 30 3.16 Cryolipolysis Cloth Function of cryolipolysis cloth: To separate skin and metal of handpiece; Liquid of cloth can transfer heat Specification Size Relative handpiece Smaller handpiece ′ HV08″ 1520 15cmX20cm 3020 30cmX20cm Bigger handpiece′HV07″ The cryolipolysis cloth can only be used one time; You can order the cryolipolysis cloth from our company;...

  • Page 32: Turn Off The Equipment

    P4: Unfold the cryolipolysis cloth; P5: Tear off the membrane; P6: We use the cloth; P7: Unfold the cloth; P8: Put the cloth on the skin to be treated; P9: The cloth is finished; P10: The handpiece adsorbs the cloth. 3.17 Turn off the Equipment Press power switch on the equipment;...
  • Page 33 Take down B (in Picture 32); Install filters of equipment (Picture 33); C in Picture 35 is air pipe of air pressure sensor; Take down the white cap (Picture 35); If there is water in the air pipe, dry the water; Install the white cap again (Picture 36);...

  • Page 34: Change Filter Of Handpiece

    White cap White cap Picture 35 Picture 36 4.3 Change Filter of Handpiece After each treatment, change for a new filter; Procedure: 1) Take out the filter from handpiece (Picture 37); 2) Replace for a new filter; Picture 37 4.4 Move the Equipment 1) On the floor, hold the handle to move the equipment (Picture 38);...

  • Page 35: Troubleshooting

    4.5 Troubleshooting Form 1 ◇ ◇ ◇ ◇ Trouble Reason Troubleshoo tin g Change power switch and contact with our Power switch has trouble company Power line isn’t connected well Connect it well Equipment could not start Fuse is broken Change the fuse Change control panel and contact with our Control panel has trouble...
  • Page 36 Left handle's NO.1 temperature sensor has connection error, broken, Change TL1 temperature sensor isn't checked Left handle's NO.2 temperature sensor has connection error, broken, Change TL2 temperature sensor isn't checked The value deviation between NO.1 and NO.2 temperature sensors is Change TL1 temperature sensor and more than 1.5 degrees TL2 temperature sensor...
  • Page 37 Check the refrigeration power ER13 Cooling power isn't connected supply s lines Change handpiece panel ER14 Left side temperature of right handle is more than set value Change handpiece panel ER15 Right side temperature of right handle is more than set value Change the refrigeration chip of left ER16 Left side temperature of right handle is less than set value side...

  • Page 38: Chapter 5 Clinical Guide

    Chapter 5 Clinical Guide 5.1 Working Mechanism Triglyceride of fat will be converted for the solid (crystalline) at low temperatures; Solid triglyceride aging in advance; Normal metabolism makes aging solid triglyceride go out body; Thus human body feels light. This equipment’s main functions are vacuum absorption and refrigeration slimming function. 1.

  • Page 39: Treatment Skills

    Some customer will feel a little abdominal pain after treatment and this will last for 1~2 days 5.6 Treatment Skills 1) Pay attention to customer’s comfort before starting vacuum and refrigeration; 2) After skin is absorbed, if customer feels painful, you shall reduce vacuum level Start vacuum→...
  • Page 40 Beautician 1) This equipment adopts cryolipolysis technology. So triglyceride of fat will be converted for the solid (crystalline) at low temperatures; Solid triglyceride aging in advance; Normal metabolism makes aging solid triglyceride go out body; At last, customer gets slimming effect. So this equipment isn’t dangerous, instead, it is the safest, most effective and the right weight losing method;...
