Instruction manual
BT2000-AC / BU13-AC
Contents
1
1.2
2
3
4
1 Use

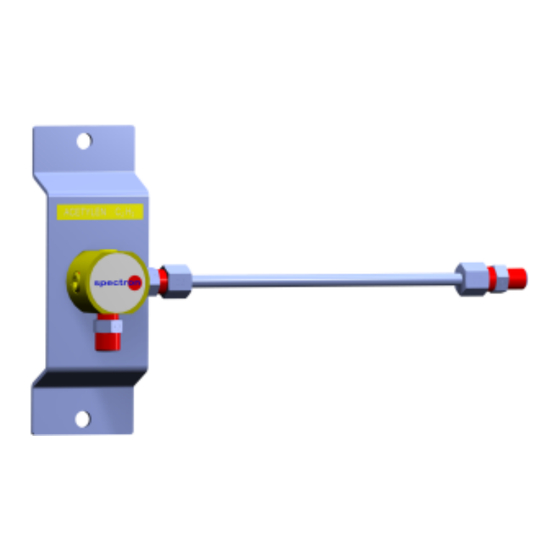

The extension is designed for use with a BT2000-AC or BU13-AC pressure control panel. It
allows the connection of further gas cylinders to an existing supply system.
All stipulations valid for the pressure control panel BT2000-AC and BU13-AC must also be
observed during operation and use of the extensions.
The extensions may only be used for the gas type acetylene.
Note
The materials and production processes used are tailored to the intended use.
All components represent the technical state of the art, comply with the recognised
engineering standards and meet the requirements of the standards and regulations applicable
in this field, in particular the acetylene regulations.
The components are manufactured with the utmost care and under clean conditions in special
workshops, where they are subject to continuous quality controls throughout the production
process.
Each complete system and its individual components are tested for correct functioning and
leak-tightness, thus ensuring compliance with the exacting Spectron quality standards.
Compliance with this instruction manual, and in particular
the safety instructions, is mandatory when handling the articles listed above.
GES_Extension-AC_0323
Extension for
Page
1
2
2
3
4
5
1
Advertisement
Table of Contents
Related Manuals for spectrotec BT2000-AC
Summary of Contents for spectrotec BT2000-AC
-
Page 1: Table Of Contents
Repairs 1 Use The extension is designed for use with a BT2000-AC or BU13-AC pressure control panel. It allows the connection of further gas cylinders to an existing supply system. All stipulations valid for the pressure control panel BT2000-AC and BU13-AC must also be observed during operation and use of the extensions. -
Page 2: Technical Data
Technical data SPECTROTEC Extensions for acetylene Max. permissible pressure P max.25 bar Materials: Distributor: brass Screw fittings and pipe: zinc-plated steel Mounting plate: stainless steel Weight: Extension DN5 1.0 kg Extension DN10 1.9 kg Connections: Shut-off unit DN5 Inlet: M16x1,5 / M24x1.5 Outlet: ¼... -
Page 3: Safety Information
2 Safety information Handling combustible gases Specialist knowledge is required when handling acetylene, and the instructions in this manual and existing regulations must be complied with. Training and regular safety training for operating personnel on the correct procedures for handling this system, combustible gases and pressurised gas vessels is mandatory and must be repeated annually. - Page 4 G 3/4"- LH (M16x1,5) Abb.2 Einseitige Erweiterung DN 10 (Maße für Erweiterung DN 5 in Klammern) Abb.3 Entspannungsstation BT 2000-AC mit beidseitiger Erweiterung DN 5 Abb.4 Entspannungsstation BT 2000-AC mit Absperreinheit und beidseitiger Erweiterung DN 5 GES_Extension-AC_0323...
-
Page 5: Installation
3 Installation Installation must be performed by personnel with the requisite expertise and who have received the appropriate training and instruction on safety engineering. All components of the shut-off unit are tested for correct functioning and leak-tightness prior to delivery. All apertures are closed off. Before commencing installation, check that connections and threads are undamaged (possibly by briefly blowing them out).
