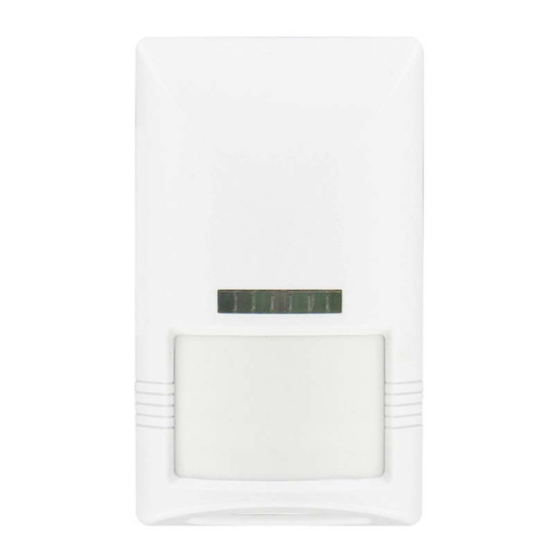

Model OSW-100 Wall Mount Occupancy Sensor
Specifications - Installation and Operating Instructions
The Model OSW-100 Wall Mount Occupancy Sensor is an infrared sensor designed
to automatically control a HVAC ventilation system. A unique dual delay processor
eliminates false triggers due to short-term occupancies. The Model OSW-100 has a
wide 110° viewing angle to capture movement up to 49.2 ft (15 m) away.
INSTALLATION
Do not install where the detector is exposed to direct sunlight or directly above
strong sources of heat.
Do not install in areas that have any obstruction (plants, large pieces of
furniture, curtains, etc.) which may block the detection.
DWYER INSTRUMENTS, LLC
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.

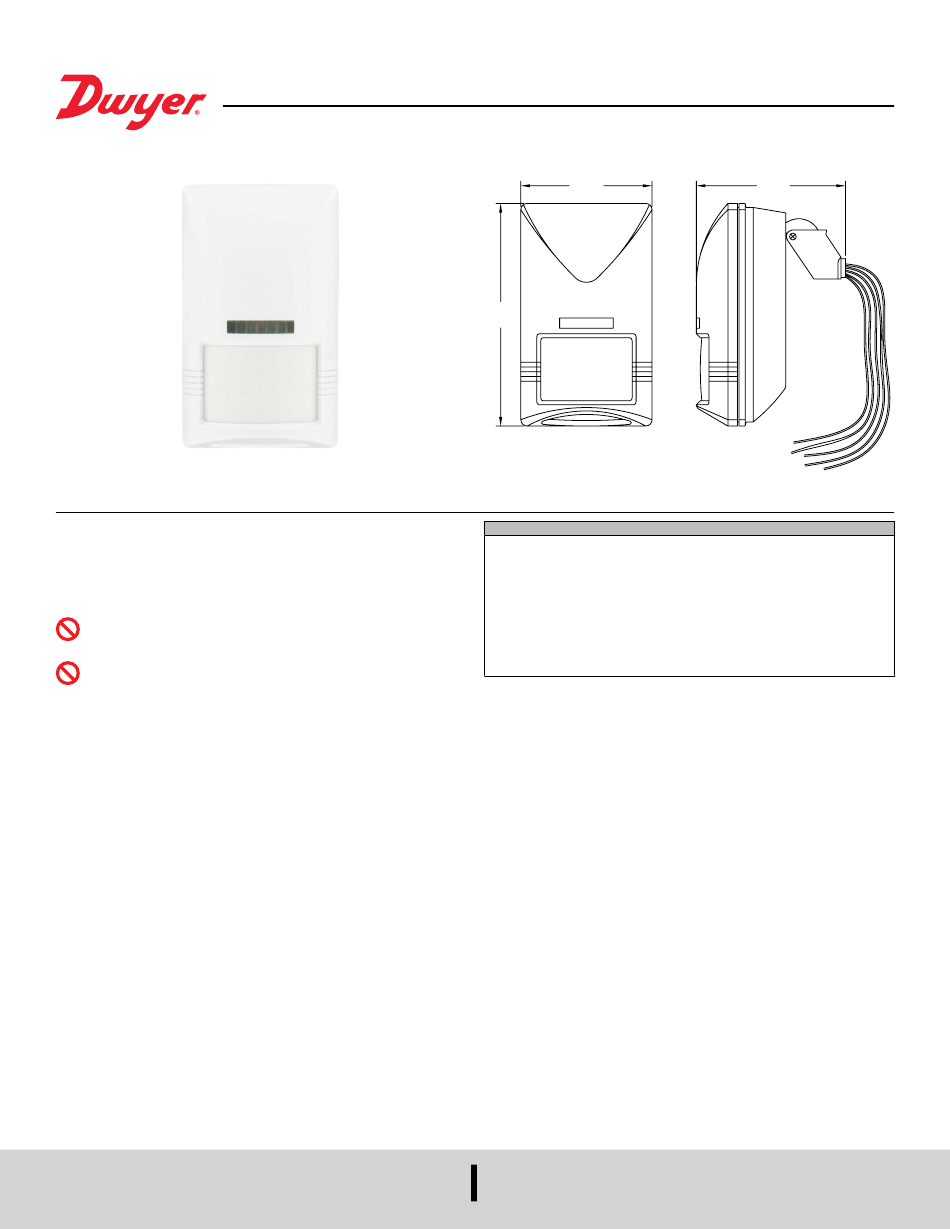

2-39/64
[66.28]
4-27/64
[112.32]
SPECIFICATIONS
Infrared Sensor: Dual Element.
Range: 49.2 ft (15 m).
Detectable Speed: 0.33 to 9.8 ft/sec (0.1 to 3.0 m/sec).
Control Output Rating: SPDT, 0.2A @ 30 VDC.
Ambient Operating Temperature: -4 to 140°F (-20 to 60°C).
Power Consumption: Standby: 5 mA, Operating: 18 mA.
Mounting Height: 5.9 to 11.8 ft (1.8 to 3.6 m).
Power Requirements: 22 to 26 VAC/DC.
Weight: 3.2 oz (90.7 g).
Compliance: CE.
Phone: 219-879-8000
Fax: 219-872-9057
Bulletin H-22-OSW
3-1/4
[82.55]
www.dwyer-inst.com
e-mail: info@dwyermail.com
