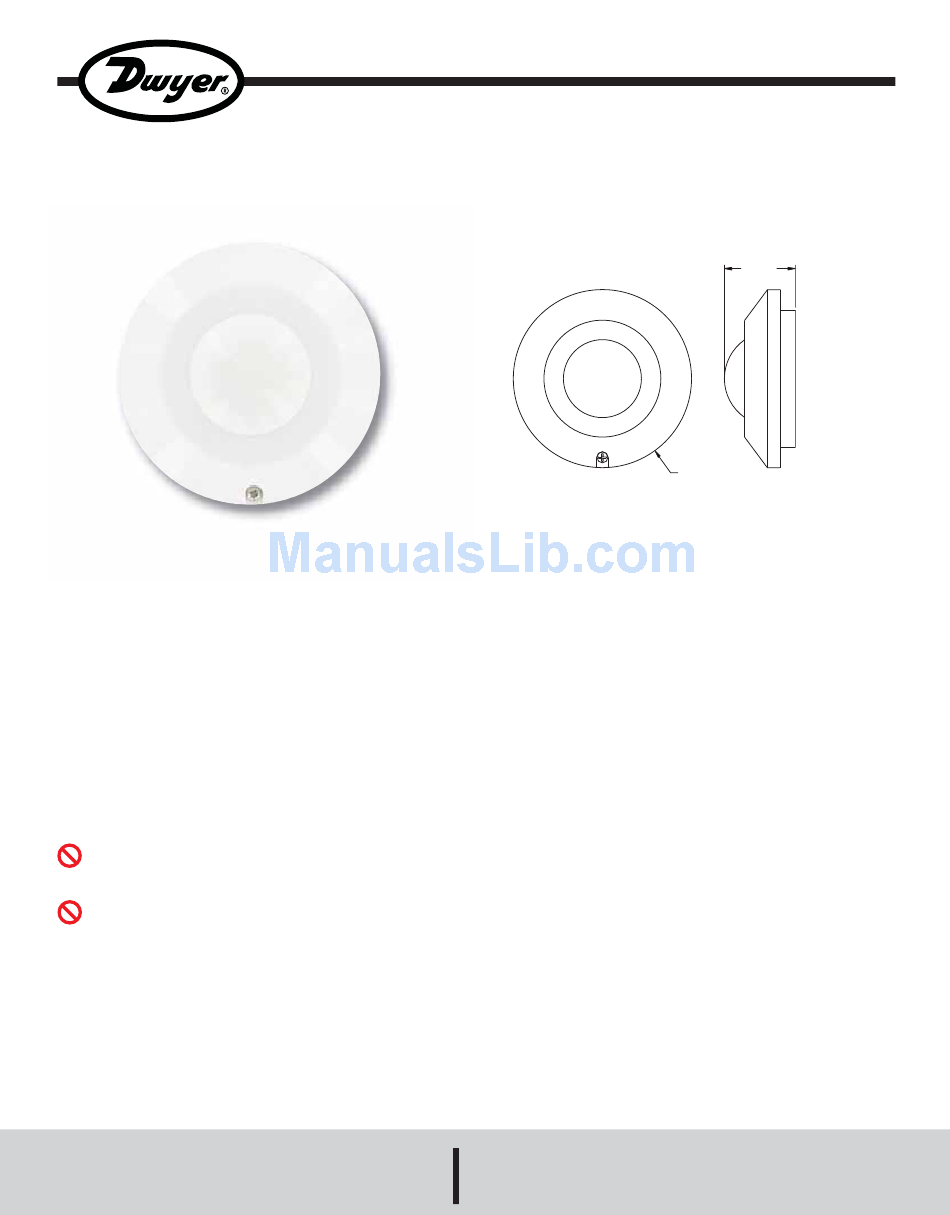

The Model OSC-200 Omnidirectional Occupancy
Sensor automatically controls a HVAC ventilation system.
A spherical Fresnel lens provides a 360° detection zone
with the use of infrared technology. The integrated dual
delay processor saves energy by eliminating false
activation due to short-term occupancies. The Model
OSC-200 is designed to be ceiling mounted.
INSTALLATION
Do not install where the detector is exposed to direct
sunlight or directly above strong sources of heat.
Do not install in areas that have any obstruction
(plants, large pieces of furniture, curtains, etc.) which
may block the detection.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.
Model OSC-200 Omnidirectional Occupancy Sensor
Specifications - Installation and Operating Instructions
Phone: 219/879-8000
Fax: 219/872-9057
SPECIFICATIONS
Infrared Sensor: Dual element.
Range: 34.4 ft (10.5 m) Diameter at 13.8 ft (4.2 m) mount
height.
Detectable Speed: 0.33 to 9.8 ft/sec (0.1 to 3.0 m/sec).
Control Output Rating: SPDT, 0.2A at 30 VDC.
Ambient Operating Temperature: -4 to 140°F (-20 to 60°C).
Power Consumption: Standby: 5 mA, Operating: 18 mA.
Mounting Height: 7.9 to 13.8 ft (2.4 to 4.2 m).
Power Requirements: 22 to 26 VAC/DC.
Weight: 2.4 oz (68 g).
Agency Approvals: CE.
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
Bulletin H-21-OSC
1-47/64
[44.05]
Ø4-11/32
[Ø110.33]
