Disney FROZEN 2, FR-677 - Bluetooth Karaoke Manual

Table of Contents

Contents

1 Important Message to Customers
2 What's Included
3 Overview
4 Installing the Batteries
5 Using AC Power
6 Using the Microphone
7 CDG Mode
8 Repeat/Program Buttons
9 Pairing Your Device Via Bluetooth
10 Voice Control Button / Voice Control App
11 USB Mode
12 AUX Mode
13 Vocal Effects
14 Troubleshooting
15 Documents / Resources
- 15.1 References
- 15.2 Download manual

Important Message to Customers

Thank you for purchasing one of our many top-quality electronic products. Please take a moment to read through these instructions to help you understand the safe and proper way to use this toy to extend its usability.
Keep these instructions for future reference as they contain important information.

CAUTION-ELECTRICALLY OPERATED PRODUCT NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. AC 100~240V, 50~60Hz 0.5 A UL LISTED.

What's Included

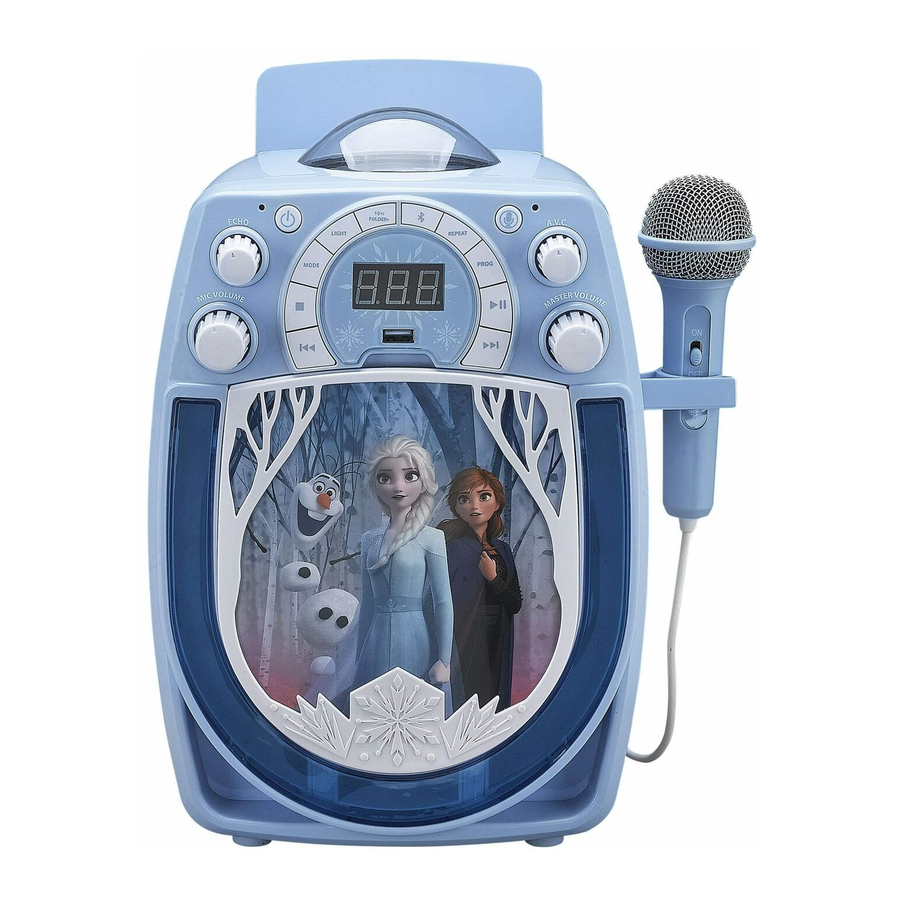

Overview

Mic Volume Rotary
Echo Effect Rotary
LED Power Indicator
Power ON/OFF
Voice Control Button
Voice Control Mic
Auto Voice Control
Master Volume Rotary
Previous Track
Stop Button
Mode Selector
Light Button
10+/Folder+
Bluetooth Pairing
Repeat Button
Program Button
Play/Pause Button
Next Track Button
CD Compartment
Microphone
Light Show LEDs
LED Display
DC Power Jack
RCA Audio/Video Jack
AUX-IN Jack
Microphone Jacks
USB Port
Phone Stand - Not Recommended for Use with Tablets

Using The Light Button:
By default, the unit will display a repeating light pattern when no music is playing.

Press to pulse to music.
Press again to turn lights OFF.
Press again to return to default setting.

Installing the Batteries

Open the battery compartment door located on the back of the unit.
Insert 6 new C batteries in the battery compartment. Make sure batteries match the + and – as indicated in the battery compartment diagram.
Replace battery compartment door.

Using AC Power

This unit also works on AC Power. Plug the small end of the power adapter (included) into the DC-IN jack on the back of the unit, and plug the power adapter into the household AC outlet.

Using the Microphone

Connect the included microphone to one of the input jacks on the back of the unit. Turn on the unit and choose Bluetooth, AUX, or CDG modes using the Mode Button.

Slide the switch on the Microphone to ON. Now you can sing along to your favorite music in either CD, Bluetooth, or AUX modes, and hear your voice through the speaker!
When not in use, slide the Microphone switch to OFF. Unlock the removable slots on the side of the unit to store your microphone, as shown in the image on the right.

CDG Mode

This unit plays CD, CDR, and CDG formats. To play a CD or CDR, turn on the unit and set the Mode Selector to CDG.

Open the disc compartment on the front of the unit and insert the disc face up. Close the compartment door.
Use the controls to play/pause, stop, or navigate tracks.

To play a CDG disc on your television:
Connect the included RCA cable (white and red connectors) to the RCA audio output jacks located at rear of the unit.
Connect the other end of the audio cable to the RCA audio input jack of a TV set.
Connect the RCA video cable (yellow connector) to the RCA video output jack located at rear of the unit.
Connect the other end of the video cable to the RCA video input jack of a TV set, and make sure your television is set to the corresponding input.
Turn on the unit and set the Mode Selector to CDG.
Insert a CDG disc into the unit and press the Play/Pause Button. Now you can follow the lyrics on the screen and sing along through the microphone!
Use the Previous Track and Next Track buttons to navigate tracks on the CDG.

Repeat/Program Buttons

To repeat a track on your CD, press the Repeat Button on the unit. The "Repeat" LED Indicator will blink. Press again, the "repeat" LED indicator will glow solid, and the unit will repeat all tracks. Press again to cancel the 'repeat all' program.

You can also program up to 20 tracks of the CD in a desired order. With CD playback stopped, press the Program Button once. The "PROG" LED indicator blinks, and the LED display shows the program number.

Press the Previous Track and Next Track Buttons to select a track number. When the desired track number is displayed, press the Program Button to confirm entry.
Repeat these steps until all desired tracks are entered. To begin programmed playback, press the Play/Pause Button. To cancel programmed playback, press the STOP button twice.

Pairing Your Device Via Bluetooth

Turn on your Bluetooth device and turn on Bluetooth mode (check in Options or Settings).

Turn on the unit and set the Mode Button to BT mode. Press and hold the Bluetooth Pairing Button for 2 seconds. A tone will sound and the LED screen will flash 'bt' as the speaker enters pairing mode.
"Karaoke 677" should appear on your device's screen. Select "Karaoke 677" to connect.
Once paired, a confirmation tone will sound and 'bt" will glow solid on the LED screen. Put your Bluetooth device in Play mode to stream audio to the speaker. Use your Bluetooth device OR the Play/Pause, Previous Track, and Next Track buttons on the unit to control audio functions.

Voice Control Button / Voice Control App

When the unit is in BT mode, you can access Siri or Google Assistant using voice commands by pressing and holding the Voice Control Button. This special feature is disabled on the unit when shipped, and requires parental consent to be activated. To start the one-time activation process, download the free "Voice Control Set Up" app on your smartphone using the App Store or Google Play.

Once downloaded and installed on your smartphone, the app will provide prompts to help you set up the Voice Control function.

USB Mode

Connect a USB flash drive to the USB port.
Make sure the Mode Button is set to USB.
When a USB drive is detected, the number of files on the USB drive will appear on the LCD display.
Use the "Forward" and "Reverse" buttons to advance through the numbers of files on the USB drive.
After pressing "Play", the automatic play-all function will activate, and songs will play in the order they were stored. • Press the "10+/Folder+" button to quickly navigate through a large number of files.

AUX Mode

To connect and amplify other audio sources (MP3 players, etc):

Turn on the unit and set the Mode Button to AUX. "AU" will glow solid on the LED screen.
Connect one end of a 3.5mm audio cable (not included) into the AUX-IN jack and the other end to the headphone jack of your audio device.
Control/navigate tracks from your audio device.

Vocal Effects

Add vocal effects while you sing! Make sure your microphone is connected to the unit and is turned ON.
Auto Voice Control Dial (For Multiplex CDG discs only): When playing a Multiplex recording, spin the dial to replace the lead singer's voice with your own!

Echo Effect Rotary Dial:
Spin the dial as you sing to add an echo effect to your voice!

Troubleshooting

If the unit is experiencing a fuzzy or distorted sound, check the batteries. They are most likely weak and need to be replaced with 6 brand new "C" batteries.

Questions or Comments
For questions or comments regarding this or other eKids products, please call our toll-free number: 1-888-TOP-TOYS
Please also visit our website: www.ekids.com
