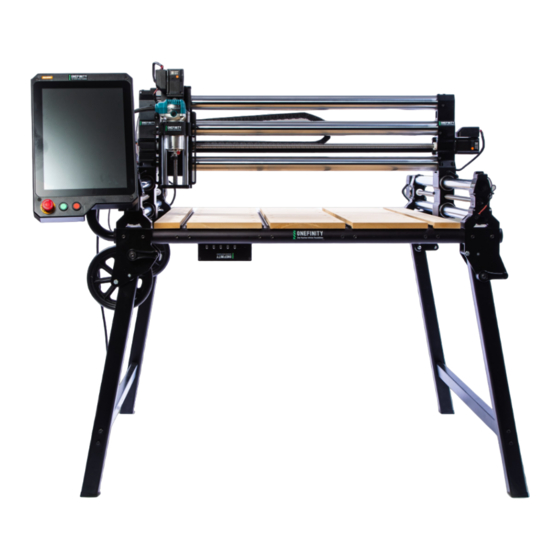

ONEFINITY Elite Series Installation And Operation Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and Operation Instructions
Onefinity Elite Series

Advertisement

Table of Contents
loading

Related Manuals for ONEFINITY Elite Series

Summary of Contents for ONEFINITY Elite Series

  • Page 1 Installation and Operation Instructions Onefinity Elite Series...

  • Page 2: Table Of Contents

    Contents General Notes Safety Rules Description Anatomy of the Onefinity Anatomy of the Z-Slider Anatomy of the Power Supply Controller Anatomy of the Onefinity MASSO 14-15 Features and Specifications Elite Machine Dimensions Assembling Instructions 18-33 Homing the Elite Onefinity Spindle/Router Installation...

  • Page 3: General Notes

    General Notes This manual serves to familiarize you with your Onefinity CNC machine and provide all neces- sary information required to operate the machine safely and professionally. This manual is applicable for the Onefinity Elite Foreman, Journeyman and Woodworker hereafter referred to as Onefinity or Onefinity Elite.

  • Page 4: Safety Rules

    Safety Rules General Instructions: These operating instructions explain the Onefinity and the correct handling of the CNC sys- tem. Please read these operating instructions and accompanying documents in their entirety before commissioning of the system in order to become familiar with the characteristics and the operation of the product.
  • Page 5 Protective Measures: The Onefinity has been constructed for advanced users and is only to be operated by techni- cally skilled persons above the age of 16. The CNC gantry milling system as well as associated tools, small parts and electrical components are to be stored outside the reach of children.
  • Page 6 Safety Rules Use of the Power Tool: Caution: Do not alter or misuse the tool. Any alteration or modification is a misuse and may result in serious personal injury. Caution: Disconnect the plug from the power source before you make any adjust- ments, change accessories, or store the tool.
  • Page 7 Safety Rules Care of the Power Tool: NOTICE: Maintain the tools. Check for misalignment or binding of moving parts, breakage of parts and any other conditions that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Page 8 Safety Rules Emergency Stop Switch : The emergency stop is located on the top of the Controller housing. In order to be able to inter- vene at all times, the emergency stop has to be positioned in a suitable place. The controller must be located so it can be reached from any possible operator position.
  • Page 9 Workspace: The workspace needs to provide enough space around the Onefinity CNC for the machine to work comfortably and to be able to fully use its traveling paths. Additionally, a safe distance to possibly nearby positioned machines is to be maintained. The location of the machine as well as the workplace surrounding the machine has to be sufficiently illuminated.

  • Page 10: Description

    The machine table may consist of any solid flat surface big enough to mount the Rails and Controller. The Onefinity consists of the following, sometimes optional, components: - Onefinity Elite Foreman, Journeyman or Woodworker; - Onefinity MASSO electronic control unit, Power Supply Controller in a separate aluminum housing, Z-Slider, Wire harness and Hardware.

  • Page 11: Anatomy Of The Onefinity

    Anatomy of the Onefinity Important note: To learn all of the Onefinity MASSO controllers capabilities please visit: https://www.masso.com.au/ High Torque Closed Loop Stepper Motors Inferred Homing Sensors Powerful Controller Chrome Plated, Hardened Steel Linear Shafts No Computer Required Precision, Fast Travel...

  • Page 12: Anatomy Of The Z-Slider

    Anatomy of the Z-Slider High Torque NEMA 23 Motors Ball Screw Coupler Ball Screw High Load Linear Bearings Spindle Mount Chrome Plated, Hardened Steel Linear Shafts Suckit Dust Boot Mount Precision, Fast Travel Ball Screws...

  • Page 13: Anatomy Of The Power Supply Controller

    Anatomy of the Power Supply Controller ON/OFF Switch Onefinity MASSO Power Connector Stepper Motor Stepper Motor Driver Fuses Connector Ports (3 Amp) Auto On - Off Auto On - Off Main Power Cord Vacuum Socket Router Socket Plug Vacuum Power Cord...

  • Page 14: Anatomy Of The Onefinity Masso

    Anatomy of the Onefinity MASSO Mounting Bracket Onefinity MASSO Power Connector X-Axis Connector Port Tool Setter Connector Port XYZ Probe Connector Port Laser Y-Axis Connector Port Connector Port Z-Axis B-Axis Spindle Connector Port Connector Port Connector...
  • Page 15 Anatomy of the Onefinity MASSO 15” Touch Display Cover Screws Controlled Cycle Start Cycle Stop Stop Switch Switch Switch...

  • Page 16: Features And Specifications

    General Disclaimer: While Onefinity has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, system/component/options availability are all subject to change without notice. Product design specifications and colours are subject to change without notice and may vary from those shown. Errors and omissions excepted. Images displayed...

  • Page 17: Elite Machine Dimensions

    Elite Woodworker Dimensions General Disclaimer: While Onefinity has made every effort at the time of publication to ensure the accuracy of the infor- mation provided herein, product specifications, configurations, system/component/options availability are all subject to change without notice. Product design specifications and colours are subject to change without notice and may vary from those shown.

  • Page 18: Assembling Instructions

    Assembly Instructions The following instructions detail how to install your Onefinity Elite CNC Machine. Please read these entire instructions carefully. If you have any problems or do not understand these instructions please contact us at support@onefinitycnc.com or 1-888 717 4242 for further assistance.
  • Page 19 Assembly Instructions Foreman Version Only: When installing your Foreman onto a surface other than the QCW, the supplied riser blocks (Red Arrows) are required. The Foreman Riser Blocks ensure that the Y-Axis Gantry blocks clear the table surface.
  • Page 20 Assembly Instructions Step 3: Place the X-Rail (Green Arrow) on the Y-Rails Gantry Blocks (Blue Arrows) Step 4: Adjust Y-Rails (Red Arrows) until the Gantry Assemblies (Green Arrows) are flush with X-Rail Ends (Blue Arrows). Note: It is important that these parts are flush with each other before fastening together.
  • Page 21 Assembly Instructions Step 5: Once you have ensured the Y-Axis Gantry Blocks and X-Axis Rails Ends are flush, fasten the front of the X-Rail to the Y-Axis using four (4) X-Rail Mounting Screws (Blue Arrows) Step 6: Fasten the back of the X-Rail to the Y-Axis using the remaining four (4) X-Rail Mount- ing Screws (Green Arrows)
  • Page 22 Assembly Instructions Step 7: Fasten the front of the Y-Rails to your table using only one (1) Y-Rail Mounting Screw per side (Green Arrow). You will use the remaining screws later. Step 8: Place the Controller beside the machine as shown below.
  • Page 23 Wire Connector Mount (Green Arrows) Using the supplied Display Mounting Bolts (qty: 4) and Nuts (qty:2), mount the Display Mount to the front of the Rail End closest to the Controller. Step 10: Attach Onefinity MASSO Touch onto Display Mount.
  • Page 24 Stiffy Block to attached the Z-Slider. Step 12: Square the Z-Slider to your table then tighten the Z-Slider Mounting Screws. Next, plug the Z-Sliders stepper motor into the Curly Cable. Congratulations, you have finished assembling your new Onefinity CNC Machine!
  • Page 25 Assembly Instructions (Wiring) Step 13: It’s now time to wire up your machine. We’ll start with the connectors located on the X-Rail. Plug the wire that’s labelled Z2 into the socket labelled Z2 (Green Arrow). Plug the wire that’s labelled X2 into the socket labelled X2 (Yellow Arrow). Connect the Homing Sensor Wire to the Homing Sensor (Red Arrow).
  • Page 26 Assembly Instructions (Wiring) Step 14: We’ll now connect the Left Y-Rail Wires. Plug the wire that’s labelled Z1 into the socket labelled Z1 (Green Arrow). Plug the wire that’s labelled X1 into the socket labelled X1 (Yellow Arrow). Plug the wire that’s labelled Y1 into the socket labelled Y1 (Blue Arrow). Connect the Homing Sensor Wire to the Homing Sensor (Red Arrow).
  • Page 27 Assembly Instructions (Wiring) Step 14: We’ll now connect the Right Y-Rail Wires. Plug the wire that’s labelled B1 into the socket labelled B1 (Blue Arrow). Connect the Homing Sensor Wire to the Homing Sensor (Red Arrow).
  • Page 28 Assembly Instructions (Wiring) Step 15: We’ll now connect the Z-20 Z-Slider Wires. Connect the wires labelled Z2 (Red Arrow). Connect the Homing Sensor Wire to the Homing Sensor (Yellow Arrow).
  • Page 29 Assembly Instructions (Wiring) Step 16: We’ll now connect the wires to the Onefinity MASSO Touch. Plug the wire that’s labelled Y into the socket labelled Y (Pink Arrow). Plug the wire that’s labelled B into the socket labelled B (Grey Arrow).
  • Page 30 On the Z1 Wire, Plug the 2 pin connector into the forth socket (Pink Arrow). Plug the Power Supply Power Cord into the AC Power socket (Red Arrow). Congratulations, you have now completed wiring your Onefinity Elite CNC You can now power up your machine by pressing the power button (Purple Arrow).
  • Page 31 Assembly Instructions Step 18: After you have powered up your Elite Onefinity you’ll need to release the Controlled Stop Button. Start by simultaneously twisting and pulling out on the Controlled Stop Button clockwise to release it to the “ON” position (Green Arrow).
  • Page 32 Assembly Instructions Step 20: After moving the X-Axis all the way to the back, fasten the back of the Y-Rails to your table using only one (1) Y-Rail Mounting Screw per side (Green Arrow). Step 21: We will now jog the Y-Axis to bring the X-Rail back to the front of the machine. Press and hold the Y–...
  • Page 33 Assembly Instructions Step 22: With the X-Rail all the way to the front again, finish fastening the Y-Rails to the table using another three (3) Y-Rail Mounting screws per side (Green Arrow). Step 23: Repeat steps 19 and 20 to jog the Y-Axis until the X-Rail is to the back of the machine again.

  • Page 34: Homing The Elite Onefinity

    Homing the Elite Onefinity The Onefinity Elite machine come standard with infrared Homing sensors. To home the machine, first make sure you are on the F2 or F3 screens and that no alarms such as E-Stop are flashing on the screen.

  • Page 35: Spindle/Router Installation

    Spindle/Router Installation Step 1: Insert the Router or Spindle into the Spindle Mount. Tighten the Spindle Mount Screws (Green Arrows) Step 2: Unscrew the Cable Clamp and install the router cable (Red Arrow). Disconnect the Z-Axis Stepper Motor and Homing Switch Wires to prevent damage.
  • Page 36 Spindle/Router Installation Step 3: Unscrew the Drag Chain Bracket from the Gantry Block (Pink Arrows). Using a small flat head screw driver, remove the Drag Chain from The Drag Chain Bracket (Green Arrow) Step 4: Using the small flat head screw driver, open up the Drag Chain (Red Arrow)
  • Page 37 Spindle/Router Installation Step 5: Insert the Router/Spindle Cable and closed the Drag Chain. Step 6: With the Router/Spindle Cable installed into the Drag Chain, re-connect the Drag Chain Mount to the Drag Chain. Once the Drag Chain and Drag Chain Mount are re- connected, re-attach the Drag Chain Mount to the Gantry Block.
  • Page 38 Spidle connection and set-up. If you have purchased a Spindle Kit that is pre-wired, simply connector your GX12 Spidle Cable to the Onefinity Elite GX12 Connector (White Arrow). Note: Ensure your VFD is plug into a separate circuit to your Onefinity Elite Machine to prevent an overload.

  • Page 39: Wasteboard

    A wasteboard is a disposable work surface that will be mounted atop your Onefinity’s perma- nent table. Having a wasteboard is an important part of a CNC and makes using the Onefinity more enjoyable as leveling and workholding becomes easier. The wasteboard is typically MDF and protects the table from damage as well as being an expendable surface.

  • Page 40: Maintenance

    Maintenance To ensure your Onefinity CNC machine lasts for many years it is important that regular maintenance be performed. For step-by-step instructional videos please visit our Youtube page at: https://www.youtube.com/onefinitycnc. Note: It is highly recommended that you view our maintenance video prior to performing maintenance on your Onefinity CNC.
  • Page 41 Transporting the Onefinity CNC: When transporting the Onefinity, it is important to do so in pieces. It is best to move each axis rail one at a time due to weight. It’s best practice to use the original shipping box and its foam to transport the machine to another location.

  • Page 42: Loading A Program

    Step 3: Click on the F6 Tab (Red Arrow) The F6 screen is where you will select files from your USB Flash drive and load them on the Onefinity MASSO.. Step 4: Double click the file you wish to load or select the file (Pink Arrow) and press the Load key (Yellow Arrow) Note: Once the file is loaded it will draw the toolpaths onto the screen for you to view.

  • Page 43: Running G-Code

    Running G-Code To run your G-Code you need to be on the F2 screen. Tap the F2 Tab (Red Arrow) This is the Run screen where you run your GCode files and monitor progress. When you enter this screen you will be prompted for the User Password.
  • Page 44 Running G-Code Additional Button Functions: Feedhold Esc = Pause (Pink Arrow) MDI = Manually enter gcode (Blue Arrow) Coolant Flood= Turn on Vacuum (Yellow Arrow) Go To Work Origin = Go to XY zero (Purple Arrow) Jump to Line = Selects which line of gcode to start the program (Grey Arrow) Spindle Stop = Turn off spindle/router (Red Arrow) Spindle CW = Turn on spindle/router (Green Arrow) The empty box next to the Spindle CW is where you can enter your spindle speed.

  • Page 45: Resuming Program Or Jump To Line

    Next Tap the Start from line button (Green Arrow) and Onefinity MASSO will process the gcode file up to the line number entered by you. When done Onefinity MASSO will calculate all the machining parameters from the gcode file as below: Calculate the X, Y, and Z-axis positions to resume machining.

  • Page 46: Wi-Fi Connectivity

    Wi-Fi Connectivity Onefinity MASSO comes with Wi-Fi hardware and software to easily connect your Onefinity MASSO controller to a Wi-Fi network. With the MASSO Link software, users can easily view the real-time status of your MASSO control- ler remotely, transfer gcode files to MASSO from your PC, get tool data from MASSO's memory and generate tools list document that can be used with CAM software.
  • Page 47 Wi-Fi Connectivity On the F2 - Program & MDI screen, click the Wi-Fi icon (Red Arrow) Enter the name (SSID) and security key of the Wi-Fi network that you would like to connect to. If you would like to use dynamic IP as provided by your Wi-Fi network then leave the Fixed IP Address un-ticked and click the Connect button.

  • Page 48: Jogging

    To jog your machine you must be on the F3 Jogging screen (Green Arrow) There are two ways to Jog your Onefinity Elite machine. Step Mode or Continuous Mode Step Mode (Blue Arrow): Allow you to jog in increments. Four (4) increments are available...

  • Page 49: Feed Rate Override

    Feed Rate Override Feed rate override function allows the feed rate to be changed during machining. The range is from 20% to 100% of the specified feedrate and the current feedrate percentage is shown on the screen. Information: This feature is available on the F2 & F3 Screens. Information: Feed rate override ranges from 20% to 100% of the specified Feed rate.

  • Page 50: Using The Xyz Touch Probe

    (Red Arrow) on the F3 page. The dialog box shown below will appear Understanding the Probing Dialog Box: The Onefinity XYZ Touch Probe is de- signed for Outside Probing. Tap the Inside/ Outside button (Orange Arrow) until the red dots are shown on the outside of the yellow box.
  • Page 51 Using the XYZ Touch Probe Z-Axis Probing To start probing the Z-Axis, first ensure that your bit is positioned over the XYZ Touch Probe. Once your bit is over top of the probe press the center square (Yellow Arrow) This will start the Z axis probing down at the rate specified in the Probing Feedrate box (Red Arrow) When the probe finds the surface the Z axis DRO coordinate will be updated with the value...
  • Page 52 Using the XYZ Touch Probe XY Probing To start probing the XY-Axis, first ensure that your bit is positioned on the correct side of the Probe illustrated by the red dots and ensure the bit is low enough to contact the Probe. Once your bit is in the correct position press the top right Probe button (Yellow Arrow) This will start the XY Probing sequence.

  • Page 53: F1 Screen

    F1 Screen The F1 Screen is where you can customize your Onefinity Elite machine settings. On this page you can modify things like, units of measure (Metric or Imperial), adjust rapid speeds, fine tune probing, etc. We do not recommended you change any settings on this screen unless you fully...

  • Page 54: F2 Screen

    F2 Screen The F2 Screen is the Run screen. This is where you run your GCode files and monitor progress. The empty box next to the Spindle CW (Pink Arrow) is where you can enter your spindle speed. Type the desired speed into the box and press enter. Click the Axis Zero buttons to zero out an Axis DRO (Yellow Arrows) More info on the F2 Screen can be found on page 39-45 of this manual...

  • Page 55: F3 Screen

    F3 Screen The F3 Screen is the Jog Screen. From this screen you can Home, Jog and probe your machine. You can access MASSO probing functions by pressing the probing button on screen (Red Arrow) To Home, double tap the Home Button (Yellow Arrow) Please refer to page 44 for detailed info on jogging.

  • Page 56: F4 Screen

    F4 Screen The F4 Screen is the Tool Table, work offset screen and Park location. This is where tool data is stored for each tool including it's name, Z offset and Tool Diameter. Work offsets G54 to G59 are stored in the Work offset table. These values are automatically stored when you zero your axis and you can also manually change them if needed.

  • Page 57: F5 Screen

    F5 Screen The Onefinity Elite has a built in wizard that will allow you to create basic Gcode files. The wizards are intended for the most basic of jobs and CAM software is recommended.

  • Page 58: F6 Screen

    The F6 Screen is where you will select files from your USB Flash drive and load them into your Onefinity Elite Machine. Please note, a usb flash drive MUST be plugged in at all times, as it’s the only storage the Masso has.

  • Page 59: Onefinity Warranty Policy

    Onefinity Warranty Policy ONEFINITY ELITE 12-MONTH LIMITED WARRANTY PLEASE SEE REVERSE SIDE FOR DETAILS...
  • Page 60 2. Verification and Return. Such repair or replacement is subject to verification of the defect or malfunction and proof of purchase as confirmed by showing the Onefinity CNC model number on the original dated sales receipt. If we conclude shipping is necessary we will provide you with a ship- ping label.

  • Page 61: Notes

    General Disclaimer: While Onefinity has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, system/component/options availability are all subject to change without notice. Product design specifications and colours are subject to change without notice and may vary from those shown. Errors and omissions excepted. Images displayed...

  • Page 62: Contact Us

    General Disclaimer: While Onefinity has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, system/component/options availability are all subject to change without notice. Product design specifications and colours are subject to change without notice and may vary from those shown. Errors and omissions excepted. Images displayed...
