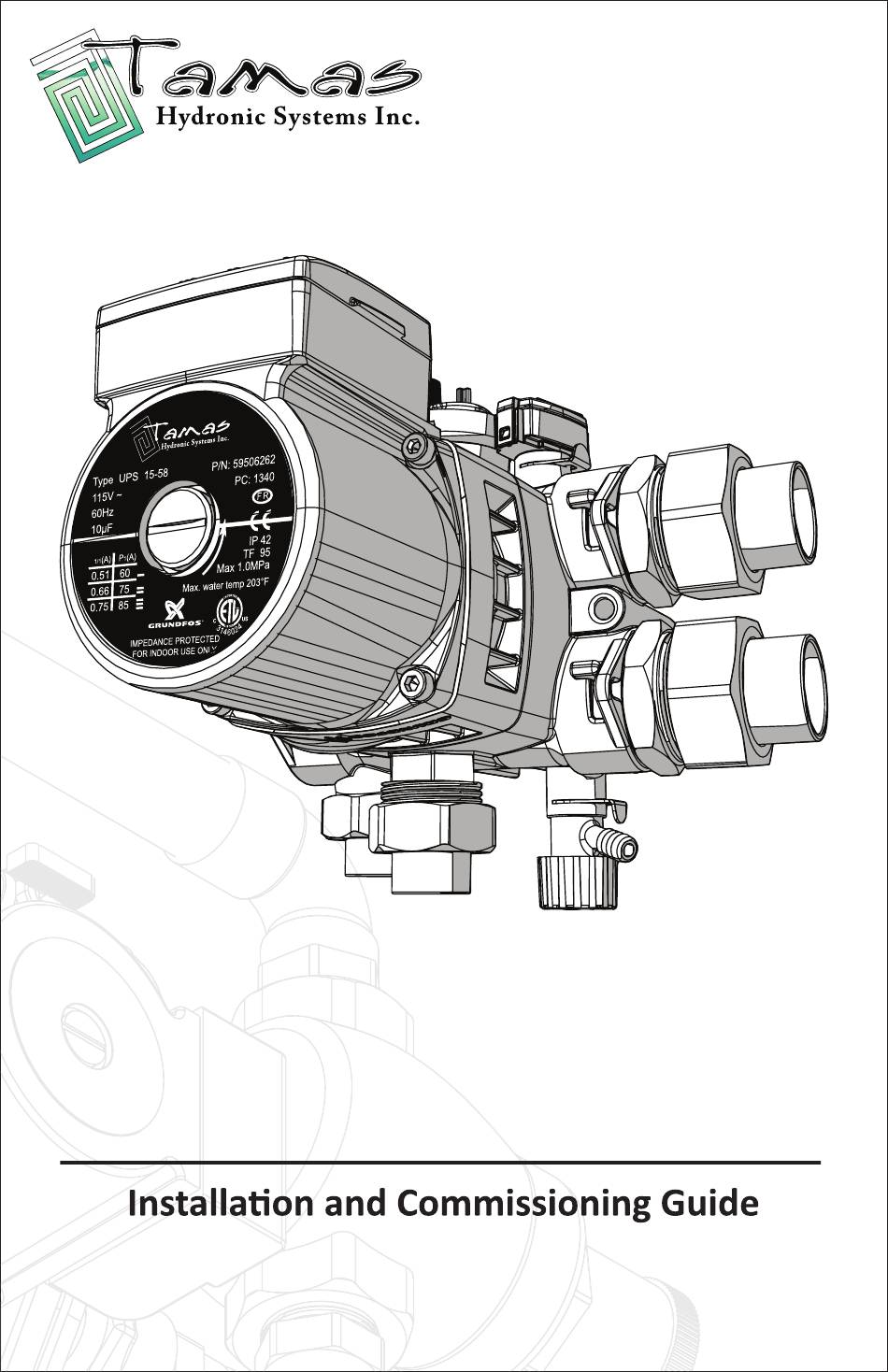

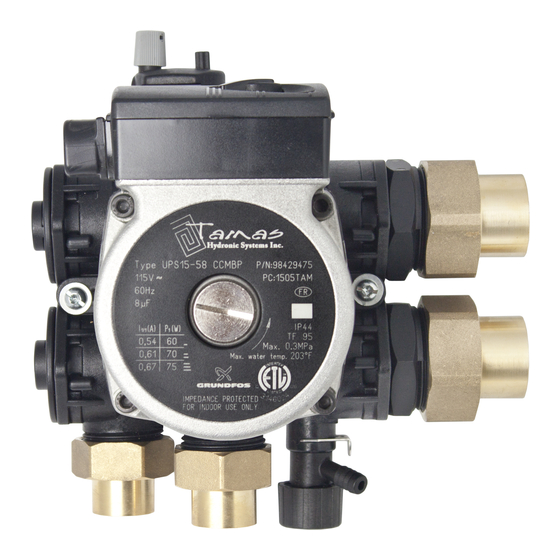

- Page 1 Z-Block Hydronic Zoning Block...
-
Page 2: Table Of Contents
Table of Contents Overview, Options and Dimensions Assembly Application Examples Included Components Optional Accessories Flow Diagram Technical Data Limited Warranty Z-Block Manual version 1.1 Page 2... - Page 3 You must use optional part #025- 0005 180° End Connection for creating primary/secondary piping arrangement. Injection pump controller not supplied. 3) As a boiler pump in a Tamas multiple zone application. You must use optional part #025-0005 180° End Connection for creating primary/secondary piping arrangement.
-
Page 4: Assembly
Assembly The Tamas Z-Block is designed to be assembled and installed in multiple configurations and orientations. This will serve as a guide for the assembly of the components, but does not cover all of the applications this unit can be used in. - Page 5 3) Purge/Drain Valve Installation FIG 4. FIG 3. Push Valve Clip End cap can into also house Z-Block to secure sensor fitting. the Valve. (part #025-0015) Insert Purge Valve into Z-Block. (part #025-0014) Note: Depending on orientation, the Purge Valve can be installed in one of the End Caps.
-
Page 6: Application Examples
Application Examples 1) Vertical Multi-Zone Installation FIG 6. The Tamas Z-Block can be installed in a vertical Configuration. When installing multiple Z-Block modules vertically, the optional Vent Fitting (part # 025-0021) must be used for the air vent or thermistor sensor. This fitting is a 1/8”... - Page 7 Horizontal Installation with Injection Pump and 180° End Connection (#025-0005). When using the Z-Block as an Injection Pump, connect the Z-Block to the manifold in an inverted position. In this position, the Pump Head (part #025-0010) will need to be inverted 180° as well. To do this, remove the 4 pump bolts and turn the pump head to the desired location.
-
Page 8: Included Components
Purge Valve Clip #025-0015 Pump Power 1” Nut Cable Pump Mount #006-0306 #025-0020 Screws #025-0022 ” Nut 3/4” Tail 1” Nut Seal #006-0325 Piece #006-0310 #006-0311 ” Nut Seal 1” Tail Piece #006-0332 #006-0331 Z-Block Manual version 1.1 Page 8... -
Page 9: Optional Accessories
#025-0049 #025-0021 #006-0313 Optional 22 x 32mm Slip Adapter Fitting #006-0315 Accessories available from Tamas Hydronic Systems INC. Phone: +1(403) 279 0020 Fax: +1 (403) 279 0747 Email: info@tamashydronic.com Flow Diagram Type UPS 15-58 P/N: 59506262 115V ~ PC: 1340 60Hz 10µF... -
Page 10: Technical Data
Thrust bearing Metal Impregnated Carbon Check Valve ACETAL with 302 Stainless Steel Spring & Nitrile Rubber Seals Pump housing (Volute) Composite O’Ring and gaskets EP (Ethylene Propylene Rubber) Impeller PES Composite (30% Glass Filled) Z-Block Manual version 1.1 Page 10... -
Page 11: Limited Warranty
Tamas Hydronic Systems Inc. warrants each of its products to be free from defects in workmanship and materials under normal use and service for a period of 24 months from date of purchase from a Tamas Hydronic Systems inc. authorized Dealer. - Page 12 Central Processing Unit 1-10V ENTER CPU-0550 Injection Mixing Accessories available from Tamas Hydronic Systems INC. Service Information: Tamas Hydronic Systems Inc. 4516 - 112 Avenue SE, Calgary, AB T2C 2K2 Telephone: (403)279-0020 • Fax: (403)279-0747 Email: info@tamashydronic.com • Web: tamashydronic.com...
