SWAN ANALYTISCHE INSTRUMENTE AG, CH-8340 Hinwil
TEL. +41 44 943 63 00, FAX +41 44 943 63 01 e-mail swan@swan.ch
USB Interface installation
Installation Instruction for
USB Interface
A-81.420.040
AMI Option USB Interface V1
A-81.420.042
AMI Option USB Interface V2
Analytical Instruments
108498 - 05/16
and
1
Advertisement
Related Manuals for Swan Analytical Instruments AMI Option USB Interface V1
Summary of Contents for Swan Analytical Instruments AMI Option USB Interface V1
- Page 1 Installation Instruction for USB Interface A-81.420.040 AMI Option USB Interface V1 A-81.420.042 AMI Option USB Interface V2 Analytical Instruments SWAN ANALYTISCHE INSTRUMENTE AG, CH-8340 Hinwil TEL. +41 44 943 63 00, FAX +41 44 943 63 01 e-mail swan@swan.ch USB Interface installation...
- Page 2 Compatibility CAUTION Risk of damage to the equipment Please observe the compatibility notes below. Interface version Function Requirement A-81.420.040 USB support Mainboard 2.0 to 2.4 Firmware V5.00 or higher A-81.420.042 USB support Mainboard 2.0 or higher Firmware V5.00 or higher USB support &...
-
Page 3: Usb Interface Installation

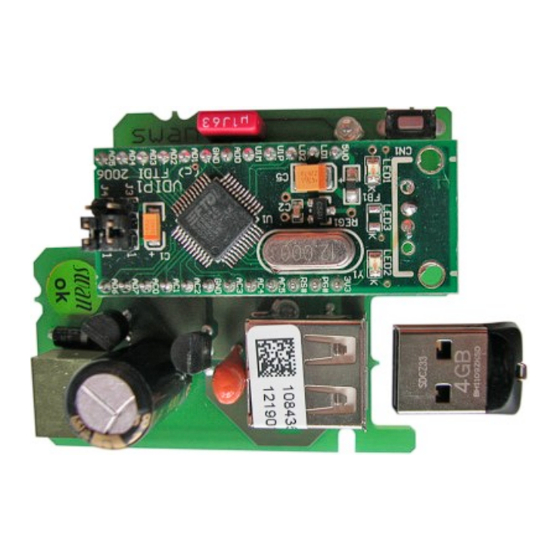

USB Interface Installation Overview CAUTION Observe precautions for handling electrostatic discharge sen- sitive devices. The installation kit contains an USB interface [A] and a USB stick [B]. It can be used: • as data logger • for firmware upload A USB interface PCB B USB stick USB Interface installation 108498 - 05/16... - Page 4 Install the USB Interface WARNING! Electrical shock hazard Before opening the AMI Transmitter switch power off. A USB interface B USB stick C USB socket D Plug E Transmitter housing F Mainboard To install the USB interface proceed as follows: 1.
- Page 5 After the USB stick has been installed, in the firmware the following two menus are added: Main Menu Operation Main Menu Installation Logger 4.3.1 Interface 5.5.1 Log Interval 30 Minutes Protocol USB Stick Clear Logger Eject USB Stick <Enter> Status LEDs and Operating Elements A –...
- Page 6 Remove the USB Stick To remove the USB stick proceed as follows: Variant 1 with power interruption (recommended) 1. Navigate to menu Operation/Logger. 2. Select <Eject USB stick> and press <Enter> (Details see p. 7, Read Logger Data). 3. Switch power off. 4.
-
Page 7: Load Firmware
Read Logger Data To read the logger data from the USB stick proceed as follows: 1. Remove the USB stick from the AMI transmitter. Proceed according to section “Remove USB Stick, Variant 1” on page 6. Note: The function <Eject USB stick> has the following effect: •... - Page 8 12. Press <Enter> again. The Firmware update starts. This method updates the firmware of the AMI instrument with all files with the exten- sion <.a37> or <.hex> that are located in the root directory of the USB stick. After the update has been finished: 13.
