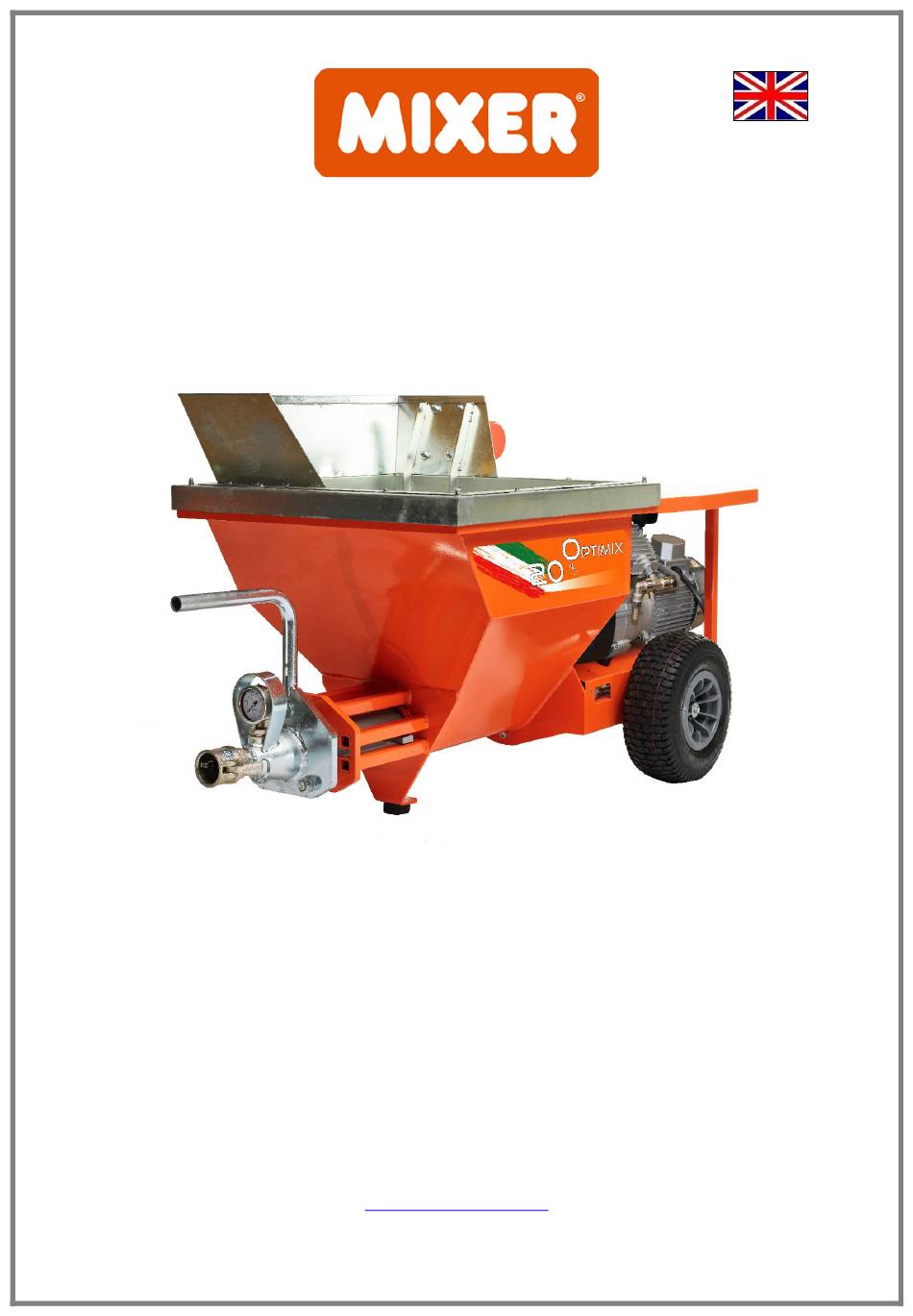

- Page 1 MIXING PUMP OPTIMIX 20 MANUAL INSTRUCTIONS ORIGINAL INSTRUCTIONS Revision n…… of …… MIXER TECHNOLOGY srl Via dei Carabinieri, 45, 36040 Torri di Quartesolo (VI) Italy www.mixersrl.com...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS ................8 RESIDUAL RISKS ..................9 FORESEEABLE INCORRECT USE ..............9 DIASSEMBLING OF ROTOR AND MIXER ............. 10 CONNECTION OF THE MATERIAL CONVEYING TUBE ........10 CONNECTION OF THE AIR TUBE TO THE MACHINE ........11 CONNECTION OF THE MATERIAL CONVEYING AND AIR TUBES TO THE SPRAYING NOZZLE ................. -
Page 3: Ce Marking
RESERVED RIGHTS The contents on this manual can’t be reproduced and disclosed (totally or partially) without written authorization of the Manufacturer. Instruction Manual Optimix 10 Mixer Technology srl pag.3... -
Page 4: Technical Data
Weighted noise pressure level “A”: 92 dB (*) depending on the characteristics of the product used, the stator, the rotor, the diameter and length of the hose, the spraying height and the ambient temperature. DIMENSIONS OF THE MACHINE Instruction Manual Optimix 20 Mixer Technology srl pag.4... -
Page 5: Parts List
Front support foot Hopper protection grid Stator/rotor group Vibrating screen motor Stator fixing rods (rotor) Main power supply plug Material outlet connection Electrical panel Material outlet pressure gauge General electric switch Movement handle Motor Instruction Manual Optimix 20 Mixer Technology srl pag.5... -
Page 6: Packaging
2) With a proper tool, cut the straps paying attention not to be hit by the same due to their elasticity; 3) With the help of a second operator, let the machine carefully get off the pallet lifting it using the proper handles positioned on the machine sides; Instruction Manual Optimix 20 Mixer Technology srl pag.6... -
Page 7: Use Destination
These products, deemed polluting and hazardous, shall be compulsory disposed entrusting companies authorized and specialized for the different types of product. MACHINE TRANSPORT Use the handle No.17 indicated in the chapter PARTS LIST, at pages 6, for transportation and lifting. Instruction Manual Optimix 20 Mixer Technology srl pag.7... -
Page 8: Safety Instructions
Don’t introduce objects thought the hopper protection grating. Don’t use the machine with the open grating. It is absolutely forbidden to tamper the calibration of pressure reduction valve. Don’t step or pull tubes and the electrical connections. Instruction Manual Optimix 20 Mixer Technology srl pag.8... -
Page 9: Residual Risks
Don’t use different products from the Antigrip, supplied, for danger of malfunctions of the machine. Don’t throw foreign body in hopper (gravel, stones, etc….) for danger of machine breakdown and dangerous projection. Instruction Manual Optimix 20 Mixer Technology srl pag.9... -
Page 10: Diassembling Of Rotor And Mixer
DIASSEMBLING OF ROTOR AND MIXER Carry out the operations by following the letters in succession: 1. Remove the voltage to the electrical panel; 2. Unscrew the screws no. 1; 3. Remove the pump unit (flange with pressure gauge, stator, and rotor from the hopper);... -
Page 11: Connection Of The Air Tube To The Machine
CONNECTION OF THE AIR TUBE TO THE MACHINE CONNECTION OF THE MATERIAL CONVEYING AND AIR TUBES TO THE SPRAYING NOZZLE Instruction Manual Optimix 20 Mixer Technology srl pag.11... -
Page 12: Electrical Connections
All the electrical connections (plugs - sockets) must be CEE industrial type with protection degree IP67. The use of extension cords is admitted only if made in safety standards (cross- section of conductors, insulation, earthing, etc.) Instruction Manual Optimix 20 Mixer Technology srl pag.12... -
Page 13: Control Panel
Pos. “Return”: return position; “Start/Stop” Pos “I-Run”: Maintained for more than 3 seconds it starts the machine; DX: Reverses the direction of mixer rotation 3-position selector 0: Return of the selector SX: Direction of rotation for the pumping phase Potentiometer... -
Page 14: Checks Before Switching On
2. Move the gearmotor speed variator to pos. 50%; 3. Start the machine by turning the selector to pos. "March"; 4. When the water level in the hopper reaches the mixer, stop the machine by turning the selector to pos. "Stop";... -
Page 15: Spraying Of The Material
4) To minimize the deterioration of stator/rotor group, avoid useless stops and restarts of spray; 5) During work breaks less than 15 minutes, close the valve on the spraying 6) In case of clogged of material conveying tube, enabling the mixer reverse run selector for the time needed; MACHINE SWITCHING OFF 1) Closing the valve on the lance mortar spraying nozzle or releases the lever for lance for glues;... -
Page 16: Research Of Malfunctions
(with rod 2) replace the filters; tripping malfunction); 3) check cable and plug and 2) clogged suction replace, if necessary. filters; 3) cable or plug damaged. Instruction Manual Optimix 20 Mixer Technology srl pag.16... -
Page 17: Routine Maintenance
Visual inspection and, if necessary, topping up with oil type BERGOIL “BERGOFLUID 1000” or equivalent. Compressor filter. Cleaning Six-monthly Compressor filters. Replacement Grease gun on flange Adding grease gearmotor. Biennial Material conveying tube Replacement Instruction Manual Optimix 20 Mixer Technology srl pag.17... -
Page 18: Warranty
8) It is explicitly agreed upon, that the manufacturer shall not be held responsible for any liability following any possible damages that the purchasers may suffer resulting from loss of or diminished production due to possible construction defects subject to this warranty. Instruction Manual Optimix 20 Mixer Technology srl pag.18... - Page 19 Thank you for choosing our product MIXER TECHNOLOGY srl Via dei Carabinieri, 45, 36040 Torri di Quartesolo (VI) Italy www.mixersrl.com Instruction Manual Optimix 20 Mixer Technology srl pag.19...
