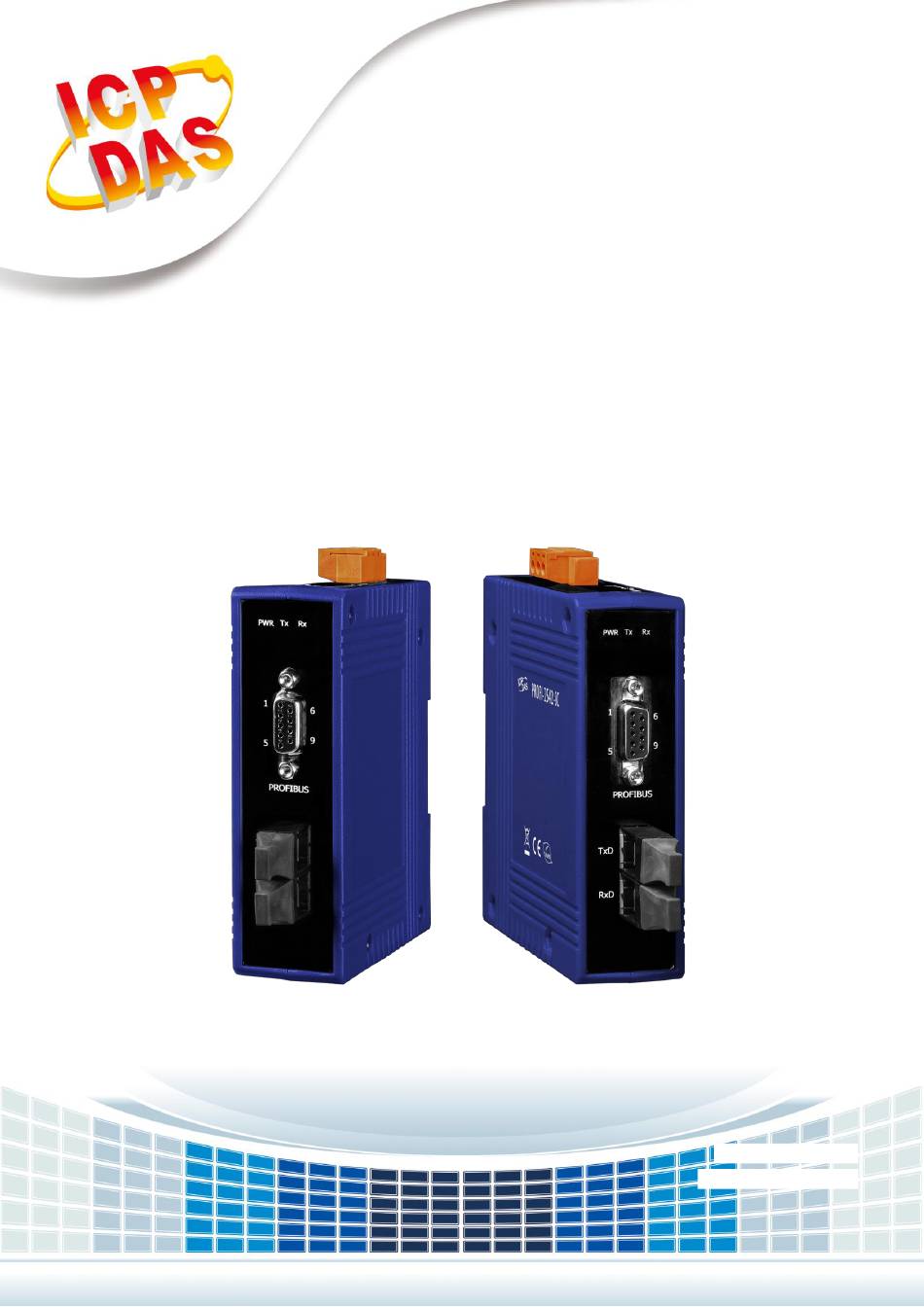

- Page 1 User Manual Version 13 December 2017 PROFI-25xx Written by Eric Du Edited by Julia Wang...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................... 4 1.1 Overview ......................... 4 1.2 Product Information ......................4 1.3 Specification ........................5 1.4 Features .......................... 6 1.5 Specifications ........................7 Hardware ..........................9 2.1 Bus Wiring ........................9 2.2 PROFIBUS Cable and Transmission Distance ............... 9 2.3 Status Indicator ...................... - Page 3 Important Information Warranty All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year, beginning from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for any damage resulting from the use of this product.ICP DAS reserves the right to change this manual at any time without notice.
-
Page 4: Introduction
Master and assigned Slave. The PROFI-2510 is a PROFIBUS repeater used to establish a physical coupling of two or more segments of a CAN bus system. According to the PROFIBUS specification, up to 32 PROFIBUS devices are allowed per segment. -
Page 5: Specification
1.3 Specification PROFI-2510 PROFI-2541(SC) PROFI-2542(SC) PROFI-25xx User Manual Version 13 Page： Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... -
Page 6: Features
1.4 Features PROFI-2510 Protocol PROFIBUS DP 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, Supports Transmission Rate (Kbps) 6000, 12000 Transmission Rate Setting detected automatically Indicators PWR LED, DP1 LED and DP2 LED ESD Protection 4kV class A Network Isolation Protection... -
Page 7: Specifications
Protocol PROFIBUS DP Network Isolation Protection High Speed iCoupler DC Isolation Protection 3000VDC on PROFIBUS side 1.5 Specifications PROFI-2510 PROFIBUS Interface 9-pin D-Sub(Female) PROFIBUS Transceiver ADI ADM2486 iCoupler Isolated transceiver Transmission Rate Up to 12Mbps Power Requirement 10V ~ 30V Power Consumption Operating Temp. - Page 8 PROFI-2542/ PROFI-2542-SC PROFIBUS Interface 9-pin D-Sub(Female) PROFIBUS Transceiver ADI ADM2486 iCoupler Isolated transceiver Transmission Rate Up to 12Mbps Power Requirement 10V ~ 30V Power Consumption Connector ST / SC(Single-Mode) Wave Length 1310 nm 9/125μm recommended Fiber cable Transmission Distance 10km max (indicative only) -25℃...
-
Page 9: Hardware
2. Hardware 2.1 Bus Wiring In order to minimize the reflection effect of the signal transmission, PROFIBUS device has to fit with an active terminal resistor at both first node and last node, as shown below. Device Device Device …… 390Ω... -
Page 10: Status Indicator
PROFI-2541(SC) PROFI-2542(SC) It provides three status indicator, In PROFI-2510, they are PWR LED (red),DP1 LED(green) and DP2 LED (green). In PROFI-2541(SC) / PROFI-2542(SC), they are PWR LED (red), TxD LED(green) and RxD LED (green). When the power is supplied to module, PWR LED will turn on;... -
Page 11: Connector
2.4 Connector The connector of PROFI-25xx module is shown below Pin No. Signal Meaning B-Line Receive/Transmit data - plus CNTR-P Repeater control signal, RTS signal Power ground of active terminator Power 5 volt of active terminator A-Line Receive/Transmit data - minus Note: The connector of PROFI-25xx module has no terminators;... -
Page 12: Baud Rate Support
PROFI-25xx module has a functionality of auto- detection for baud rates, users don’t need to set the baud rate manually. PROFI-2510 supports the entire baud rates of PROFIBUS. They are 9.6Kbps, 19.2Kbps, 45.45Kbps, 187.5Kbps, 500Kbps, 1.5Mbps, 3Mbps, 6Mbps, and 12Mbps. -
Page 13: Wire Connection
2.7 Wire Connection PROFI-2510 If PROFI-2510 is a end device of PROFIBUS segment 1 and PROFIBUS segment 2. The terminal resistor of segment 1 is ON. The terminal resistor of segment 2 is ON. If PROFI-2510 is an intermediary device of PROFIBUS segment 1. The terminal resistor of segment 1 is OFF. -
Page 14: Appendix A. Dimensions
Appendix A. Dimensions PROFI-2510 PROFI-25xx User Manual Version 13 Page： Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com... - Page 15 PROFI-2541 / PROFI-2542 PROFI-25xx User Manual Version 13 Page： Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
- Page 16 PROFI-2541-SC / PROFI-2542-SC PROFI-25xx User Manual Version 13 Page： Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved E-mail: service@icpdas.com...
-
Page 17: Appendix B. Revision History
Appendix B. Revision History This chapter provides revision history information to this document. The table below shows the revision history. Revision Date Description November 2011 Release August 2014 Add PROFI-2542-SC December 2015 Modify PROFI-2542-SC December 2017 Add PROFI-2542 PROFI-25xx User Manual Version 13 Page：...
