Graph Window
The graphical display allows to select which data shall be displayed. The shape of the individual
curves can be modified individually. Move the mouse over the line symbol and press the right mouse
button. A menu with many options will pop up.
There are dedicated buttons for zoom to all or zoom in X or Y only. In addition, the standard Labview
zoom functions are available (see the icons on the top right).

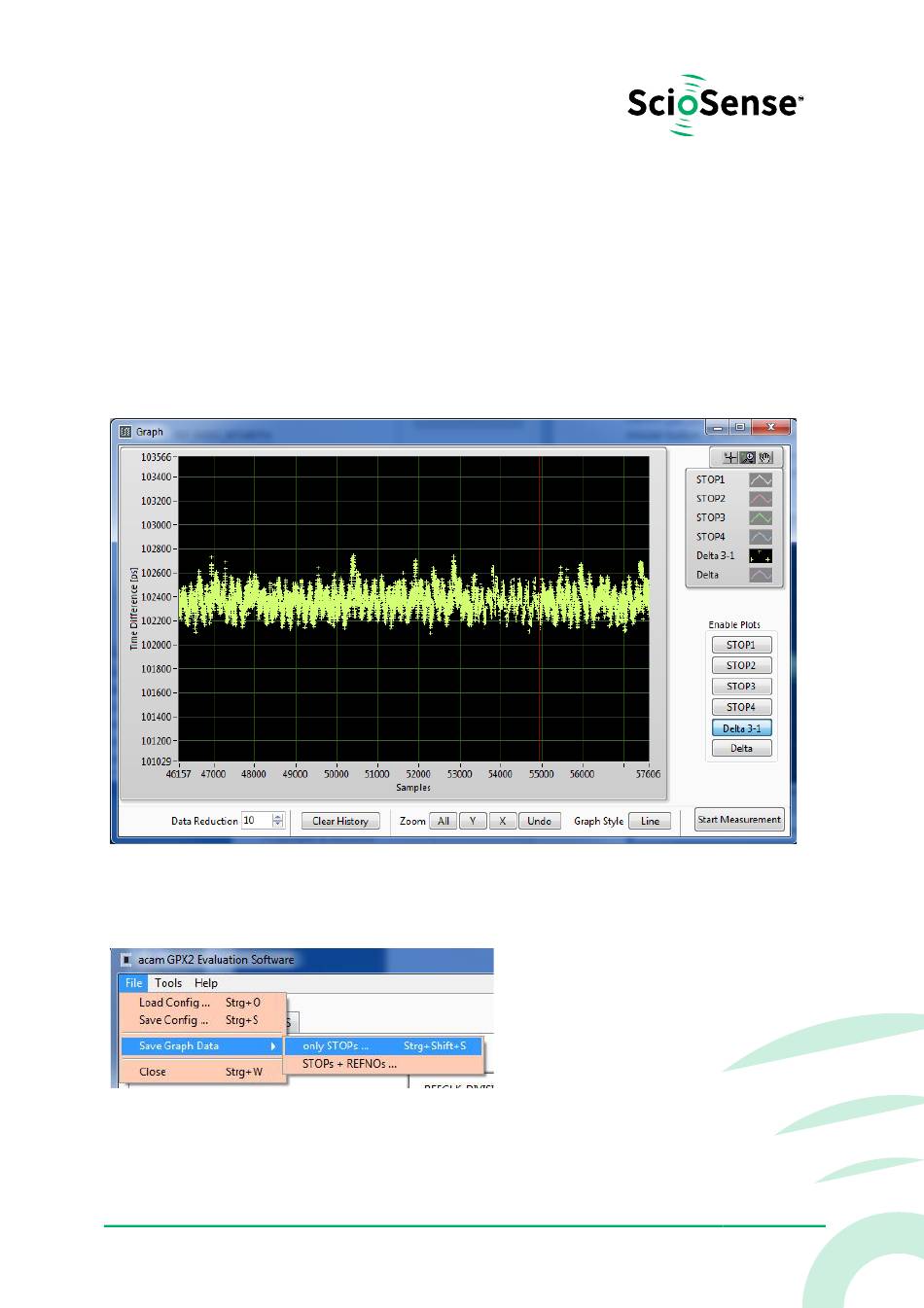

Figure 12: Graph Window
The displayed data can be exported into a text file. The maximum is 128,000 data sets.
Figure 13: Save data menu
The text file can then be analyzed with a table calculation program.
