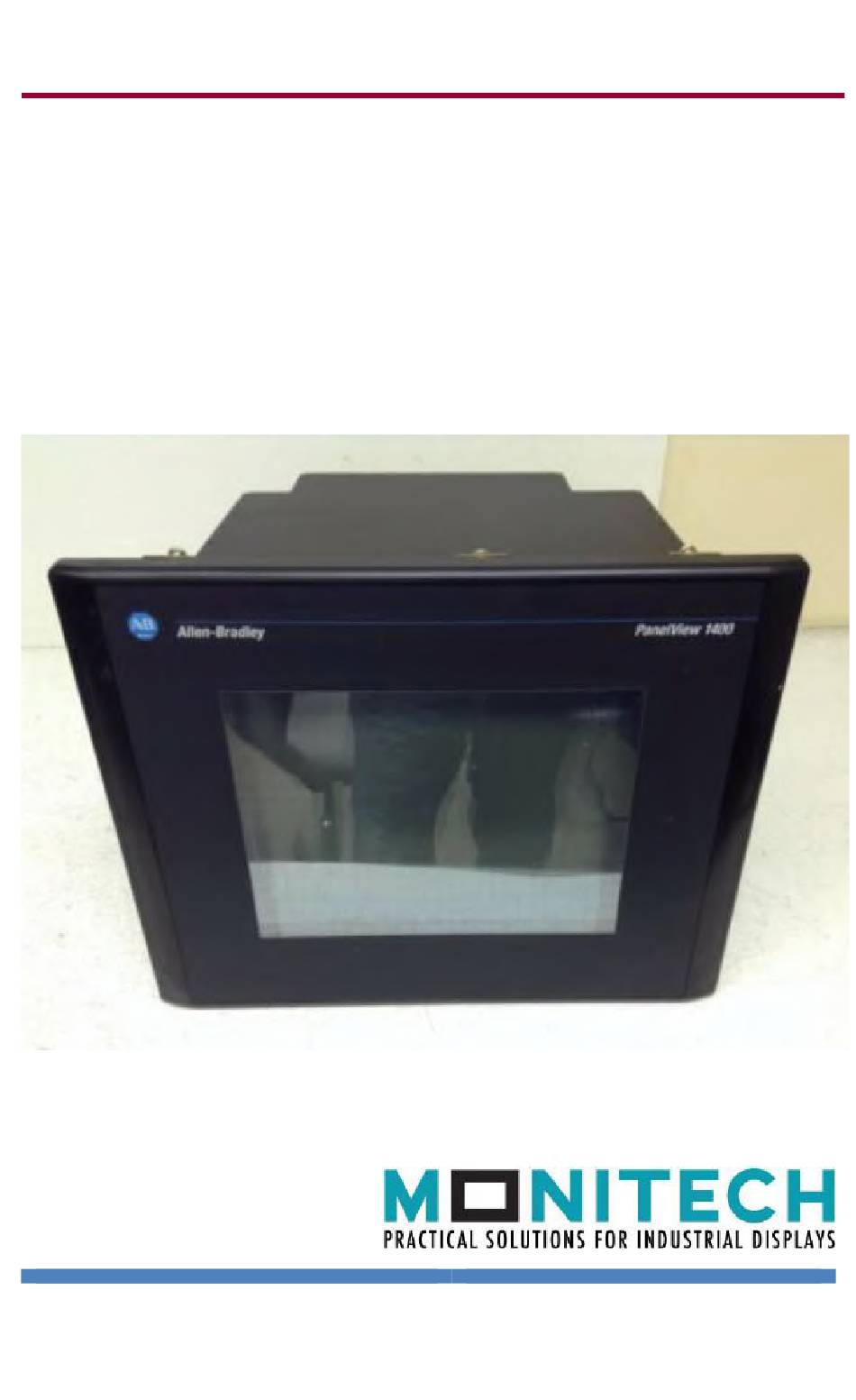

- Page 1 INSTALL GUIDE M L 1 2 1 Q T 1 4 0 0 LCD upgrade kit FOR YOUR 14" Allen-Bradley Panelview 1400 controller (2711-T14, 2711-K14) & 14" Allen Bradley T60 controller 6160PCD2 M20A10-ML121QT1400...
- Page 2 IMPORTANT: WARRANTY Before using any MONITECH product please carefully review this Manual as well as any additional documentation provided with your shipment. Attempting any of the following will void product warranty: • unauthorized repairs or parts replacement • inappropriate use or placement: exposing product to liquids, harmful gases, electrical shock, physical shock, temperatures beyond the range of -4°F to...
- Page 3 Step #2) Take the Panelview terminal out of the machine by unscrewing the clamps holding it in the machine. Unplug the communication cable, the power cable and the ethernet cable. Unscrew the clamps holding the terminal in your machine. Unplug the communication cable, the power cable and the ethernet cable. M20A10-ML121QT1400...
- Page 4 Then remove the anode lead by pushing one contact in so that M20A10-ML121QT1400...
- Page 5 2 pin AC power connector, and the other connectors Step #8) Remove the neck board, disconnect the yolk & remove all other boards from housing they are not needed. Keep the 2-pin power cable & keep the side computer board. M20A10-ML121QT1400...
- Page 6 Step #9) Now you are left with the old CRT housing in which you are going to place your Monitech Monitor in. Install the four aluminum 'C' brackets (MH2003) onto the A-B 1400 Frame using the supplied M5 nuts to secure.
- Page 7 Step #11) Re-install the gold frame to the front bezel (Refer to Step 7). Then test the monitor on the bench by using the AC power to the terminal. Adjust the image using the user controls, use the user guide to guide you. M20A10-ML121QT1400...
- Page 8 (Refer to Step 2 in reverse). Plug in the power, ethernet cable and the commination cable. Turn ON Main Power and Machine Power. For Technical Support, Call 1-877-493-6105 Support@Monitech.com 20 Howard Place Kitchener, Ontario N2K 4Z4 CANADA 519.725.2222 M20A10-ML121QT1400...
