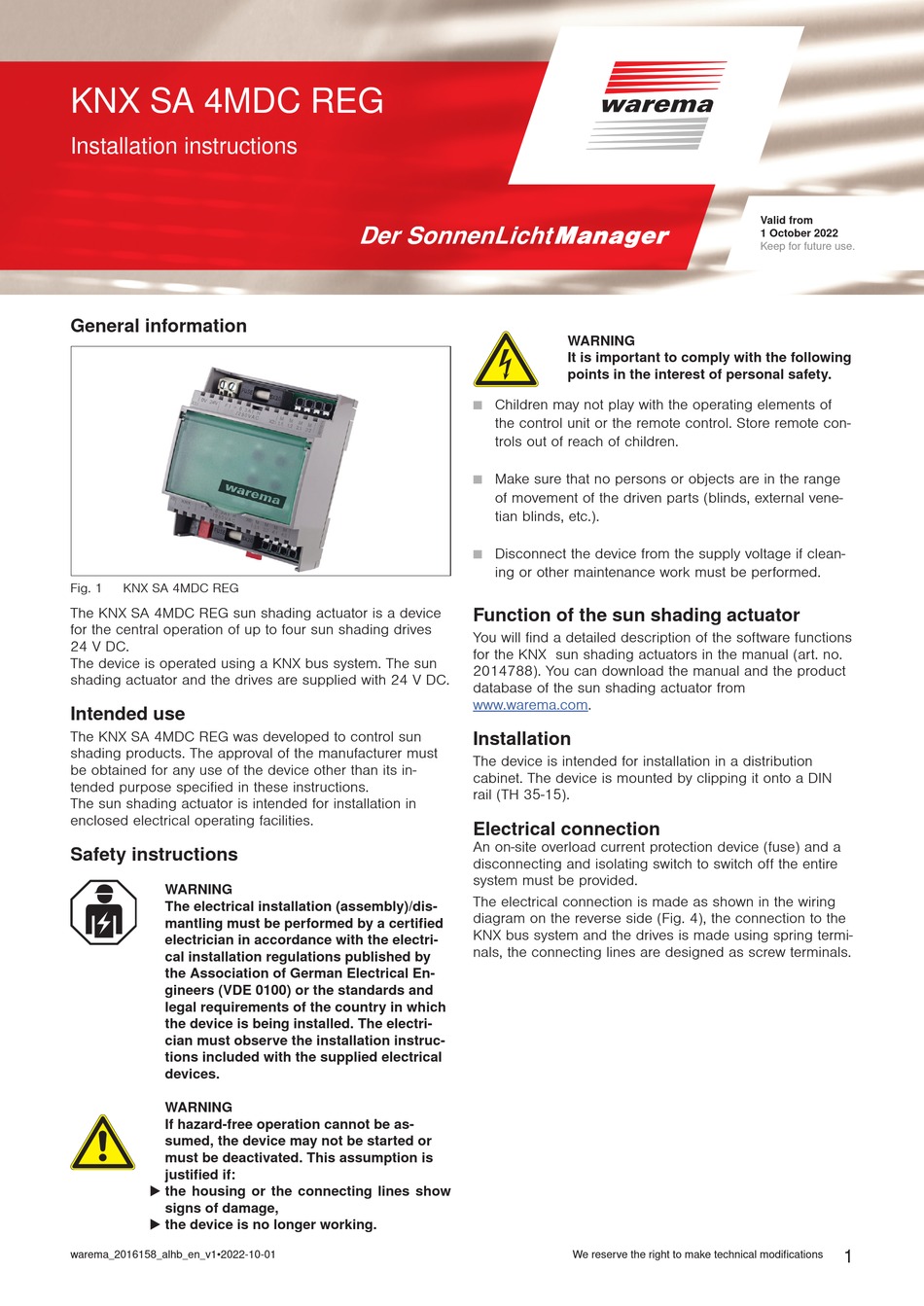

WAREMA KNX SA 4MDC REG Installation Instructions

KNX SA 4MDC REG
Installation instructions

General information

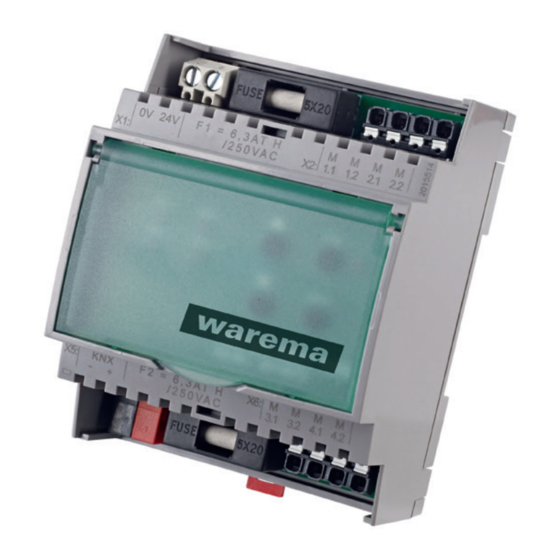

Fig. 1 KNX SA 4MDC REG
The KNX SA 4MDC REG sun shading actuator is a device
for the central operation of up to four sun shading drives
24 V DC.
The device is operated using a KNX bus system. The sun
shading actuator and the drives are supplied with 24 V DC.

Intended use

The KNX SA 4MDC REG was developed to control sun
shading products. The approval of the manufacturer must
be obtained for any use of the device other than its in-
tended purpose specified in these instructions.
The sun shading actuator is intended for installation in
enclosed electrical operating facilities.

Safety instructions

WARNING
The electrical installation (assembly)/dis-
mantling must be performed by a certified
electrician in accordance with the electri-
cal installation regulations published by
the Association of German Electrical En-
gineers (VDE 0100) or the standards and
legal requirements of the country in which
the device is being installed. The electri-
cian must observe the installation instruc-
tions included with the supplied electrical
devices.
WARNING
If hazard-free operation cannot be as-
sumed, the device may not be started or
must be deactivated. This assumption is
justified if:
 t he housing or the connecting lines show
signs of damage,
 the device is no longer working.
warema_2016158_alhb_en_v1•2022-10-01
WARNING
It is important to comply with the following
points in the interest of personal safety.

Children may not play with the operating elements of
the control unit or the remote control. Store remote con-
trols out of reach of children.

Make sure that no persons or objects are in the range
of movement of the driven parts (blinds, external vene-
tian blinds, etc.).
 Disconnect the device from the supply voltage if clean-
ing or other maintenance work must be performed.
Function of the sun shading actuator
You will find a detailed description of the software functions
for the KNX sun shading actuators in the manual (art. no.
2014788). You can download the manual and the product
database of the sun shading actuator from
www.warema.com.

Installation

The device is intended for installation in a distribution
cabinet. The device is mounted by clipping it onto a DIN
rail (TH 35-15).

Electrical connection

An on-site overload current protection device (fuse) and a
disconnecting and isolating switch to switch off the entire
system must be provided.
The electrical connection is made as shown in the wiring
diagram on the reverse side (Fig. 4), the connection to the
KNX bus system and the drives is made using spring termi-
nals, the connecting lines are designed as screw terminals.
We reserve the right to make technical modifications
Valid from
1 October 2022
Keep for future use.
1
