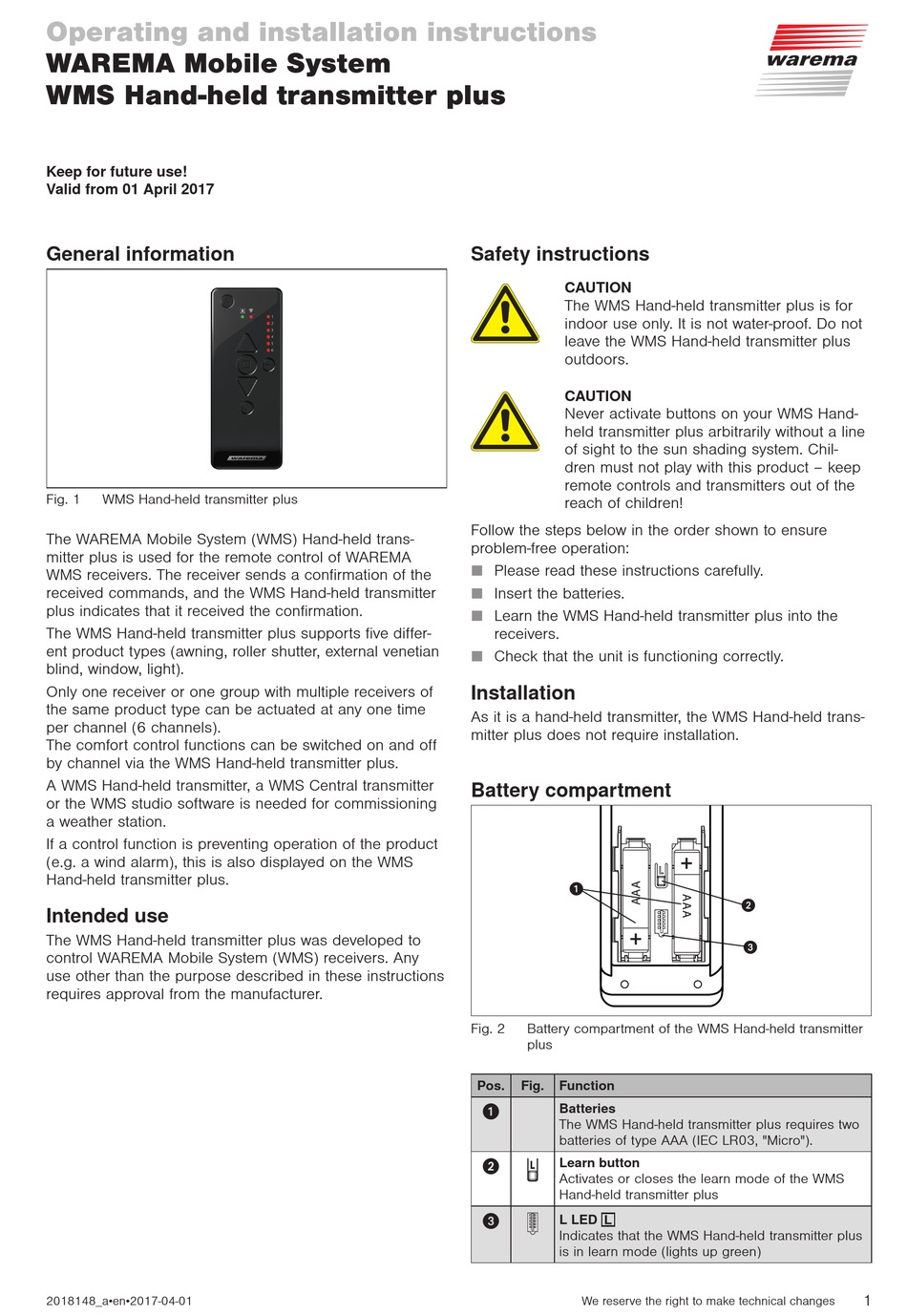

Operating and installation instructions
WAREMA Mobile System
WMS Hand-held transmitter plus
Keep for future use!
Valid from 01 April 2017
General information
Fig. 1
WMS Hand-held transmitter plus
The WAREMA Mobile System (WMS) Hand-held trans-
mitter plus is used for the remote control of WAREMA
WMS receivers. The receiver sends a confirmation of the
received commands, and the WMS Hand-held transmitter
plus indicates that it received the confirmation.
The WMS Hand-held transmitter plus supports five differ-
ent product types (awning, roller shutter, external venetian
blind, window, light).
Only one receiver or one group with multiple receivers of
the same product type can be actuated at any one time
per channel (6 channels).
The comfort control functions can be switched on and off
by channel via the WMS Hand-held transmitter plus.
A WMS Hand-held transmitter, a WMS Central transmitter
or the WMS studio software is needed for commissioning
a weather station.
If a control function is preventing operation of the product
(e.g. a wind alarm), this is also displayed on the WMS
Hand-held transmitter plus.
Tntended use
The WMS Hand-held transmitter plus was developed to
control WAREMA Mobile System (WMS) receivers. Any
use other than the purpose described in these instructions
requires approval from the manufacturer.
2018148_a•en•2017-04-01
Safety instructions
C
CAUTIO
The WMS Hand-held transmitter plus is for
indoor use only. It is not water-proof. Do not
leave the WMS Hand-held transmitter plus
outdoors.
C
CAUTIO
Never activate buttons on your WMS Hand-
held transmitter plus arbitrarily without a line
of sight to the sun shading system. Chil-
dren must not play with this product – keep
remote controls and transmitters out of the
reach of children!
Follow the steps below in the order shown to ensure
problem-free operation:
Please read these instructions carefully.
Insert the batteries.
Learn the WMS Hand-held transmitter plus into the
receivers.
Check that the unit is functioning correctly.
Tnstallation
As it is a hand-held transmitter, the WMS Hand-held trans-
mitter plus does not require installation.
Battery compartment
Fig. 2
Battery compartment of the WMS Hand-held transmitter
plus
Pos.
Fig.
Function
Batteries
1
The WMS Hand-held transmitter plus requires two
batteries of type AAA (IEC LR03, "Micro").
Learn button
2
Activates or closes the learn mode of the WMS
Hand-held transmitter plus
3
L LED
Indicates that the WMS Hand-held transmitter plus
is in learn mode (lights up green)
We reserve the right to make technical changes
1
