WPS-MNT-EXT-DOM Dome Camera Extension Mount

Introduction

Designed to simplify installation and overcome complexity of where to terminate connections, this

mount will fit a variety of metal junction boxes both interior and exterior weatherized boxes:

•

Single

•

Double

•

4" Octagon

•

4" Octagon

•

3-4" Cieling Fan Box

•

3/4" Conduit (Interior Only Locations)

Installation Guidelines

Mounting

When mounting to a junction box, we recommend the use of metal boxes, doing so will provide the

most secure installation.

Weatherproofing

While grommets and gaskets are provided to help block out moisture, we recommend that the

installation is completed with silicone on external connections and mount to junction box mating

surfaces. This will help ensure that moisture will not enter the wall.

Parts Included

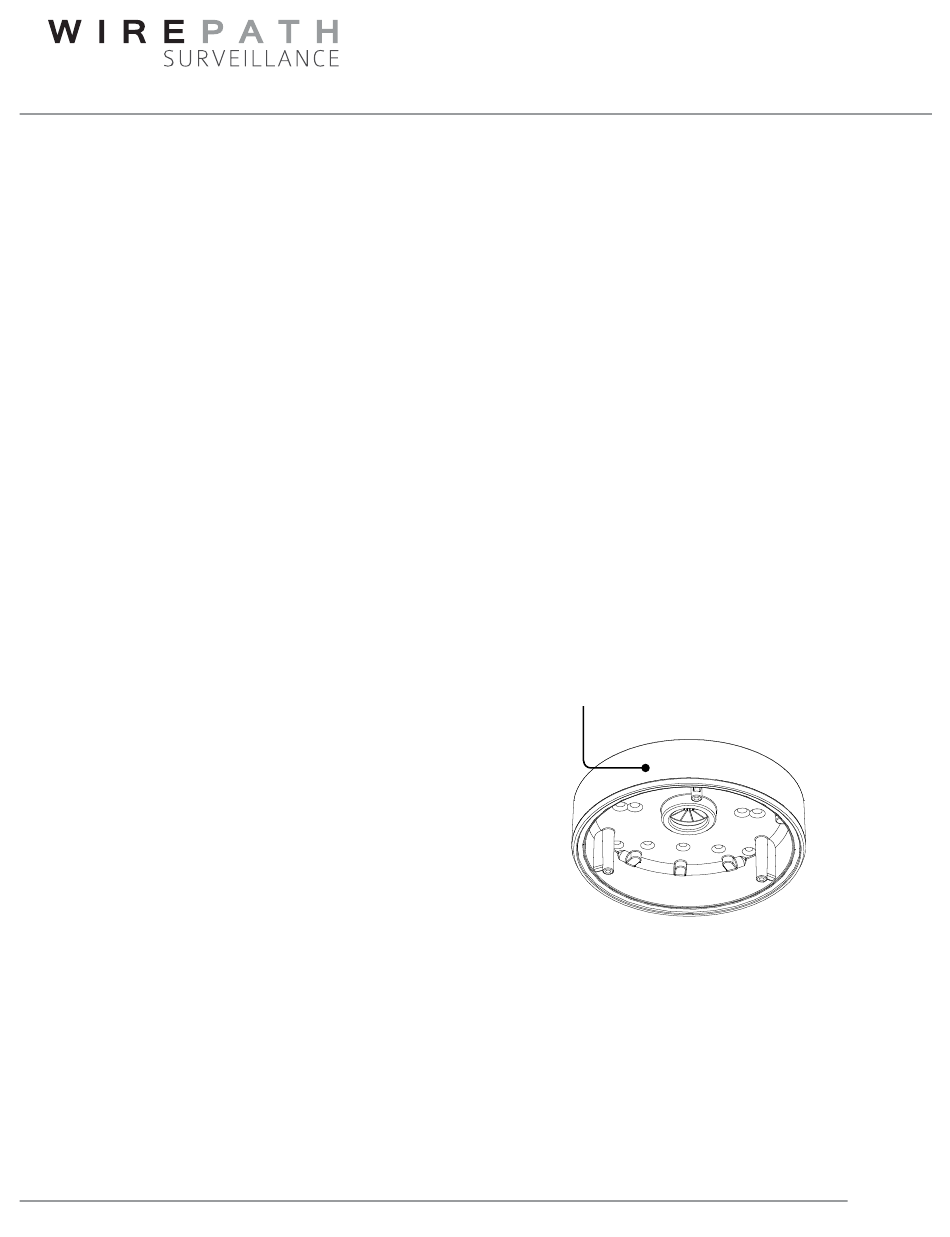

A. (1) Dome Extension Mount

Not Shown

B. (2) #6-32x3/4"L - Flat Head Philips

C. (2) #8-32x3/4"L - Flat Head Philips

D. (3) M4x25L - Round Head Philips with rubber

washers

E. (1) Manual

Installation Manual

pg. 1

Page 1 Installation Manual WPS-MNT-EXT-DOM Dome Camera Extension Mount Introduction Designed to simplify installation and overcome complexity of where to terminate connections, this mount will fit a variety of metal junction boxes both interior and exterior weatherized boxes: • Single • Double •...
Page 2 WPS-MNT-EXT-DOM Installation Manual Installation Important Note: To avoid damaging the dome surface during installation, keep the dome surface away from walls and other objects. Do not remove the protective coating from the dome until after the camera is mounted and the dome installed.
Page 3 WPS-MNT-EXT-DOM Installation Manual Conduit Mounting (3/4”) The WPS-MNT-EXT-DOM can also be used for commercial installations where mounting to the end of threaded conduit is desired. This type of installation is for indoor use only, do not use this method for outdoor cameras.
Page 4 WPS-MNT-EXT-DOM Installation Manual 5. Finalize the Installation (outdoor cameras) For outdoor installations, we recommend adding a bead of silicone around the edges of the mount. This will help ensure that moisture will not enter the wall. 6. Setup the Camera Now that the camera is mounted, it can be setup for angle, zoom, and focus.
