WPS-MNT-L-DOM Dome Camera L Mount
Introduction
Wirepath™ Surveillance camera mounts are designed to simplify installation and overcome the
complexity of concealing connections when installing Wirepath™ Surveillance cameras. Each mount fits
a variety of interior and exterior junction box sizes providing flexibility during installation.
•
Single
•
Double
•
4" Square
Installation Guidelines
Mounting
When mounting to a junction box, we recommend the use of metal junction boxes for the most
secure installation.
Weatherproofing
While washers and a gasket are provided to help block out moisture, we recommend adding a bead of
silicone around the edges of the mount for outdoor installations. This helps ensure that moisture does not
enter the wall.
Parts Included

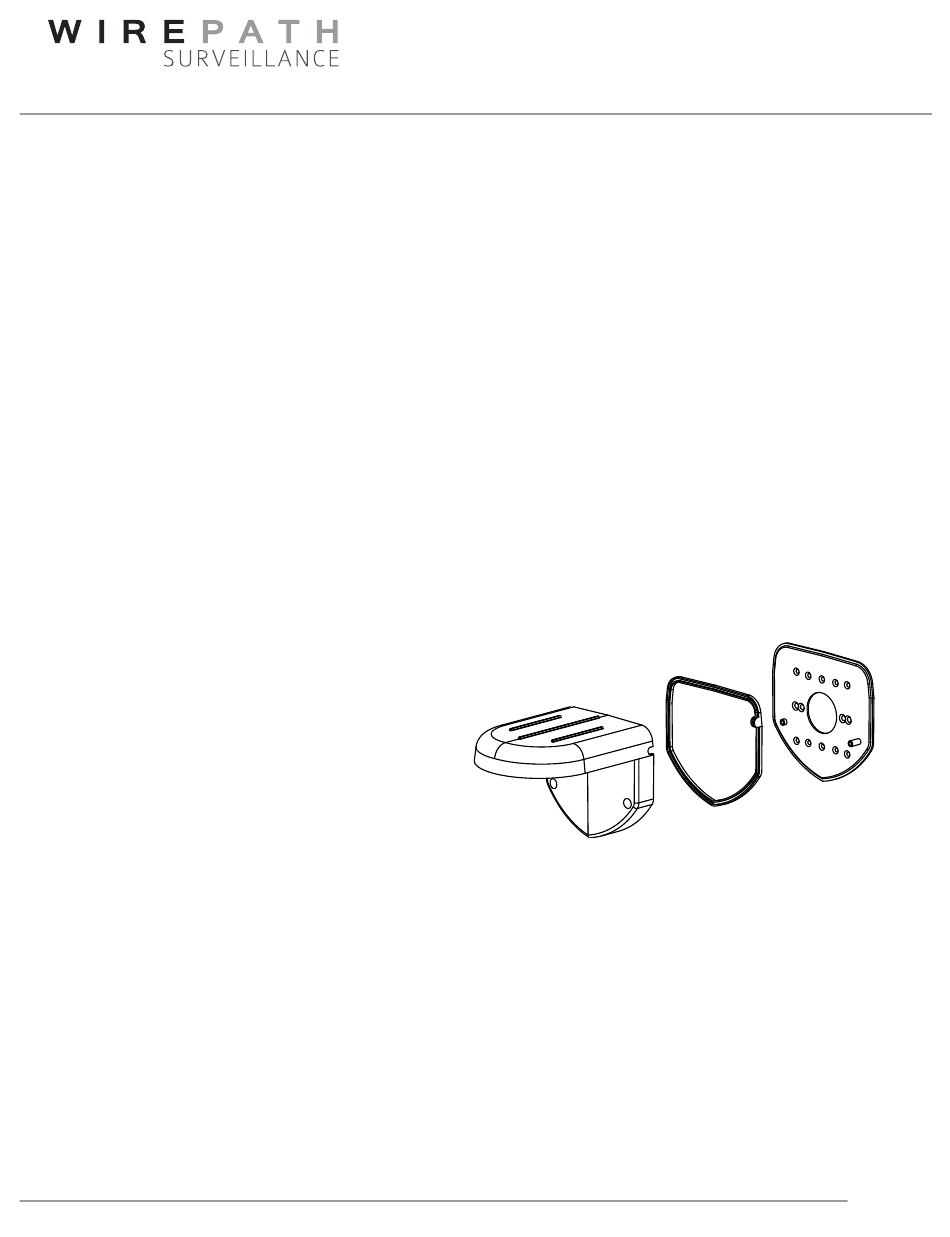

Exploded View
A. (1) L mount
B. (1) L mount gasket
C. (1) wall plate adapter
Note: The identifying letters shown in Figure 1 are
used throughout this document.
Not Shown
D. (2) M5x8mm - hex/thumb screw
E. (2) M6x25mm - wall anchor
F. (1) 1/4"x1.5" - round head Phillips screw
G. (1) 1/4"x2" - round head Phillips screw
H. (3) #6-32x3/4" - flat head Phillips screw
I. (3) #8-32x3/4" - flat head Phillips screw
J. (4) M4x10mm - round head Phillips screw
© 2015 Wirepath™ Surveillance
with rubber rings
Installation Manual
Figure 1
B.
A.
C.
pg. 1
Advertisement
Related Manuals for Wirepath Surveillance WPS-MNT-L-DOM
Summary of Contents for Wirepath Surveillance WPS-MNT-L-DOM
- Page 1 Installation Manual WPS-MNT-L-DOM Dome Camera L Mount Introduction Wirepath™ Surveillance camera mounts are designed to simplify installation and overcome the complexity of concealing connections when installing Wirepath™ Surveillance cameras. Each mount fits a variety of interior and exterior junction box sizes providing flexibility during installation. • Single • Double • 4" Square Installation Guidelines Mounting When mounting to a junction box, we recommend the use of metal junction boxes for the most secure installation.
- Page 2 WPS-MNT-L-DOM Installation Manual Installation Important Note: To avoid damaging the dome surface during installation, keep the dome surface away from walls and other objects. Do not remove the protective coating from the dome until after the camera is mounted and the dome installed.
- Page 3 WPS-MNT-L-DOM Installation Manual 3. Attach the Wall Plate Adapter to the Wall Plate Mounting Holes The wall plate adapter included with the mount is designed to fit a variety of junction box sizes. • Single • Double • 4" Square The diagram below identifies which holes to use when mounting to the various plates. Figure 4 A. Single Gang B. Double Gang C. 4" Square D. 4" Square (if 4" Square Box is rotated) E.
- Page 4 WPS-MNT-L-DOM Installation Manual 4. Attach the L Mount / Camera Assembly to the Wall A. Place the L mount gasket (B) on the rear of the L mount (A) with the groove towards the mount and the tab lined up with the slot on the mount.
