- Page 1 POWERTEK Model CV388-R Operating and Assembly Manual PowerTek Inc. P.O. Box 3 Lebanon, IN 46052 10-23-08...
- Page 2 Model CV388-R Parts List Part No. Description Qty. 38026 Engine Frame, RH 38012 Container Frame, 380 38015 Vertical Upright, 380 86028 Engine, 9HP Robin 88046 Turbine Housing, Chipper 56055 Turbine, Chipper Pro Series 56107 Turbine Washer 58036 Inlet, Chipper 6"...

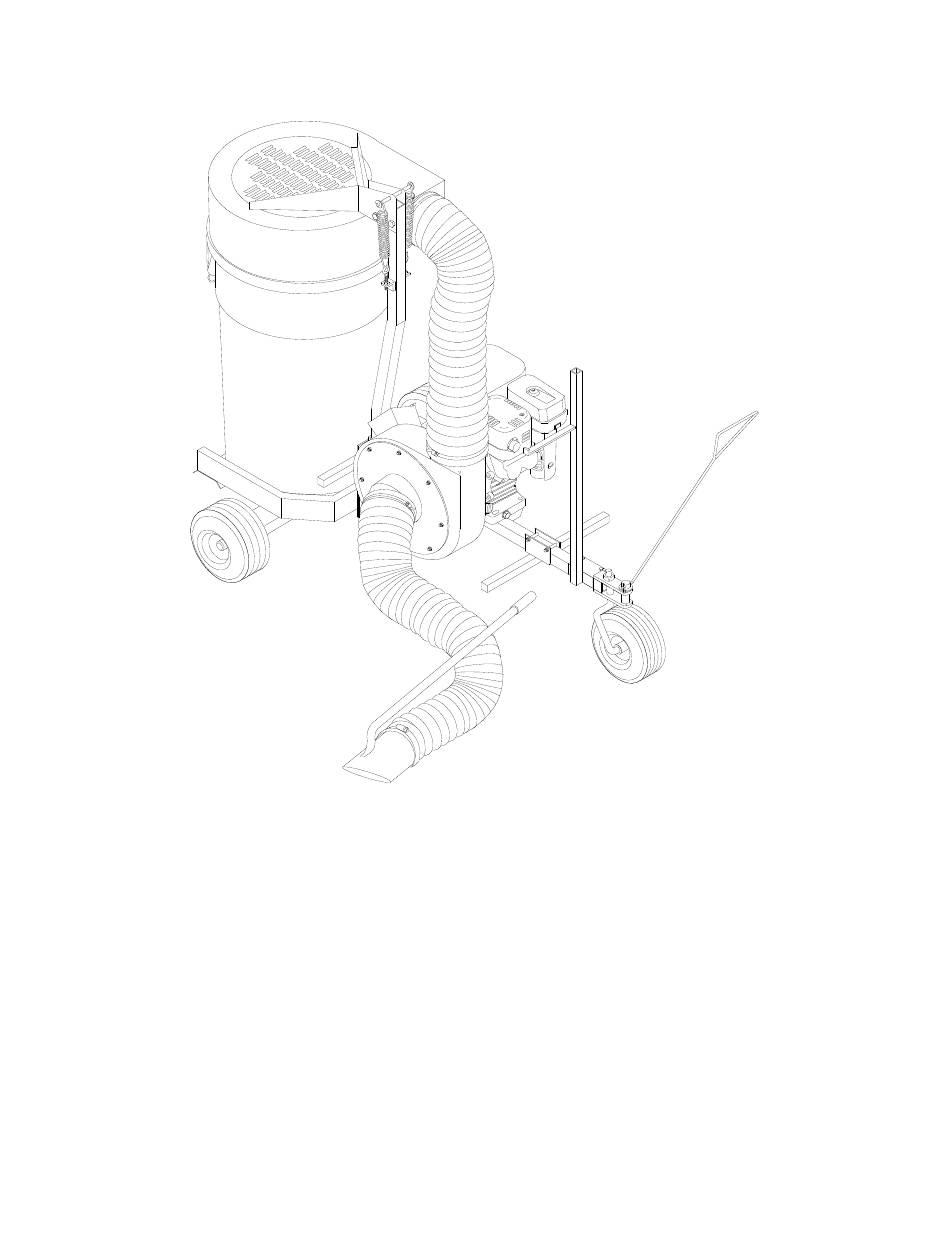

- Page 3 PowerTek Model CV388-R 3-6-08...
- Page 4 PowerTek Assembly Instruction 1. Place frame (2) on blocks and level the frame with axles towards the bottom and frame facing upwards. Slip wheel (9) over container frame (2) axle pin, trapping 3/4" flatwasher on both sides of wheel. Secure with 1/8" x 1" cotter key. Slid hub cap over wheel hub. Repeat procedure with opposite wheel.
- Page 5 Eyebolt (2x) 5/16" Freenut (2x) 5/16" Whizlock Nut (2x) 3/4" Flatwasher 3/8" x 1" Hexbolt (4x) 1/8" Cotter Pin 3/8" Whizlock Nut (4x) Fig. 1 Fig. 2 Fig. 3 3/8" x 2 1/8" Clevis Pin 3/8" Whizlock Nut (4x) 1/2" x 2 1/2" Hexbolt 1/4"...
- Page 6 Fig. 10 Fig. 11 Fig. 12 CHIPPER VAC INSTRUCTIONS The chipper components on your chipper vac have been fully assembled at the factory. Your chipper vac is designed to accommodate limbs up to 3” in diameter. To remove the chipper blades for sharpening or replacement, detach the three 3/8” whizlock nuts and lift off the chipper chute.
- Page 7 4. Clean tires and check pressure. Raising and supporting unit with weight off tires is recommended. 5. When storing a unit with Rubbermaid® containers, leave containers latched to top. POWERTEK WARANTY POLICY Palmor Products, Inc. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
