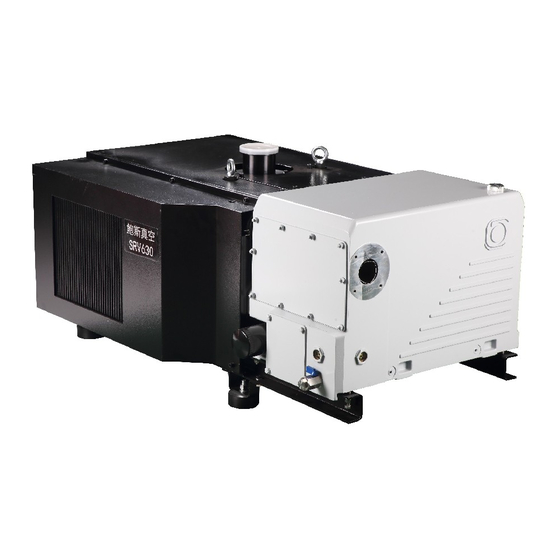

- Page 1 VERSION：1.0 Instruction Manual Single-stage oil-sealed rotary vane vacuum pump SRV630/SRV750...
-
Page 2: Table Of Contents
Contents 1 Important Safety Information 1.1 Mechanical Hazards 1.2 Electrical Hazards 1.3 Thermal Hazards 1.4 Hazards caused by materials and substances 1.5 Danger of pump damage 2 Description 2.1 Operation principle 2.2 Technical data 2.3 Lubricants Transport and Storing Transport and packaging Mounting orientation Storage Operation... -
Page 3: Important Safety Information
When operating pump is hot and some surfaces could reach a temperature higher than 80℃（176℉）. There is risk of burn by touching. 1.4 Hazards caused by materials and substances SRV630 pump are not ： ★ For pumping of dusty, aggressive, corrosive, flammable or explosive gases or gases mixtures;... -
Page 4: Danger Of Pump Damage
If the pump has pumped hazardous gases it will be absolutely necessary to determine the nature of the hazard involved and take the appropriate safety precautions. Take adequate safety precautions prior to opening the intake or exhaust port. Respect the instruction concerning environment protection when discarding used oil or exhaust filters. -
Page 5: Description
The anti-suckback valve, gas ballast valve, exhaust filters, oil feedback circuit, oil cooler and thermal switch are integrated functional elements of the SRV630. The rotor mounted eccentrically in the pump cylinder has three vanes which divide the pump chamber into several compartments. The volume of each change periodically with the rotation of the rotor. - Page 6 The oil cycle of the pump is maintained by the pressure difference existing between the oil casing (pressure above atmospheric pressure) and the intake port (pressure below atmospheric pressure). Unintentional venting of the vacuum chamber as well as oil suck back when switching off the pump is prevented by the built-in anti-suck back valve.
-
Page 7: Technical Data
2.2 Technical data Technical data Technical data SRV630 SRV750 Pumping speed m³/h Ultimate pressure （ without gas ≤8 ballast） Ultimate pressure （with 1 gas ≤70 ballast） Ultimate pressure （with 2 gas ≤200 ballast） 1 gas 4000 5000 Water vapour ballast... - Page 8 Oil capacity(min/max) 27/29 Intake DN100ISO-K Exhaust See the installation diagram ★ Tested at the ultimate pressure without gas ballast, free-field measurement at a distance of 1m...
-
Page 9: Lubricants
2.3 Lubricants SRV pump should run with BAOSI VACUUM BSO100 oil which meet these requirements; ★ Low vapor pressure even at high temperatures ★ Minimal water vapor content and water absorption ★ Flat viscosity curve ★ Good lubrication performance ★ Good resistance to aging under mechanical stress Transport and storing 3.1 Transport and packaging Each vacuum pump passes a rigorous operating test in our factory and is packaged... -
Page 10: Mounting Orientation
The pump oil is wrapped in plastic film with 5 desiccant bags inside. The connection ports are blanked off by plastic protective caps or self-adhesives. Take these caps or self-adhesives away before turning on the pump. The pump is filled with oil. 3.2 Mounting orientation Pumps which have been filled with oil must only be moved in the upright position (horizontally). -
Page 11: Operation
If the pump has been shelved for over one year, standard maintenance must be done and the oil must be exchanged too before the pump is put in to service once more. Operation It is essential to observe the following instructions step by step to ensure safe start-up. - Page 12 ★ The maximum pressure at the inlet may not exceed atmospheric pressure (about 1013 mbar). Never operate the pump in the presence of over pressures at its intake. ★ The cross-section of the intake line should be at least the same as the one for the intake port.
- Page 13 ★ Never operate the pump with a blocked or restricted exhaust line. ★ The SRV630 does not have an exhaust flange. For the connection method of the exhaust pipe, refer to the SRV630 installation dimension drawing. The cross-section of the exhaust line should be at least 100mm. If the exhaust line is too narrow, overpressure or overheating may occur in the pump.
- Page 14 ★ For the check, switch on the motor briefly. If it starts up with the wrong direction of rotation, switch it off immediately and interchange two phases of the connection. It is recommendable to check the direction of rotation with a phase sequence indicator.（The motor steering can be determined by the fan steering at the motor shaft end.
-
Page 15: Start-Up
The normal oil level is between the middle and the top of the oil window. ★ The SRV630 pump is not designed for starting under 12 ° C. ★ Before the pump starts, ensure that the connected accessories meet your application requirements and ensure safe and reliable operation. - Page 16 The gas ballast valve is opened by a screwdriver. The running noise of the pump is slightly louder if the gas ballast valve is open. Before pumping vapors ensure that the SRV630 has warmed up for approx. 30 min. with closed intake line and with open gas ballast valve.
- Page 17 ★ One sign of condensation of vapors in the pump is a rise of the oil level during operation of the pump. ★ When vapors are pumped, the pump must not be switched off immediately after completion of the process because the condensate dissolved in the pump oil may cause changes or corrosion.
-
Page 18: Ultimate Pump Pressure
allow the pump to continue to run.（see chapter 4.4） 。 ★ When the pump has been switched off due to overheating, initiated by the motor or its temperature detector, the pump must be cooled down to the ambient temperature, and must only be switched on again manually after having eliminated the cause. -
Page 19: Maintenance Intervals
★ Depending on the process involved, dangerous substances and oil may escape from the pump. Take the necessary safety precautions. ★ Respect the instruction concerning environment protection when discarding used oil or exhaust filters. ★ Observe the safety regulation. ★ Do not use deformed or damaged seals. Use new seals. ★... -
Page 20: Maintenance Work
Replacing the pump module Disassembling and reassembling the pump module Control belts 6 months Lubrication bearing Cleaning the radiator fan To simplify the maintenance work we recommend combining several jobs. 5.3 Maintenance work A Oil level The pump’s oil level during operation must always be between the middle and top edge of the oil-level glass When necessary, switch off the pump and add the correct quantity of BSO-100 oil. - Page 21 temperature. If there is a risk of the oil being polymerized by the connected process, change the oil immediately after operation of the pump. Pump when operating is hot and some surfaces could reach a temperature higher than 80° C (176 °F). There is a risk of burn by touching. Take note of the warning labels on the pump.
- Page 22 the filter element, and remove the 8 filter element springs; Clean the oil stains on the filter element mounting holes, and then reinstall 8 new filter elements，The strip on the filter element should be straight down。Then install the filter element fixing plate, muffler, and front cover in order. E Cleaning the dirt trap and anti-suckback valve A wire-mesh filter is located in the pump’s intake port (43 or 67) to act as a dirt trap for impurities.
- Page 23 Tools required：socket head wrench 8mm、open end wrench Remove the front cover and intake filter of gas ballast ，open the clip, remove the filter element, clean the filter element with a suitable volume, dry it, and then install it in the reverse order of disassembly.（You can also replace the filter element or the air intake filter with a new one.）...
- Page 24 O-ring, when it hits the next belt, stop exerting force, record the reading of the tensiometer at this time, and measure the tension of the four belts in the same way. Tightening values of the notched belts Before run-in 10h to 24h 6 months or3000h SRV630 XPA1500 5.0kg 4.5kg 3.5kg...
- Page 25 Note: If you have any questions, please contact BAOSI VACUUM for details. J Lubricating the bearings The pumps SRV630 and SRV750 are equipped with separate grease-lubricated bearings. With increased thermal load, i. e. continuous operation at high intake pressures, gas ballast operation, it is advisable to check the bearings at shorter intervals.
-
Page 26: Troubleshooting
Bearing 6309 14cm /12g Bearing 6409 20cm /18g K Cleaning the radiator fins When the amount of air from the fins of the radiator is reduced, it is necessary to clean up the dust and debris in the fins in time to prevent the cooling effect from decreasing. - Page 27 Pump is broken Repair the pump. Measuring technique or gauge is unsuitable. Use correct measuring technique and gauge. External leak Repair the pump Anti-suckback valve is malfunctioning Repair the valve. Pump does Float valve does not work Repair the valve not reach unsuitable or contaminated oil Change the oil...
- Page 28 intake line Anti-suckback valve is obstructed. Clean or repair the valve. or in vacuum anti-suckback valve are damaged or dirty. Clean or repair valve. vessel Oil level is too high. Drain the excess oil. Pump is Oil level is very low Add oil.
- Page 29 Check Sheet for Repair Model Serial Purchase Date Customers Address Person in charge Tel No. 1 Request item □Scheduled inspection repairing □Trouble Condition：□Ultimate pressure □Unusual sound □Irregular action □Oil leak outside the pump □Others Description of trouble： 2 Service condition □Others：...
- Page 30 Notice: Copy this sheet use as repaired. Your request for repair and inspection may be refused if this sheet is not included with the pump. Information of hazardous gas in this sheet must be correct and sufficient.
- Page 31 NINGBO BAOSI ENERGY EQUIPMENT CO.,LTD Add：No.55, Juchao Road, Jiangkou subdistrict, Fenghua District, Ningbo City, Zhejiang Province, China. Post code：315500 Tel：0574-88569588 59516555 Fax：0574-88569596 Email：bsvac@cnbaosi.com Htttp://www.cnbaosi.com...
