Occasionally our products contain components that are
pre-lubricated at the factory. We recommend that you
protect fl ooring, or anything else the parts may contact,
with newspaper or cloth.

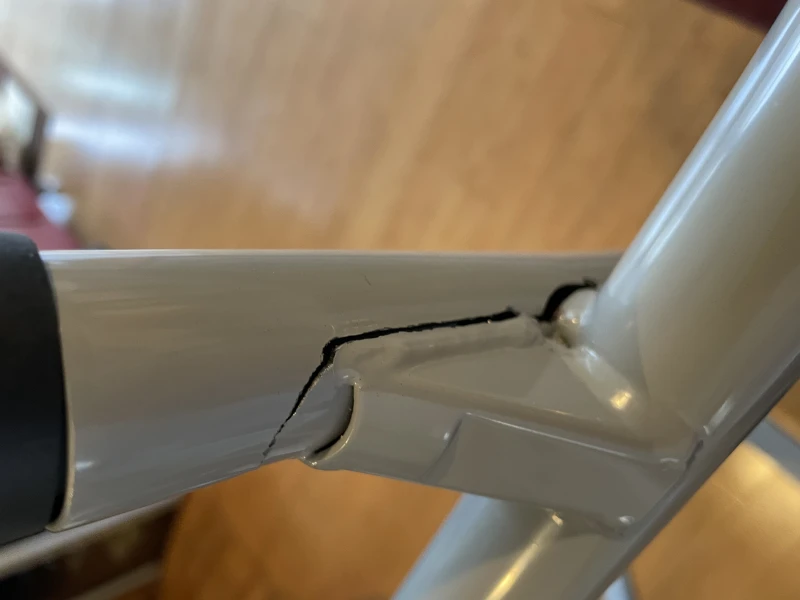

axle tube assembly
left
frame
assembly

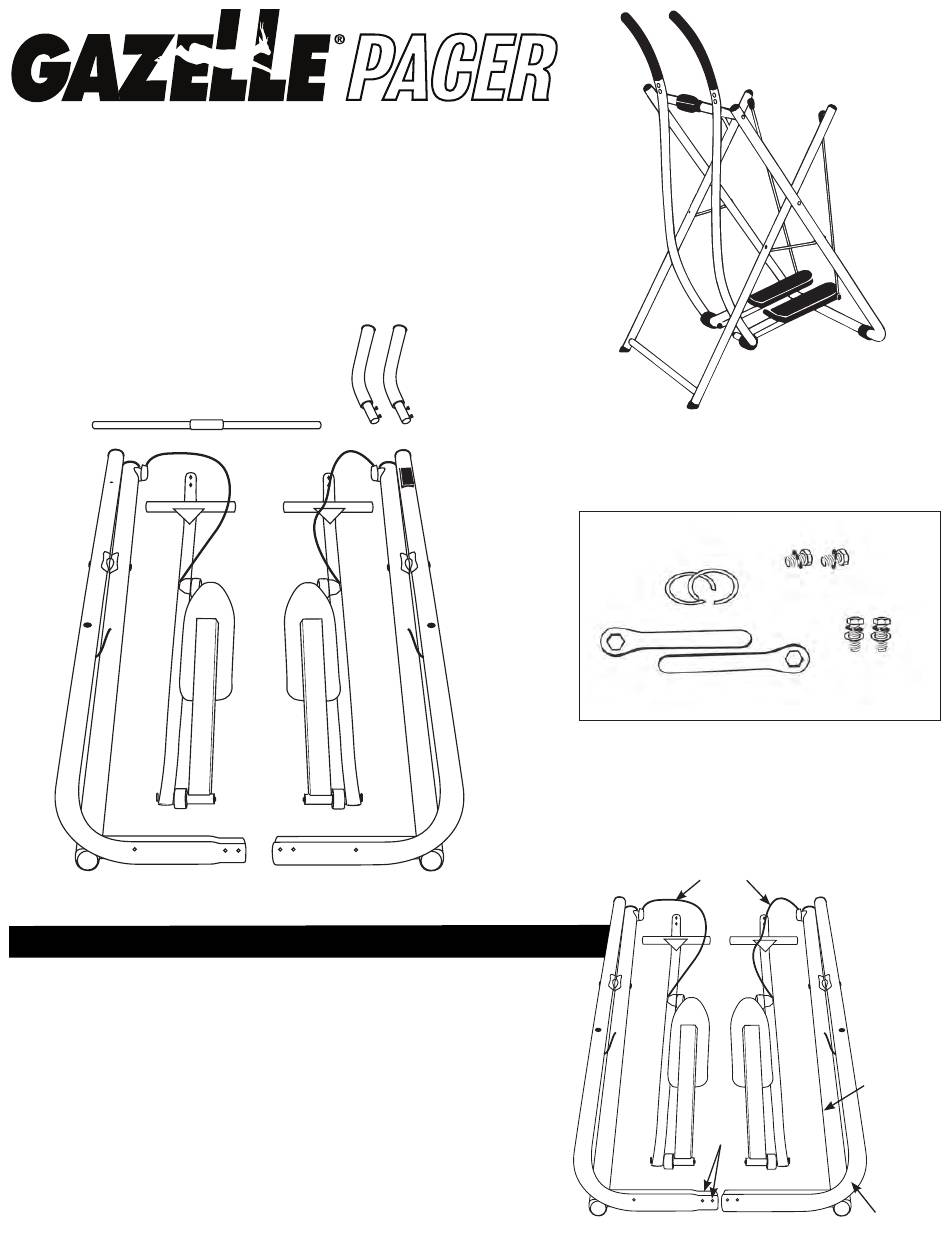

ASSEMBLY INSTRUCTIONS
a. Lay the two frame assemblies & swing arm assemblies
on the floor as shown. Make sure the rear frame is on top
& that the cables pass freely above all the frame tubes.
Note: Be careful you do not allow the cable to get behind
the swing arms.
b. Remove all the bolts at the bottom of the frame assembly.
There are two on the rear frame & two on the underside
on the front frame.
left
swing arm
assembly
right
swing arm
assembly
hand grip
assemblies
right
frame
assembly
fastener pack
Tools Required for Assembly:
spare
washers
spare handle bolts
& spring washers
wrenches
cables
b
Phillips Screwdriver
Wrenches (provided)
axle tube bolts
& spring washers
& flat washers
front
frame
rear frame
(curved)
