- Page 1 Instruction Manual MedTime Station Plus e-pill ® Locked Automatic Pill Dispenser with Station US Patent 9,027,787 B2 Item 993040 Item 993050 Carefully review and save this setup guide...

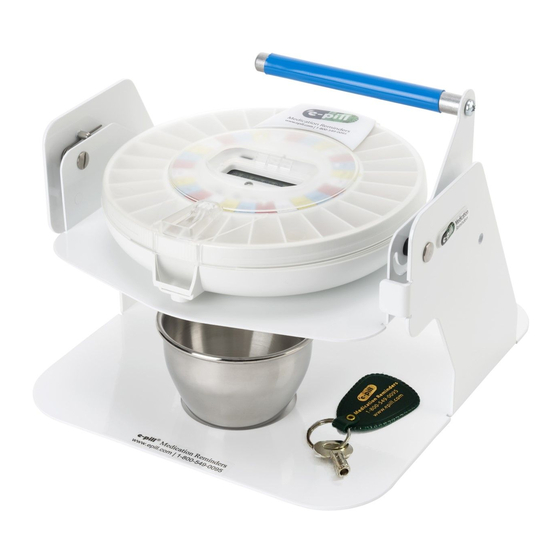

- Page 2 To SECURE the round pill dispenser to the metal Station ALIGN the pill dispenser with the e-pill logo at 10 o’clock TURN the pill dispenser clockwise until the e-pill logo is at 12 o’clock To MOUNT the metal Station to a surface...
- Page 3 Two keys are included - one key for the caregiver and one key as a backup. e- pill MedTime Station Plus is locked but it is not tamperproof, therefore it should NOT be used to administer pain medications or Schedule II/III drugs.
- Page 4 One key for the caregiver and one key as a backup. AA Batteries (4) e-pill MedTime Station Plus can be locked but it Item: Not sold separately is not tamperproof and therefore should NOT be used to administer Schedule II or III drugs or any medications where the patient may try to get to them by force.
- Page 5 SETUP - STEP 1 Turning On and Opening e-pill MedTime Plus 1. Turn the pill dispenser upside down and remove the battery door 2. Remove the battery insulator strip to power on the dispenser 3. e-pill MedTime Plus is now on 4.
- Page 6 Setup Menu B: Carefully Go Through All of Menu B for Proper Setup To access Menu B: Press and hold button 3 until “BEFORE” is displayed. Menu B Settings: Before, After, Sound, Light, Filled, Batt, Secure, Hours, DLS, Start, Stop, Record. BEFORE: Allows dispensing of medication before the set alarm time.
- Page 7 BATT: Sets the type of battery used for optimal battery life 1. When in menu B, tap button 1 until “BATT” is displayed 2. Tap button 2 or 3 to set battery type to “ALC” (alkaline/non- rechargeable) or “NIMH” (rechargeable) SECURE: Auto-locking Dispensing Door (blocks opening of clear shutter) ON: The clear shutter in the front of the lid is always locked except at the programmed alarm time plus the subsequent “AFTER”...
- Page 8 3. If you DO need to use START, set the Year (YY), Month (MM), Date (DD) and Hour (HH) to when you want e-pill MedTime Plus to wake up. Tap button 2 (decrease) or 3 (increase) and button 1 to move to the next setting.
- Page 9 90 degrees. Congratulations All of SETUP – STEP 1 and all of SETUP – STEP 2 is complete. Your e-pill MedTime Plus is now 100% setup. Refilling the Tray Resetting “DOSES LEFT” Count After Refilling the Tray The FILLED function will reduce “DOSES LEFT”...
-
Page 10: General Information
General Information Secure Mode: Additional Details When operating in secure mode the clear shutter in the lid of the e-pill MedTime Plus only unlocks when the alarm is going off. The clear shutter automatically locks again two (2) minutes after the dose has been dispensed. -
Page 11: Error Handling
Error Handling ERROR 01 or ERROR 04 or ERROR 08: The alarm will sound continuously in the event of the dispenser failing to rotate properly. This might be caused by an obstruction between the body of the dispenser and the internal tray. If an obstruction exists, it needs to be cleared immediately. -
Page 12: Technical Information
Assessment and Observations 1. The e-pill MedTime Plus is a medication reminder and is not suitable for everyone; a patient assessment is important. 2. Users who wilfully try to get at their medication by force will eventually damage the unit. - Page 13 Organizing medications correctly, setting and assigning alarm/dose times and determining what medications go into each slot is the responsibility of you, your caregiver, and/or your health care provider. This e-pill Medication Reminder is only a supplement to any memory system that you currently use to remind yourself to take medications.
