GE 20112 Assembly Instructions

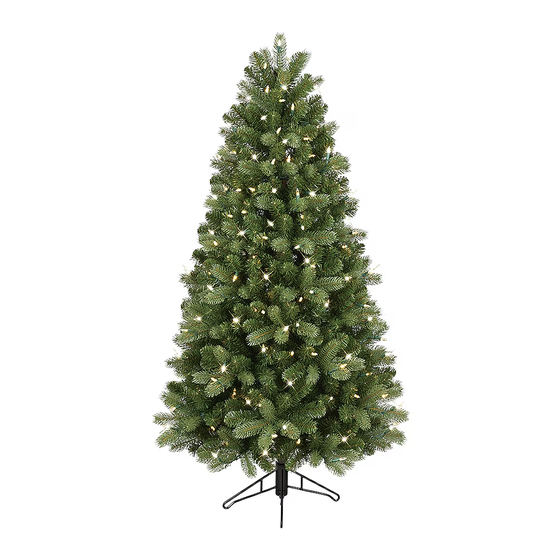

Pre-Lit Christmas Trees
with Easy Light Technology
eliminates cord connections
Color Choice LED Technology
®
Assembly Instructions
Nicolas Holiday Ltd. thanks you for purchasing this pre-lit Christmas
tree. Should you have any problems with your tree, visit us at
www.geholidaylighting.com for more information. You can call our
toll free number at 1-877-398-7337.
Check our website for latest service hours and assembly instruction videos.
TREE ASSEMBLY DIAGRAM
5 FT
TOP
A
Tree Stand
OPEN
SCHEMATIC DIAGRAM
NOTE: No tools required
Tree Sections Tree Stand
5 ft tree 2
Troubleshooting Tips
If the tree does not illuminate, try stepping on the Color Change Foot
Pedal and make certain the wall switch is turned on. If one section of your
tree does not illuminate, check that section for loose or missing bulbs, all
factory connections are properly made or that you properly made all the
electrical connections between each tree section, i.e., tree plug to extension
cord outlet.
DISCLAIMER : DO NOT USE OR INSTALL ANY ADDITIONAL CHRISTMAS LIGHTING
OR ORNAMENTATION THAT IS POWERED BY A LIGHT BULB SOCKET. DOING THIS
MAY RESULT IN DAMAGE TO YOUR CHRISTMAS TREE OR CAUSE PERSONAL
INJURY. DOING THIS, WILL RESULT IN A VOID OF THE LIMITED WARRANTY OF
THIS PRODUCT.
Disconnect the decorative item from the power source before
performing any maintenance or cleaning.
For indoor use only
120V
THIS IS NOT A TOY, FOR DECORATIVE USE ONLY.
GE is a trademark of General Electric Company
and is under license by Nicolas Holiday Ltd.
©2021 Nicolas Holiday Ltd.
9 F., No. 37, Guangfu North Rd., Taipei, Taiwan 10560 All rights reserved.
Printed in China 20112LO
®
Easy Light
Technology
®
Color change
foot pedal
Approx. Asm Time*
Metal 5 – 10 minutes
1
Carefully unpack the carton.
Remove bubble wrap and
inspect the sections of your tree.
The carton should include sections
labeled "A" and "Top", as well as a
Tree Stand.
A
TOP
Tree Stand
2
The tree stand should be open and
set at 90 ° angle.
90 °
Thumbscrew
3
Insert Section labeled "A" into the
tree stand, tighten the thumbscrew.
Then insert the plug into an electrical
wall outlet.
4
Untie RED twist-tie to release branch
panels. All branches should fall into
place with a gentle pull on the outer
layer of branches.
Fig. A. Start at the inner and stagger
the tips. Move each tip up to 40°.
Fig. B. Make tips 2 & 3 to horizontial,
tip 4 to vertical and tips 5 and 6
up to 45°.
A B
1
5
40°
2
90°
Tree Storage
1. Remove the tree's main extension cord
plug from the wall outlet.
2. Starting at the top, disconnect the "TOP"
from section "A". {Fig. 1}
Note: Gently fold the tips in branches
and fold the branches
up toward the center. {Fig. 2}
Care should be taken to avoid
damage to the lights.
3. Remove section "A" from the tree stand
and close tree stand to place into the carton.
4. Refer to the drawing on how to repack
your tree. {Fig. 3}
IMPORTANT: Store your carton neatly in a cool, dry location protected from sunlight
to prolong the tree life and to better keep the light sets in working order. Do not place
a heavy load on the carton to avoid damage or crushing the carton and tree inside.
Spare parts
included
Q'ty
4 pcs
5
To assemble the tree top, properly
align and insert the "TOP" section
into the top of section "A". (See Fig. C)
Adjust branch tips, as needed,
for a fuller look.
Fig. C
Important that you
align the mark
when you connect
two tree sections.
6
Gently press on foot pedal
to select the desired lighting
function. (See below)
45°
4
6
3
90°
1 2
3
5 FT TREE
A
TOP
