Russound BSK-1 - Bluetooth Source Kit Manual

Overview

The BSK-1 Bluetooth Source Kit enables the user of a portable media player, smartphone, or other Bluetooth equipped device to wirelessly transmit audio content to any typical audio system. The BTC-1X Remote Transceiver connects to the BTC-1 Termination Box via a single CAT-5 cable. The CAT-5 cable both powers the transceiver and transmits audio signals from the BTC-1 Termination Box which is then connected to any amplifier or receiver for audio and 12VDC trigger signals. On Russound multiroom audio systems, it can be designated either as a global source for the multiroom system or as a local source for an individual "Primary Zone" with automatic control over zone power, source selection and volume level.

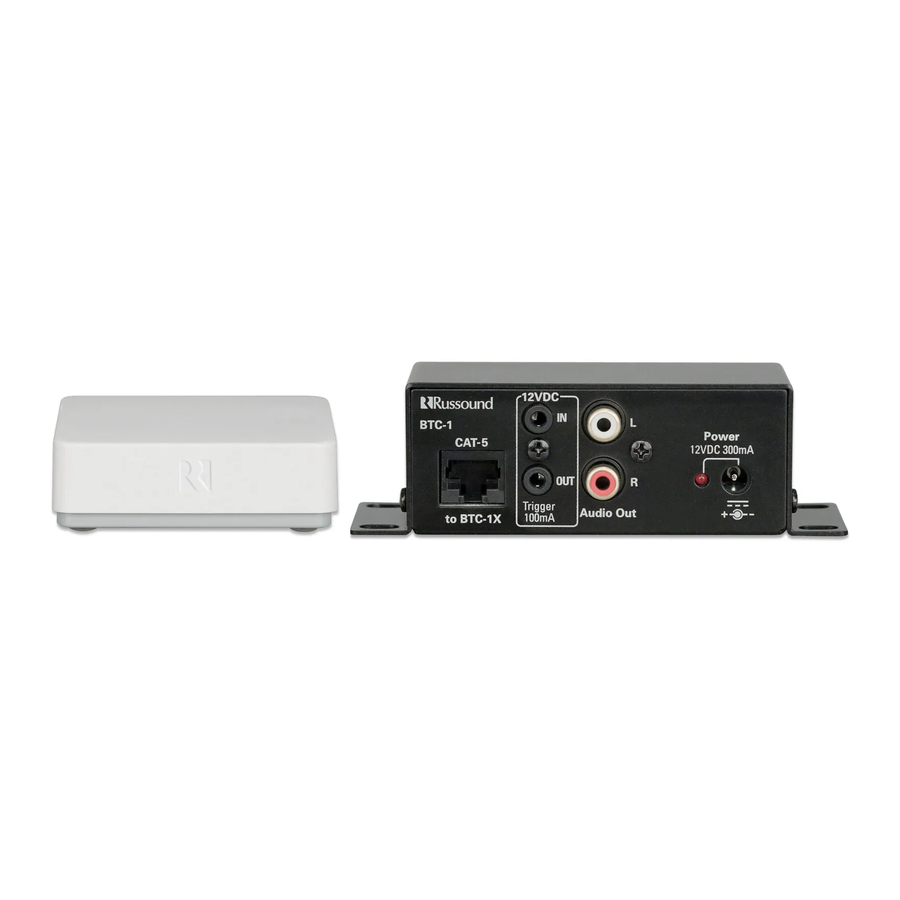

The compact BTC-1X Remote Transceiver can sit on a flat surface or be placed in a standard electrical box in an ideal location so that the user can connect and move throughout the listening area without interrupting the audio stream. Housed in a compact surface-mount metal box, the BTC-1 Termination Box is connected directly to the amplifier or receiver via RCA audio patch cables and an optional 12VDC trigger cable.

Connection Instructions

Read all instructions before starting the installation.

Determine the ideal location for the BTC-1X Remote Transceiver based on whether it will be a global or local source, keeping in mind that structural elements, concrete, and other 2.4 gHz transmitters may interfere with the signal. The BTC-1X Remote Transceiver may be located in a freestanding position or in a standard 18 ci electrical box. The BTC-1X Remote Transceiver must be accessible for programming a custom name later.

Route a single CAT-5 cable from the BTC-1 Termination Box to the BTC-1X Remote Transceiver location. The recommended maximum CAT-5 cable length is 300 feet (91.44 meters) between the BTC-1X and the BTC-1 Termination Box. If the BTC-1X location is freestanding, the CAT-5 cable can be terminated to a RJ-45 wall plate using the T568A standard wiring configuration. A CAT-5 jumper cable would then be connected from the wall plate to the BTC-1X. If the location is in-wall, the CAT-5 cable is routed into an 18 ci or larger US standard electrical work box where it is terminated with a RJ-45 plug which is then connected to the BTC-1X.

The BTC-1 Termination Box should be placed close to the amplifier or receiver (distance not to exceed 25 ft). Install the BTC-1 by either mounting it to a flat surface or to the back of an A/V equipment rack using screws through the holes in the mounting flanges. Terminate the end of the CAT-5 cable connected to the BTC-1X Remote Transceiver with an RJ-45 plug using the T568A standard wiring configuration. Connect the cable to the BTC-1 Termination Box.

Connect RCA audio patch cables from the termination box's audio outputs to the designated source input on the amplifier/receiver.

The provided two conductor 12VDC trigger cable terminated with a 1/8" male plug at each end is connected from the termination box's 12VDC trigger output to the trigger input on the amplifier/receiver. This will wake the device from standby once the BSK-1 is actively paired with a Bluetooth^® enabled source.

If this is to be used as a local source for a Russound MCA-Series controller zone, use WebConfig configuration software to assign it to a Primary Zone and set the Local Source turn on volume level which is unique from the zone turn on volume level.

Connect the included 12VDC power supply to the BTC-1 Termination Box but do not plug into the wall until installation has been completed.

Source configuration for Russound MCA-Series controllers

Configure the MCA-Series Controller using SCS-C5 configuration software.

The BSK-1 is supported by C-Series products with the minimum firmware listed below:

MCA-C3 v4.00.00 or higher
MCA-C5 v5.00.00 or higher
MDK-C5 v5.00.00 or higher
SCS-C5 v5.00.00 or higher
My Russound v2.00.00 or higher

All current firmware update files are located on the Russound Support center, www.russound.com.

The installer configures the source input which the BSK-1 is connected to by selecting the device from the drop-down list of source device types on the source setup page. A drop down list will be presented for selection of a Primary Zone with a default selection of 'None' along with a turn on volume setting for the Primary Zone if this is to be used as a Local Source. If this is to be used as a global source for all zones leave the selection as 'None'. Otherwise, select a Primary Zone from the list and adjust the turn on volume for the Primary Zone for when the BSK1 is being used. Doing so enables the audio sensing for that source input to trigger local source settings for the selected zone as follows:

• Turn on the Primary Zone.
• Select the BSK-1 source for the Primary Zone
• Set the Primary Zone volume for Local Source use

Adjust the Source Volume Trim on the Source Summary page within SCS-C5 so that the BSK-1 output level appropriately matches that of the other audio sources. Save the system configuration to the controller

Assigning a custom name to the device

The BTC-1X comes configured with the Name Russound. To create a more secure network, it is recommended that a unique Name be created at the time of installation and provided to the homeowner.

Follow the steps below to create a unique Name for each BTC-1X.

Note: CAT-5 cable must be connected during programming to provide power to BTC-1X.

1. Plug in the micro USB cable (included) to the USB programming port in the BTC-1X. (see diagram)
2. Connect the micro USB cable to the USB port on the PC.
3. Download the BSK-1 programming software from the dealer portal at www.russound.com.
4. Launch the BTC-1X Configuration Tool software.
5. Enter a unique Name, then Write to device.
6. Disconnect the micro USB cable from the BTC-1X first, then cycle the power on the BTC-1X by removing the CAT-5. Cycling the power will reboot the BTC-1X with the assigned custom Name.

Connection Diagram

Important Considerations

• Disconnect the power cord to the controller before making any connections to the controller.
• Verify that all connections and polarity are correct.
• Keep all power cords away from all signal cables to prevent humming from induced noise.
• Choose reliable signal cables and patch cords.
• Avoid running audio cords or CAT-5 signal cables close to house electrical wiring for any distance. If you have to run them parallel, make sure to space the wires at least two feet from the AC line. If you need to cross an AC line it should be at a 90° angle.

Testing

Verify the red power LED is lit on the BTC-1 Termination Box and the green LED is lit on the BTC-1X Remote Transceiver.

Turn on a Bluetooth^® enabled source i.e. media player, smartphone, or computer. Open the Bluetooth menu and enable the pairing feature on the device. Select the Russound BSK-1 product by its configured name from the list of available Bluetooth enabled products.

Select the desired audio from the device and start the playback.

For Local Source configurations

The Local Source feature is designed for use when the Primary Zone is in the Off state and is not available if the Primary Zone is already in use.

When an audio output signal from the BSK-1 is detected by the MCA-Series controller, the Primary Zone will turn on, select the BSK-1 source and set the zone's volume level based on the settings made through WebConfig software.

The volume on the source device should be at its highest setting to assure the audio output level from the BSK-1 will be strong enough to detect and activate the Local Source feature. If the audio signal level is not strong enough for the MCA-Series controller to detect, the local source feature will not activate or, if already in use, will shut the local source feature off after 10 minutes of no audio signal detection.

For non-Local Source configurations

Turn on a zone and select the BSK-1 source input and adjust the volume to the desired level. Audio from the Bluetooth enabled source should be heard throughout the zone.

Normal Use

Only one device at a time may be actively paired with the BSK-1 in the multiroom system. Activate the Bluetooth feature from the source device and connect or 'pair' with the BSK-1 by selecting its assigned name. If being used as a Local Source and the Primary Zone is in the Off state, it will automatically be turned on, select the BSK-1 source input and volume level adjusted. Otherwise manually choose your music and start playing. Choose the appropriate source input on the Russound system and enjoy the music. When finished, disconnect your device from the BSK-1 or turn off the Bluetooth feature of the source device. If you move your device out of range (15M without obstruction) it will automatically sever the connection. If you are unable to connect to the BSK-1, another device within range may be connected.

Specifications

BTC-1X Remote Transceiver

Power requirements: supplied by BTC-1 via CAT-5

Frequency: 2,400-2,483.5 MHz

CAT-5 connection: RJ-45 (T568A standard)

Dimensions: 70mm x 56mm x 26mm (W x D x H

Weight: 3.1 ounces

Max cable length: 300' (CAT-5) BTC-1X to BTC-1, 50', (15M) without obstruction|

BTC-1 Termination box

Power requirements: 12VDC 300mA

CAT-5 connection: RJ-45 (T568A standard)

Trigger Output: 12VDC 100 mA Max

Trigger Input: 12VDC

Audio Connections: 2 RCA

Dimensions: 122mm x 51mm x 38mm (W x D x H)

Weight: 7.3 ounces

Max cable length: 25' (RCA cable) BTC-1 to Amplifier/ Receiver, 300' (CAT-5) BTC-1X to BTC-1
