SD-03
WARNING:
IT IS VITAL FOR THE SAFETY OF ALL PERSONS INSTALLING AND USING THIS OPENER TO FOLLOW
THE INSTALLATION INSTRUCTIONS AND SAFETY WARNINGS. FAILURE TO COMPLY MAY RESULT IN SERIOUS
PERSONAL INJURY AND/OR PROPERTY DAMAGE AND DAMAGE TO THE OPENER AND DOOR
Installation & OWNERS MANUAL
Advertisement
Table of Contents
Related Manuals for Doortec DOORMAN SDO1
Summary of Contents for Doortec DOORMAN SDO1

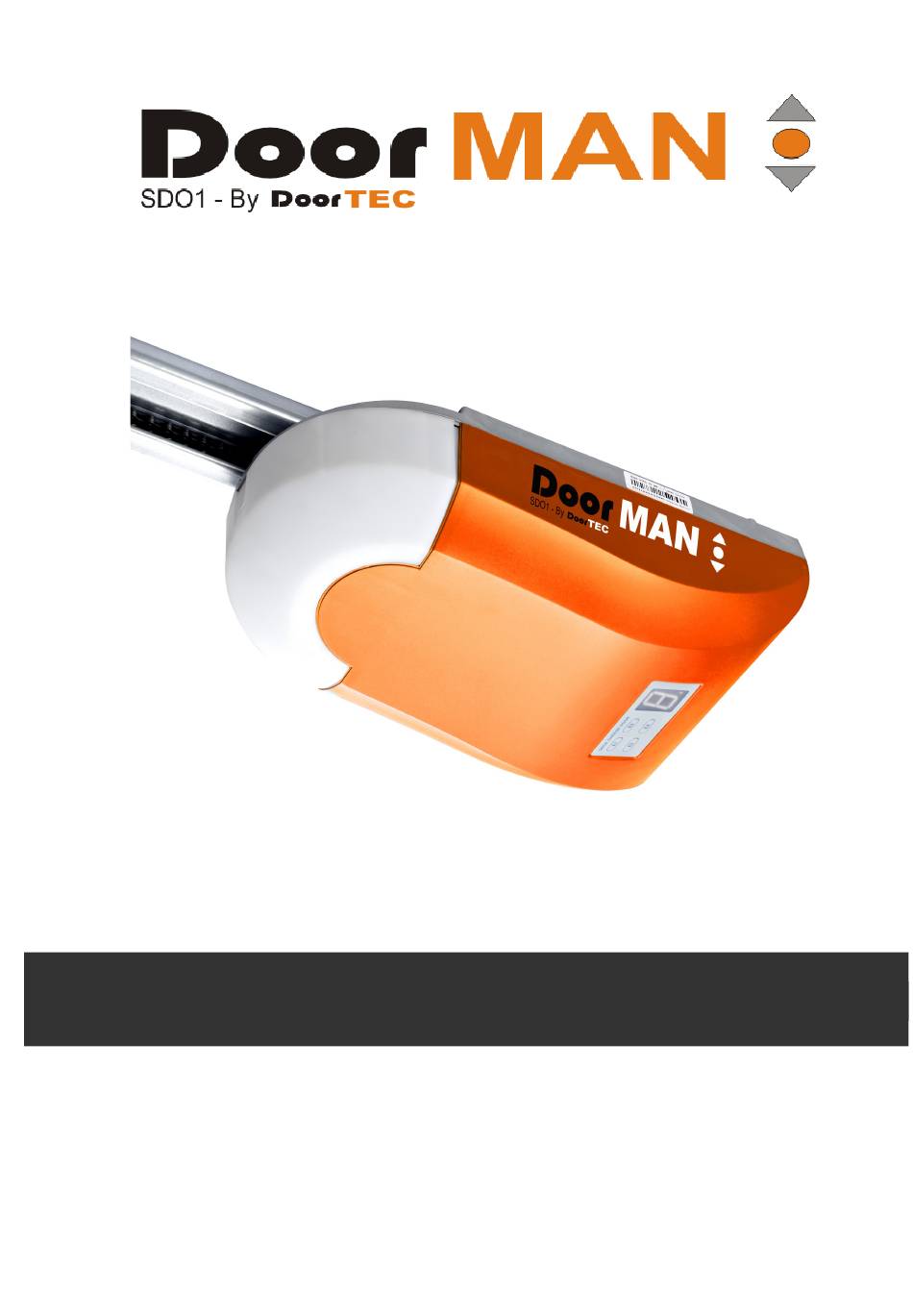

- Page 1 SD-03 WARNING: IT IS VITAL FOR THE SAFETY OF ALL PERSONS INSTALLING AND USING THIS OPENER TO FOLLOW THE INSTALLATION INSTRUCTIONS AND SAFETY WARNINGS. FAILURE TO COMPLY MAY RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE AND DAMAGE TO THE OPENER AND DOOR INSTALLATION &...
- Page 2 1. One year manufacturer’s Warrantee The DOORMAN opener carries a 12 month factory warrantee from date of invoice. Faulty openers will be repaired or replaced by the sole discretion of AUTOMATION AFRICA. The labour costs involved for replacement or repairs will be for the customers account and is not covered by this warrantee.
- Page 3 2.Technical Specifications Reception Power Input 220VAC±10% 50～60Hz 433.92MH frequency Motor 24VDC Decoding Rolling Code Transmitter Working >-20～50℃ 27A 12V Battery power Temperature Globe Relative Humidity 24V 5W ≦90% Courtesy light Open and close force 800N 3 minutes time 3.Installation 3.1 Recommended Tools...
- Page 4 3.2 Installing the Operator and Rail Optional For Steel Rail...
- Page 5 4.Control panel 5.Optional Terminals and Connections Photo beam...
- Page 6 6.Programming the Operator Preparation Keep trolley locked, pull and/or push the door by hand, make 6.1.1 sure the trolley connects with the traveller. Turn on the power, the courtesy light is on for several seconds, the LED displays the numbers from “ 9 ” to “ 1 ”. 6.1.2 The operator turns to standby mode.
- Page 7 Force Adjustments Press and hold SET, the unit displays “ 3 ”. 6.5.1 Press SET once again, it will show the current setting. Press UP to increase the force by one degree or press 6.5.2 DOWN to decrease by one degree. Maximum degree is “...
- Page 8 7.Owners’ Guide Attention At the first time of using the door, please test the driving system to see if it moves smoothly. (Test method: unlock 7.1.1 the traveller, pull and push the door by hand.) Connect to appropriate power socket with earth 7.1.2 Use the transmitters only while the door is in sight.
