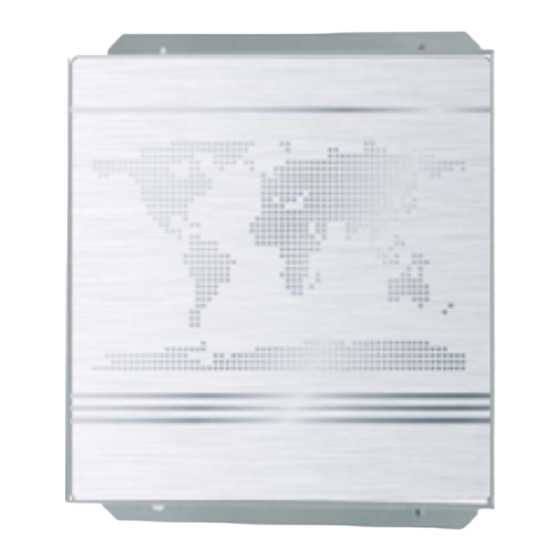

- Page 1 OWNER'S MANUAL MD-LonGW64/E / K01-LON Thank you very much for purchasing our product. Before using it, please read this manual carefully and keep it for future reference...
- Page 3 MD-LonGW64/E / K01-LON MD-LonGW64/E / K01-LON Lonworks BMS gateway: K01-Lon The new LonWorks gateway K01-Lon has been compliance with Lonworks standard and can be connected up to64 indoor units to the LonWorks network directly. It can connect multiple refrigeration systems and do not need to connect KCC-64.For full V4 plus system can be connected KCC-64, and it must be connected...
- Page 4 General Function Monitoring Controlling ON/OFF status report Mode setting for single unit Running mode status report Mode setting for all units Fan speed status report Stop setting for single Set temp. value report Emergency stop for single unit Indoor temp. value repot Fan speed setting for single unit Error status report Fan speed setting for all units...
- Page 5 System configure Indoor units can be connected to the K01-Lon gateway, and we can gather all the units’ information and control the indoor unitsthroughK01-Lon . As a result, the indoor units need firstly connecting to the computer to make a central monitoring system. The composition of the whole network is as follows: This connection method is suitable for all of the air conditioners system.
- Page 6 Connecting ports LON- and LON+ port: The ports should be connected to the computer’s COM port, using the RS-232 communicative standard. X Y E port:These ports use a removable connecting way to help user connect the LonWorks network conveniently. POWER: This port should be connected to the AC220V power adaptor. External View Dimensions: 31.9*25.1*6.1 Notes:There are three installation methods as the following figure.
