Niko 410-00351 Operating Manual

Before installing the device, carefully read this operating manual.
1. DESCRIPTION

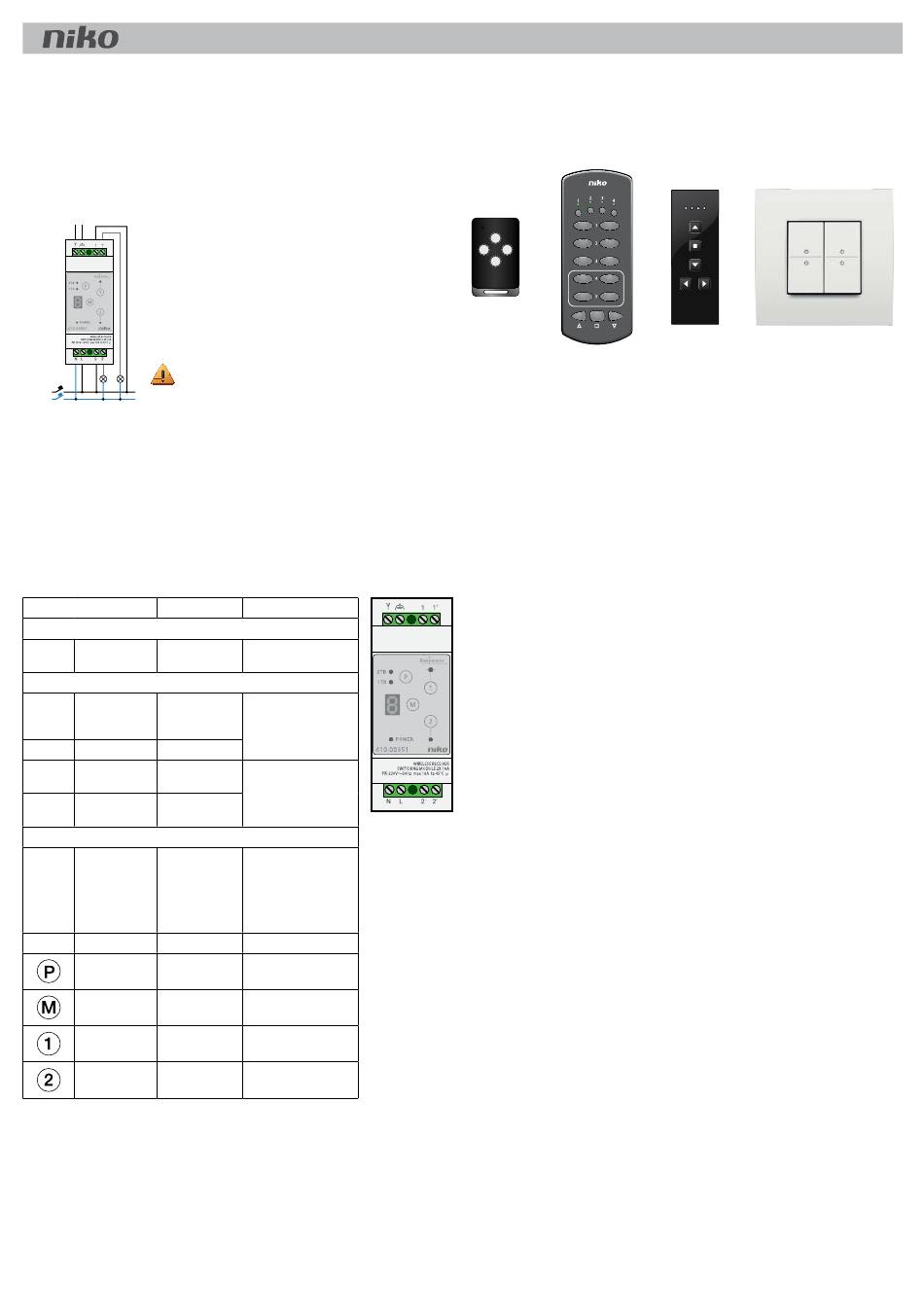

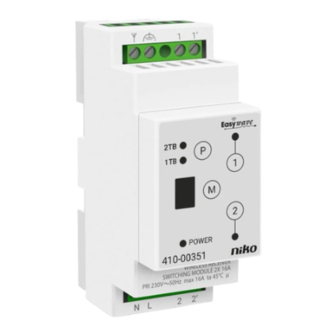

410-00351 is a two channel receiver with two potential free contacts. The receiver can be operated in ON/
OFF, PULSE and PUSH BUTTON modes. The ON/OFF mode can also be used with two TIMER functions and a
LOGIC function.
2. INSTALLATION
The device is intended for installation on a standard DIN rail (35 x 7.5 mm).
1. Switch off the power supply.
2. Mount the 410-00351 onto the rail.
3. Connect the cables for the power supply and for the devices in accordance with the connection diagram.
This product must be secured with a miniature circuit breaker (MCB)
of max. 16 A in the electrical cabinet. The MCB rating is limited by
L
national installation rules.
230 V~
N
4. Switch on the supply voltage.
5. Program the receiver according to the operating manual.
In unfavourable environmental conditions, the external antenna 410-00359 can be used to improve wireless
reception (to be bought separately).
3. OPERATION AND USE
The device is intended for mounting on a DIN rail in a distribution box or a control cabinet in dry rooms. The
unit may only be used as a wireless receiver for activating electrical devices in accordance with the load table
(see § 5). To be operated with wireless transmitters following the Easywave protocol.
The manufacturer shall not be liable for any damage caused by improper or non-intended use.
3.1. Display
Display Operating status
LED GREEN
Power Power Supply voltage is
on, LED is lit
LED RED
2TB 2-button operation LED 2TB flashes
when a wireless
signal is detected
1TB 1-button operation
1 LED output 1 Output 1 switched
flashes
2 LED output 2 Output 2 switched
flashes
Digital display
O...L
Upon receiving
a programmed
transmission code,
the corresponding
operating mode is
displayed for 2 s.
Operating Operating status
Programming
button
Mode button
Channel 1 button Manually switch
output ON/OFF.
Channel 2 button Manually switch
output ON/OFF.
Note: If you change the programming mode, all outputs are switched off and no switching operations are possible.
If you return to operating mode, the outputs remain switched off.
3.2. Operation
3.2.1. 2-BUTTON OPERATION
In a 2-button operation (2TB), the transmitter buttons A and C switch the output ON or start or retrigger the
TIMER functions. The transmitter buttons B or D switch OFF or stop the TIMER function.
Only one transmission button must be programmed in the receiver. The code for the second button is assigned
automatically. See § 4.1 for information about programming a 2-button operation.
Note: If a PULSE or PUSH BUTTON operating mode is programmed in 2-button operation, both buttons will
always perform the same function.
EN 1
Programming mode
• Displays the selected
operation
• Signals the programming
or delete mode
Displays the output se-
lected for programming
Displays the selected
operating mode.
Displays the number of
seconds during Timer
programming
Programming mode
Start programming mode
and select an operation
Select an operating mode
Select output 1
Select output 2
3.2.2. 1-BUTTON OPERATION
In 1-button operation (1TB), each button switches ON and OFF alternately or triggers a PULSE. Each button can
start and retrigger the TIMER and actuate the PUSH BUTTON operating mode. Each button must be individually
programmed in the receiver. There is no automatic assignment. See § 4.1 for information about programming
a 1-button operation.
Note: The LOGIC function cannot be used with 1TB. Therefore, the set-up is ignored in this operating mode.
A B
A
A B
C D
A B
B
A B
C D
05-317
A C B
05-312
410-00351
A
A C
C
B
B D
K
410-00002
05-318
PM410-00351R23062
