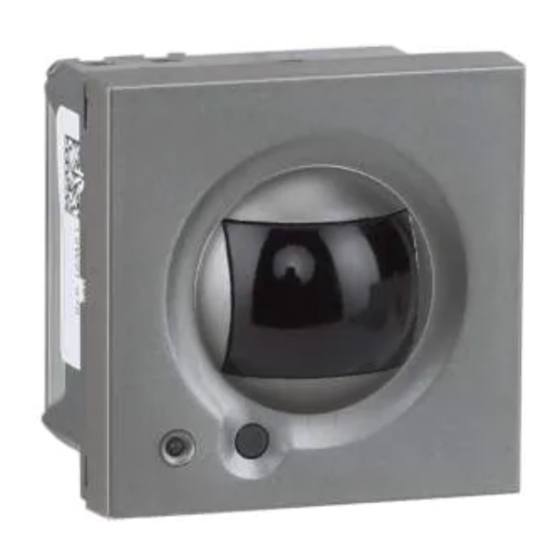

IR receiver
Description
The receiver can add the remote control by means of infrared ray controls 882 31/
882 32 to the manual control or replace the manual control by the remote control.
It is possible to associate to the remote control pushbuttons the controls intended
for 1-relay actuators for single loads and 2-relay actuators for double loads (rolling
shutter motor etc.), the scenario management, and the control of sound systems and
video door entry systems. In addition to the IR receiving lens, the front of the device
shows a programming pushbutton and a notification LED, for notification that the IR
signal sent by the remote control has been received, and notification of the program-
ming procedure.
Technical data
Power supply from SCS BUS: 18 – 27 Vdc
Consumption :
8.5 mA
Operating temperature:
5 – 35 °C
Dimensional data
Size: 2 flush-mounting modules
Depth: 20.7 mm
3
A
PL1/PF1
PL2/PF2
PL3/PF3
PL4/PF4
M
6

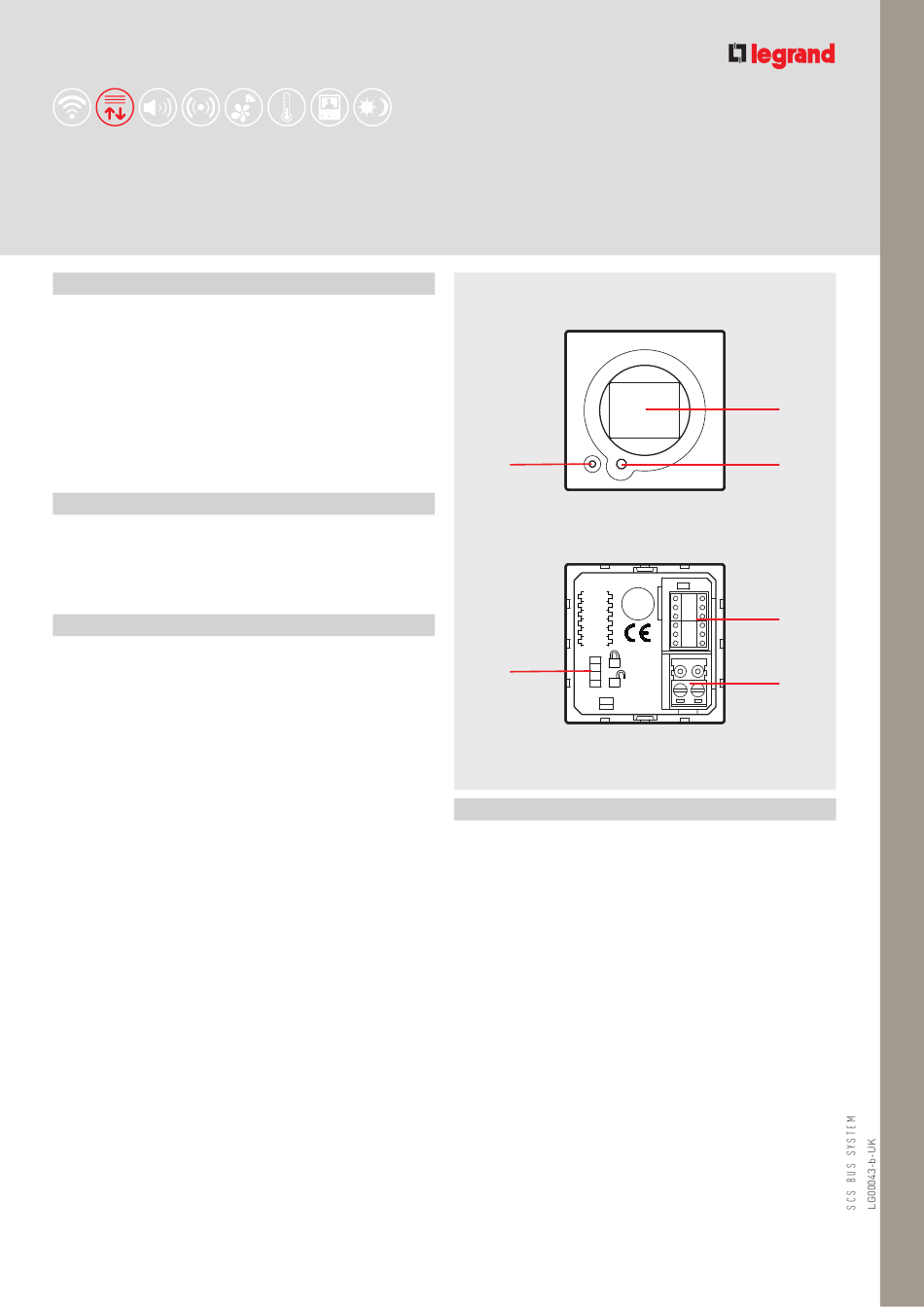

Legend
1.
Receiving lens
2.
Programming/reset pushbutton
3.
LED
4.
Configurator housing
5.
BUS
6.
Switch for programming lock/unlock
t e C H N I C A L S H e e t
5739 00
5739 01
1
2
4
5
1
Advertisement
Related Manuals for LEGRAND 5739 00
Summary of Contents for LEGRAND 5739 00
- Page 1 C H N I C A L S H e e t 5739 00 IR receiver 5739 01 Description The receiver can add the remote control by means of infrared ray controls 882 31/ 882 32 to the manual control or replace the manual control by the remote control.
- Page 2 5739 00 5739 01 Configuration It is possible to set 5 different operating modes in the IR receiver according to the configuration of the A, PL1, PL2, PL3, PL4 and M positions. Mode Functions which can be performed Repeating of 4 generic controls (ON/OFF, UP/DOWN) with the 4 remote control keys. The receiver saves the controls required in the installation A - remote control 1 –...
- Page 3 C H N I C A L S H e e t 5739 00 5739 01 Position PL1/ Position PL2/ Position PL3/ Position PL4/ Function Type of control Position A Cyclic ON/OFF functioning for short pres- Light point in the room indicated in R 1 –...
- Page 4 5739 00 5739 01 2) Mode “B” (advanced scenarios) M= CEN With this mode, the remote control, 882 31 is used as "scenario control" for the The association between one or more remote control pushbuttons with the scenarios activation of one or more advanced scenarios saved in the Programmer, 035 65. The IR...
- Page 5 C H N I C A L S H e e t 5739 00 5739 01 4) Mode “D” (scenario module control) M= 6 This mode enables creating, deleting or changing the scenarios contained in the To delete a scenario, proceed as follows: scenario module, 035 51, and to recall them using the remote control.
