(US) HDMI® ULTRA-SLIM HDBASET + RS232 AND IR OVER CAT
EXTENDER BOX RECEIVER - 4K 60HZ
(FR) HDMI ULTRA-SLIM HDBASET + RS232 AND IR OVER CAT EXTENDER
BOX RECEPTEUR - 4K 60HZ
(ES) HDMI ULTRA-SLIM HDBASET + RS232 E IR OVER CAT EXTENDER
BOX RECEPTOR - 4K 60HZ
(DE) HDMI ULTRA-SLIM HDBASET + RS232 UND IR ÜBER CAT EXTENDER
BOX EMPFÄNGER - 4K 60HZ
(IT) HDMI ULTRA-SLIM HDBASET + RICEVITORE EXTENDER BOX RS232
E IR OVER CAT - 4K 60HZ
Model C2G30015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2G C2G30015 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND C2G C2G30015

  • Page 1 (US) HDMI® ULTRA-SLIM HDBASET + RS232 AND IR OVER CAT EXTENDER BOX RECEIVER - 4K 60HZ (FR) HDMI ULTRA-SLIM HDBASET + RS232 AND IR OVER CAT EXTENDER BOX RECEPTEUR - 4K 60HZ (ES) HDMI ULTRA-SLIM HDBASET + RS232 E IR OVER CAT EXTENDER BOX RECEPTOR - 4K 60HZ (DE) HDMI ULTRA-SLIM HDBASET + RS232 UND IR ÜBER CAT EXTENDER BOX EMPFÄNGER - 4K 60HZ...
  • Page 3: Table Of Contents

    Table of Contents (us) Table des matières (fr) Tabla de contenidos (es) Product Overview ..........2 Aperçu du produit ..........6 Descripción general del producto ....... 10 Features ............3 Caractéristiques ...........7 Caracteristicas ............ 11 Package Contents ..........3 Contenu de l’emballage ........7 Contenidos del paquete ........
  • Page 4: Product Overview

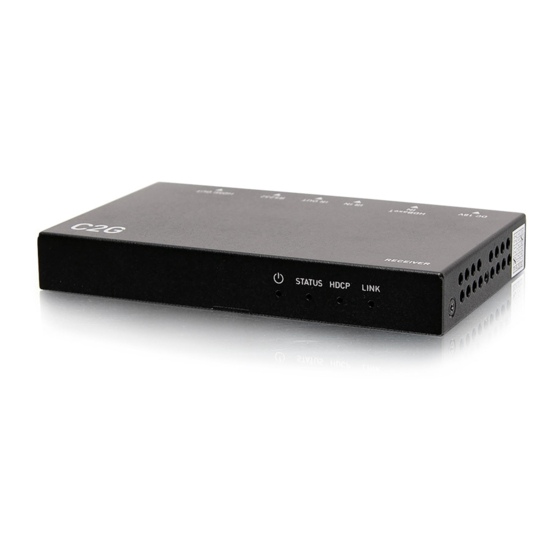

    (us) (us) HDMI Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4k 60hz Product Overview Rear Panel Front Panel Receiver Receiver STATUS HDCP LINK IR IN IR OUT TX/RX/G HDMI OUT ANEL ESCRIPTION RONT ANEL ESCRIPTION On: The device is powered on.
  • Page 5: Features

    (us) (us) (us) HDMI Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4k 60hz Package Contents Features Supports HDMI 1.4 and HDCP 2.2 compatibility 1 x Receiver • • Supports resolutions up to 4K@60 4:2:0 8bit 1 x 18V 1A Power Adapter •...
  • Page 6: Rs232 Pass-Through

    (us) (us) HDMI Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4k 60hz RS232 Pass-through RS232 port can be used for bi-directional RS232 signal pass-through between the transmitter and receiver. Steps to set up for RS232 pass-through: 1.
  • Page 7: Notes

    (us) HDMI Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4k 60hz Notes ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________...
  • Page 8: Aperçu Du Produit

    (fr) HDMI Ultra-slim HDBaseT + RS232 And IR Over Cat Extender Box Recepteur - 4k 60hz Aperçu du produit Panneau arrière Panneau avant Recepteur Recepteur STATUS HDCP LINK IR IN IR OUT TX/RX/G HDMI OUT ANNEAU ARRIÈRE ESCRIPTION ANNEAU AVANT ESCRIPTION Verrouillage du port d'alimentation, connectez-vous à...
  • Page 9: Caractéristiques

    (fr) HDMI Ultra-slim HDBaseT + RS232 And IR Over Cat Extender Box Recepteur - 4k 60hz Contenu de l’emballage Caractéristiques Prend en charge la compatibilité HDMI 1.4 et HDCP 2.2 • 1 x Receveur • Prend en charge les résolutions jusqu'à 4K @ 60 4: 2: 0 8 bits •...
  • Page 10: Pass-Through Rs232

    (fr) HDMI Ultra-slim HDBaseT + RS232 And IR Over Cat Extender Box Recepteur - 4k 60hz Pass-through RS232 Le port RS232 peut être utilisé pour le passage bidirectionnel du signal RS232 entre l'émetteur et le récepteur. Étapes à suivre pour configurer le relais RS232: 1.
  • Page 11: Remarques

    (fr) HDMI Ultra-slim HDBaseT + RS232 And IR Over Cat Extender Box Recepteur - 4k 60hz Remarques ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________...
  • Page 12: Descripción General Del Producto

    (es) HDMI Ultra-slim HDBaseT + RS232 E IR Over Cat Extender Box Receptor - 4k 60hz Descripción general del producto Panel posterior Panel frontal Receptor Receptor STATUS HDCP LINK IR IN IR OUT TX/RX/G HDMI OUT ANEL POSTERIOR ESCRIPCIÓN ANEL FRONTAL ESCRIPCIÓN Puerto de alimentación de bloqueo, conéctelo al adaptador de LED de...
  • Page 13: Caracteristicas

    (es) HDMI Ultra-slim HDBaseT + RS232 E IR Over Cat Extender Box Receptor - 4k 60hz Características Contenido del paquete Admite compatibilidad con HDMI 1.4 y HDCP 2.2 • 1 x Receptor • Admite resoluciones de hasta 4K @ 60 4: 2: 0 8 bits •...
  • Page 14: Paso De Rs232

    (es) HDMI Ultra-slim HDBaseT + RS232 E IR Over Cat Extender Box Receptor - 4k 60hz Paso de RS232 El puerto RS232 se puede utilizar para el paso de señal RS232 bidireccional entre el transmisor y el receptor. Pasos para configurar el paso a través de RS232: 1.
  • Page 15: Notas

    (es) HDMI Ultra-slim HDBaseT + RS232 E IR Over Cat Extender Box Receptor - 4k 60hz Notas ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________...
  • Page 16: Produktübersicht

    (us) (de) HDMI Ultra-slim HDBaseT + RS232 Und IR Über Cat Extender Box Empfänger - 4k 60hz Produktübersicht Rückseite Frontblende Empfänger Empfänger STATUS HDCP LINK IR IN IR OUT TX/RX/G HDMI OUT ÜCKSEITE ESCHREIBUNG RONTBLENDE ESCHREIBUNG Schließen Sie den Stromanschluss an das angeschlossene DC 18V- Ein: Das Gerät wird mit Strom versorgt.
  • Page 17: Eigenschaften

    (us) (de) HDMI Ultra-slim HDBaseT + RS232 Und IR Über Cat Extender Box Empfänger - 4k 60hz Eigenschaften Paketinhalt Unterstützt HDMI 1.4- und HDCP 2.2-Kompatibilität • 1 x Empfänger • Unterstützt Auflösungen bis zu 4K @ 60 4: 2: 0 8bit •...
  • Page 18: Rs232 Pass-Through

    (us) (de) HDMI Ultra-slim HDBaseT + RS232 Und IR Über Cat Extender Box Empfänger - 4k 60hz RS232 Pass-Through Der RS232-Port kann für den bidirektionalen RS232-Signaldurchgang zwischen Sender und Empfänger verwendet werden. Schritte zum Einrichten des RS232-Pass-Through: 1. Verbinden Sie ein RS232-Master- (oder Slave-) Gerät mit einem RS232-Kabel mit dem RS232-Port des Senders. 2.
  • Page 19: Notes

    (us) (de) HDMI Ultra-slim HDBaseT + RS232 Und IR Über Cat Extender Box Empfänger - 4k 60hz Anmerkungen ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________...
  • Page 20: Panoramica Del Prodotto

    (us) (it) HDMI Ultra-slim HDBaseT + Ricevitore Extender Box RS232 E IR Over Cat - 4k 60hz Panoramica del Prodotto Pannello Posteriore Pannello Frontale Ricevitore Ricevitore STATUS HDCP LINK IR IN IR OUT TX/RX/G HDMI OUT ANNELLO OSTERIORE ESCRIZIONE ANNELLO RONTALE ESCRIZIONE Porta di alimentazione con blocco, collegare...
  • Page 21: Caratteristiche

    (us) (it) HDMI Ultra-slim HDBaseT + Ricevitore Extender Box RS232 E IR Over Cat - 4k 60hz Contenuto della confezione Caratteristiche Supporta la compatibilità HDMI 1.4 e HDCP 2.2 • 1 x Ricevitore • Supporta risoluzioni fino a 4K @ 60 4: 2: 0 8 bit •...
  • Page 22: Pass-Through Rs232

    (us) (it) HDMI Ultra-slim HDBaseT + Ricevitore Extender Box RS232 E IR Over Cat - 4k 60hz Pass-through RS232 La porta RS232 può essere utilizzata per il passaggio del segnale RS232 bidirezionale tra il trasmettitore e il ricevitore. Passaggi per configurare il pass-through RS232: Collegare un dispositivo RS232 Master (o Slave) alla porta RS232 del trasmettitore con un cavo RS232.
  • Page 23: Appunti

    (us) (it) HDMI Ultra-slim HDBaseT + Ricevitore Extender Box RS232 E IR Over Cat - 4k 60hz Appunti ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________...
  • Page 24 FCC Caution - §15.21: 6500 Poe Avenue "Changes or modifications not expressly approved by the party responsible Dayton, OH 45414 for compliance could void the user's authority to operate the equipment." Phone 800.293.4970 www.c2g.com © 2020 Legrand All Rights Reserved rev.04/21 Manual_C2G30015_R12...
