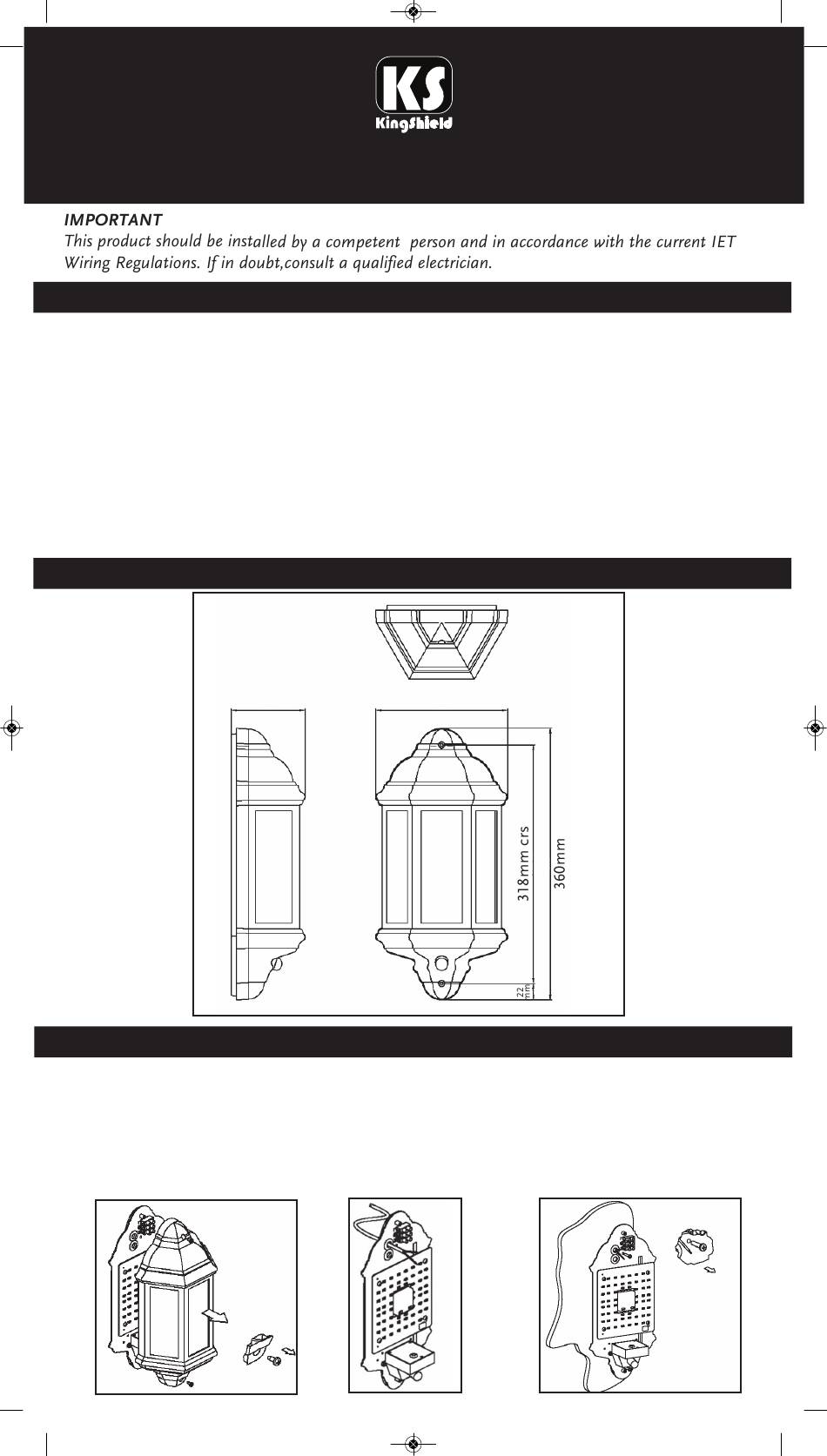

KingShield PLLED3PIRB Installation Instructions

PLLED3PIRB & W Ins.qxp_a 27/01/2015 16:36 Page 1
IMPORTANT
• Never look directly into the LED light source.
• Do not install near timed light sources or in shaded areas as the PIR/ light sensor could be
inadvertently triggered.
• Avoid installing near to air streams or air conditioning outlets.
• Do not cover the fitting
• Ensure that all electrical connections are secure & that there are no loose strands.
• Clean this fitting with a soft damp cloth. Do not use any chemical or abrasive cleaners.
• Do not jet wash as the lantern is not rated for high pressure jets of water
• The lantern is not dimmable
• Never attempt to repair this unit yourself, there are no user serviceable parts
Choose the desired position for your new lantern and before making any fixing holes check that there
are no obstructions hidden beneath the mounting surface as pipes or cables.
1. Remove the front cover fixing
screws on the main housing
of the half wall lantern and
remove the cover. (Dia.1)
Remove screws
from front cover
Installation Instructions for -
IP44 LED Half Wall Lanterns - 3 Sided c/w PIR
Part Nos: PLLED3PIRB & PLLED3PIRW

GENERAL INFORMATION

DIMENSIONS

98mm

INSTALLATION

2. Fit the mains cable
through the lanterns
back panel. (Dia.2)
Dia.1
Remove
front cover
176mm
3. Position and fix the lantern back panel
to a suitable solid surface, ensuring
that the orientation is correct and
using the fixings supplied. (Dia.3)
Dia.2
Dia.3
Fit back
panel in
desired
position
