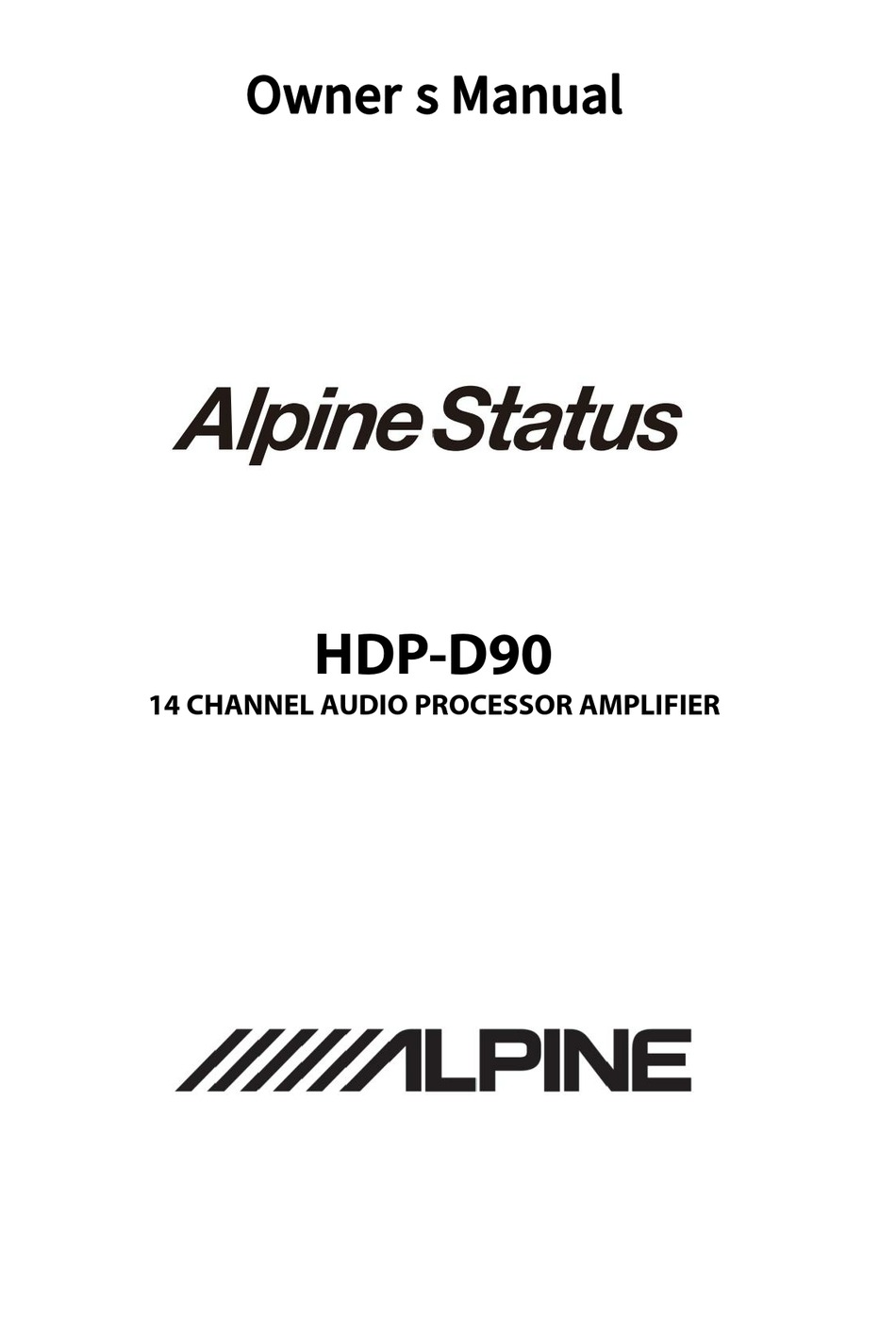

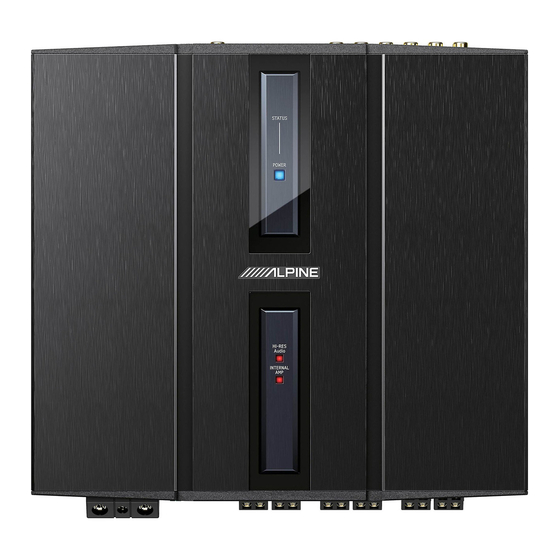

- Page 1 Owner′s Manual HDP-D90 14 CHANNEL AUDIO PROCESSOR AMPLIFIER...
-
Page 2: Table Of Contents
English Contents Restore Factory Settings .....11 Shutdown delay setting ....11 Instructions Language Settings ...... 11 View About ........11 Encryption Settings ......11 Instructions ............1 Master volume setting ....12 Warning ............1 Function Page Selection ....12 Points for Safe Use ......1 Home Page ........ -
Page 3: Instructions
If warning signals (train intersections, etc.) are failure to follow the instructions in this very dangerous and may cause accidents. In manual causes malfunctions, Alpine will not addition, excessive volume may cause hearing assume any responsibility. loss. - Page 4 Otherwise, it may cause personal injury or damage to the product. Please return this Installation location product to an authorized Alpine dealer or the This machine cannot be installed in any of the nearest Alpine service center for repair.
-
Page 5: Copyright Notice
Copyright Notice The Bluetooth® word mark and logo are registered trademarks held by Bluetooth SIG, Inc. Alpine Electronics has obtained permission to use the word mark and logo, and other trademarks and trade names belong to their respective owners. -
Page 6: Preparation Work
Preparation work Accessory List Machine Screw×4 Self-tapping Screw×4 Mounting Brackets ×2 2×13P Input Cable USB 2.0 Cable External Bluetooth Module Main Unit 4 EN... -
Page 7: Connections And Functions
Connections and Functions 5 EN... -
Page 8: Connections And Functions
If you want to attach an optional noise suppressor, please try to keep it away from the machine when connecting. Your Alpine dealer has various types of noise suppressors, please contact them for details. Your Alpine dealer is proficient in noise prevention methods, please consult your dealer for details. 6 EN... -
Page 9: Indicators
Indicators ① Power and Protection Indicator ② Hi-Res Signal Indicator Within 2 seconds of booting, the indicator When the optical fiber/coaxial input signal is light will show red; Hi-Res standard signal, the indicator light is In the protection state, the indicator light always on (red light);... -
Page 10: Computer Software
Before connecting the HDP-D90 machine to the computer, please install the HDP-D90 computer software correctly. After installing the HDP-D90 software, you can tune and set the HDP-D90 machine on the computer. *This function is mainly for manufacturers and distributors. -
Page 11: Connection And Temperature Display
⑦ Function page selection. computer can be loaded as the current ⑧ Editing area of function page machine working scene. Connection and Temperature Display Save as PC Preset The current machine work scene file can be Setting items: saved to the computer for later recall. Connection and temperature display Setting content: Load All Presets... -
Page 12: Signal Generator Settings
Restore factory settings Setting content: generator/music output Shutdown delay (initial setting) Language About Input Link Settings Signal Generator Settings Select [Input link settings] from the option page to enter the input link settings page. Select [Signal Generator] from the option page ... -
Page 13: Firmware Update Settings
Built-in AMP page Setting item: restore factory settings Click the "OK" button to restore all the data set in the machine to the factory default state. Shutdown delay setting Select [Shutdown Delay] from the options page Setting item: Built-in AMP to enter the shutdown delay setting page. -
Page 14: Master Volume Setting
Encryption/decryption page <Setting item> Home page Main source selection Main source attenuation setting Mix source selection Preset sound effects Input EQ Type selection Setting item: encryption/decryption Channel mute Encryption: Enter the password to encrypt Link settings the tuning data. EQ adjustment Decryption: You can enter a password, clear Equalizer settings... -
Page 15: Main Source Selection
Main Source Selection effects. Click [Save] to store the adjusted sound effect data. Click the right mouse button to delete the preset sound effects.Or [Save] 6 groups of Setting items:Main source selection preset sound effects can be set Setting content:Optical/Coaxial/Bluetooth/ Setting items:Preset sound effect settings High Level/AUX Setting content:Call/save/delete... -
Page 16: Channel Mute Setting
Setting items:Channel mute Setting content:Mute/off Link Settings Link group page Click the channel type custom box. Select the input channel type in the pop-up window. Set the input type in the input type setting dialog box. There are tweeter, midrange, woofer, subwoofer and full-range options in the front;... -
Page 17: Equalizer Settings
adjustable. Equalizer Settings GEQ page 1. When there is EQ adjustment, the direct equalization button appears. EQ gain step 2. Through Equalization: When the current Setting items:EQ gain step channel equalizer is turned on, this button Setting content:0.1 (initial setting)/0.5/1 will be displayed [ ], click [Through EQ curve display... -
Page 18: Channel Settings
Channel Settings Output EQ Output EQ page Setting items:Preset sound effect settings Setting content:Gain/phase Setting items:Output EQ 1. Gain setting: The gain can be adjusted by Setting content:Type selection/channel directly inputting the value, scrolling the mute/link setting/EQ adjustment/Bridge Mode mouse wheel, the up and down keys on the equalizer setting/channel... -
Page 19: Delay
and the purpose of mixing and mixing can be Delay achieved by adjusting the volume of each sound source in the channel. In the passive input mode, the frequency division is set by the PC terminal; in the active input mode, the frequency division is set by the original vehicle host itself. - Page 20 Information on the disposal of waste electrical electronic equipment batteries (applicable to countries that adopt a garbage collection system) If you want to dispose of this product, do not mix it with general household waste. In accordance with regulations that require proper disposal,...
-
Page 21: Specifications
Specifications Performance Power Output Rated: 4Ω, 14.4V, 10%THD CH1～8: 50W, CH9～12: 80W THD+N RCA: 1W into 4Ω ≤0.01% RCA: A-wt ≥100dB High level 26Vpp Input Voltage 8Vpp High level CH1～8: 40Vpp, CH9～12: 50Vpp Output Voltage 10Vpp Frequency Response 1W into 4Ω 20Hz～40kHz General High level... -
Page 22: Function Parameter
Function Parameter 12ch High-level 2ch RCA Optical / Coaxial Digital Signal Inputs Bluetooth Audio 12ch High-level Outputs 10ch RCA Output Channel Signal Gain Range: -60dB～+6dB Type: Parametric / Graphic Equalizer Frequency: 20Hz～40kHz (1Hz steps) Output Signal Equalizer Q value: 0.404～28.852 Gain: -12.0dB～+12.0dB (0.1dB steps) pass independent filters, Filter type: Link-Ril, Bessel, Butter-W... - Page 23 ALPS ALPINE EUROPE GmbH Aurora House, Deltic Avenue, Rooksley, Milton Keynes, MK13 8LW, United Kingdom Phone: 0345-313-1640 ALPINE ELECTRONICS OF AUSTRALIA PTY., LTD. 161-165 Princes Highway, Hallam Victoria 3803, Australia Phone 03-8787-1200 阿尔卑斯（中国）有限公司 北京市朝阳区光华路 7 号汉威大厦东区 28 层...
