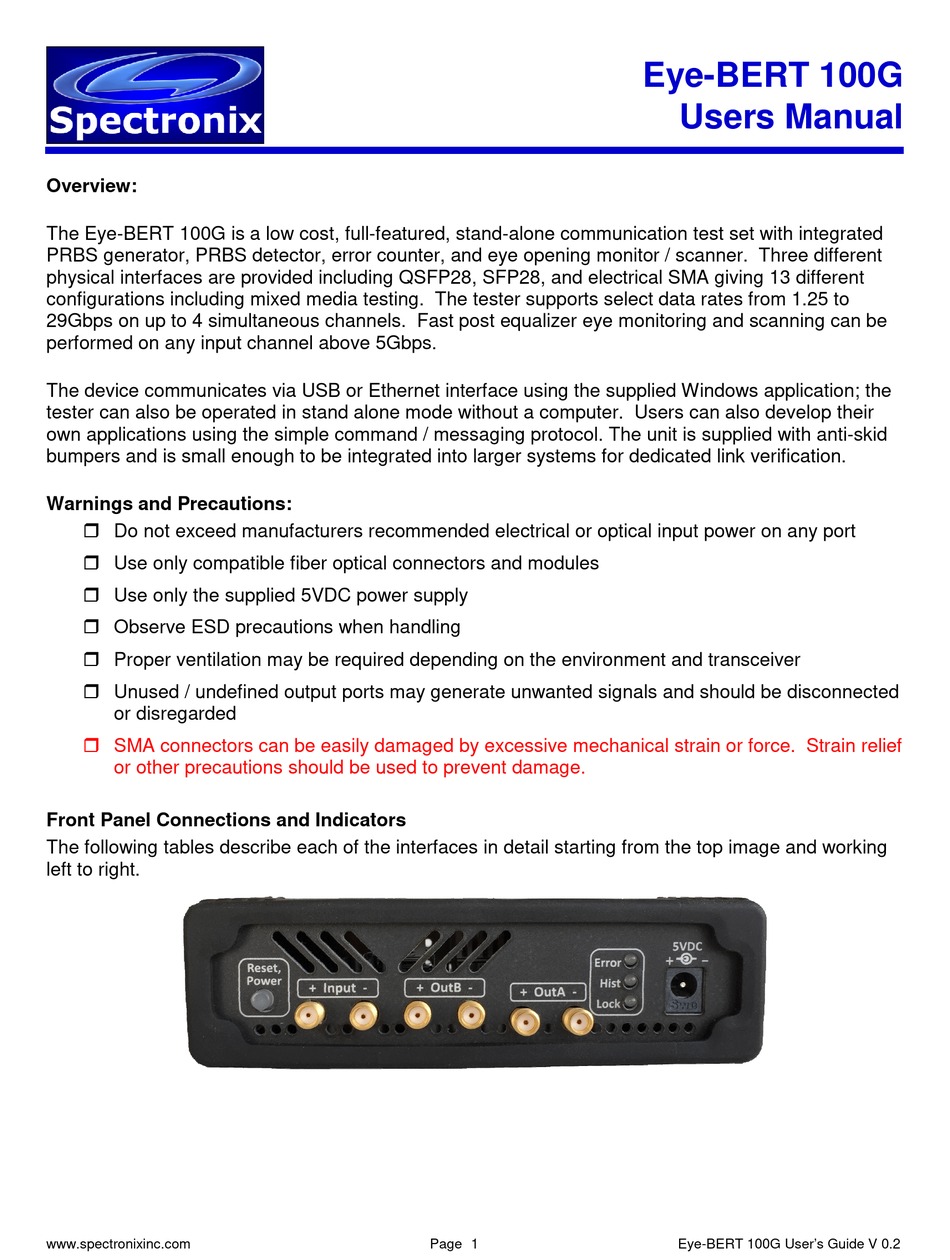

Spectronix Eye-BERT 100G User Manual

Overview:
The Eye-BERT 100G is a low cost, full-featured, stand-alone communication test set with integrated
PRBS generator, PRBS detector, error counter, and eye opening monitor / scanner. Three different
physical interfaces are provided including QSFP28, SFP28, and electrical SMA giving 13 different
configurations including mixed media testing. The tester supports select data rates from 1.25 to
29Gbps on up to 4 simultaneous channels. Fast post equalizer eye monitoring and scanning can be
performed on any input channel above 5Gbps.
The device communicates via USB or Ethernet interface using the supplied Windows application; the
tester can also be operated in stand alone mode without a computer. Users can also develop their
own applications using the simple command / messaging protocol. The unit is supplied with anti-skid
bumpers and is small enough to be integrated into larger systems for dedicated link verification.
Warnings and Precautions:
 Do not exceed manufacturers recommended electrical or optical input power on any port
 Use only compatible fiber optical connectors and modules
 Use only the supplied 5VDC power supply
 Observe ESD precautions when handling
 Proper ventilation may be required depending on the environment and transceiver
 Unused / undefined output ports may generate unwanted signals and should be disconnected
or disregarded
 SMA connectors can be easily damaged by excessive mechanical strain or force. Strain relief
or other precautions should be used to prevent damage.
Front Panel Connections and Indicators
The following tables describe each of the interfaces in detail starting from the top image and working
left to right.
