Denali LAH.07.11300 Instruction Manual

Instruction Manual
Auxiliary Light Mounting Bracket
BMW G310GS 2018-Present
LAH.07.11300

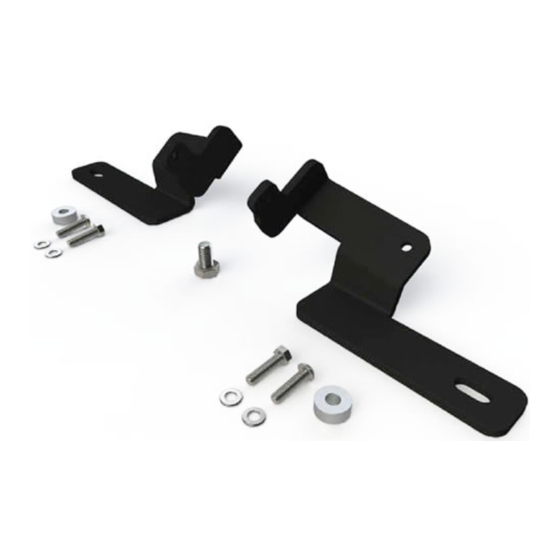

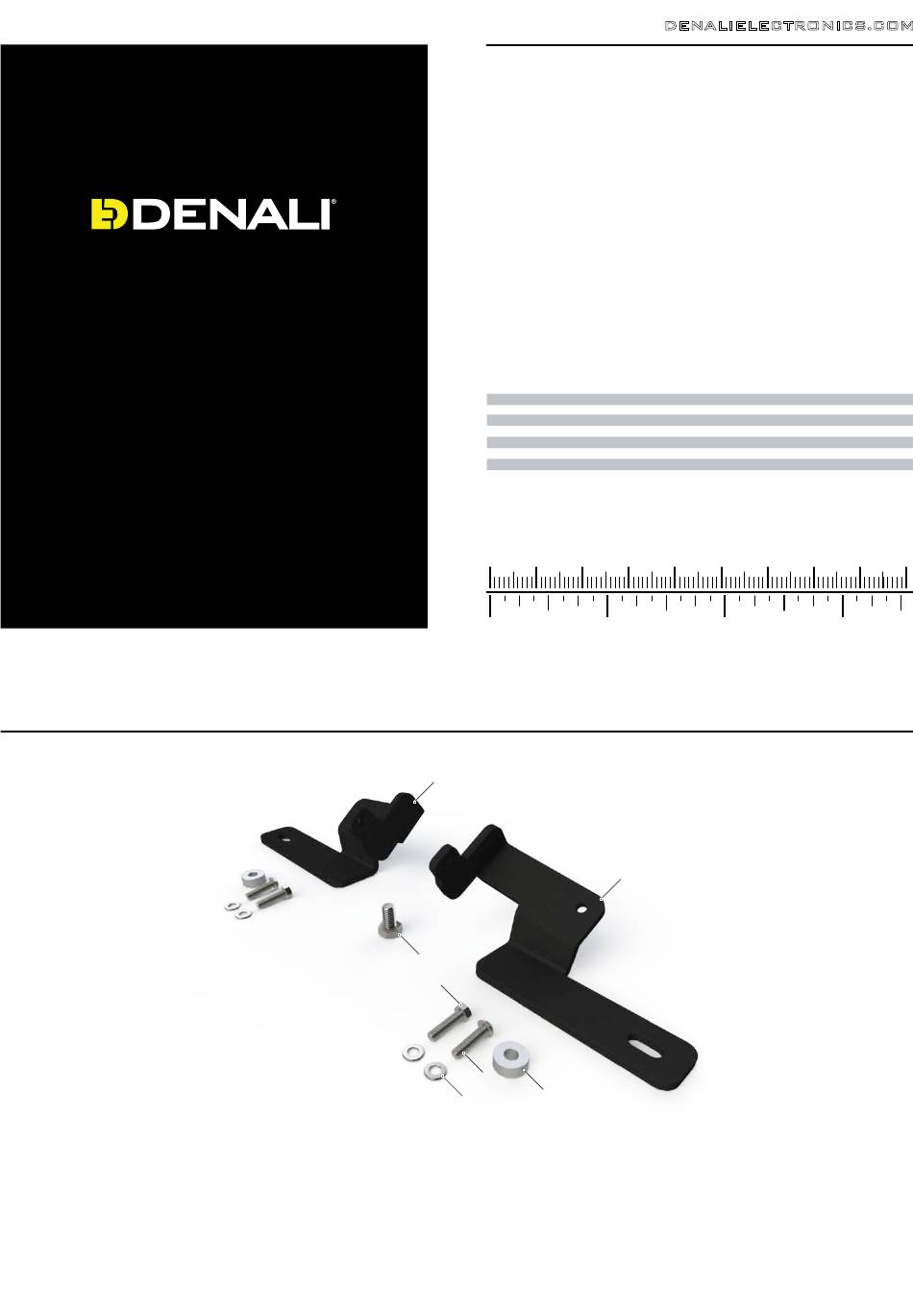

What's In The Box?
Kit Contents
(a) Left Side Mounting Bracket....................................................Qty 1
(b) Right Side Mounting Bracket..................................................Qty 1
(c) M5x20 ISO 7380..................................................................Qty 2
(d) M5 Washer DIN 125.............................................................Qty 4
(e) M5x20 DIN 933...................................................................Qty 2
(f) Spacer - OD: 15.8mm, ID: 6.5mm, L: 6.3mm..........................Qty 2
(g) M8x14 DIN 933...................................................................Qty 1
Instruction Rev00
Thank you for choosing DENALI
We know you would rather be riding your bike than wrenching on it, so we go the extra
mile to make sure our instructions are clear and as easy to understand as possible. If
you have any questions, comments, or suggestions don't hesitate to give our gear
experts a call at 401.360.2550 or visit WWW.DENALIELECTRONICS.COM
Please Read Before Installing
DENALI products should always be installed by a qualified motorcycle technician. If
you are unsure of your ability to properly install a product, please have the product
installed by your local motorcycle dealer. DENALI takes no responsibility for damages
caused by improper installation. Caution: When installing electronics it is extremely
important to pay close attention to how wires are routed, especially when mounting
products to the front fender, front forks, or fairing of your motorcycle. Always be sure
to turn the handlebars fully left, fully right, and fully compress the suspension to
ensure the wires will not bind and have enough slack for your motorcycle to operate
properly.
Installation Tips
We strongly recommend using medium strength liquid thread locker on all screws,
nuts, and bolts. It is also important to ensure that all hardware is tightened to the
proper torque specifications as listed in your owner's manual. For included accessory
hardware please refer to the default torque specifications provided below. Inspect all
hardware after the first 30 miles to ensure proper torque specifications are
maintained.
Bolt Size
M3
M4
M5
M6
M8
M10
M12
Hardware Sizing Guide
Not sure what size bolt you have? Use this ruler to measure screws, bolts, spacers, etc.
Remember, the length of a screw or bolt is measured from the start of the "mounting
surface" to the end of the screw, so only include the screw head when measuring
countersunk screws.
0 10 20
mm
0
in
(b)
(g)
(f)
(c)
(e)
(d)
Tools Required: 13mm Wrench, 8mm Wrench, 3mm Allen Key
DENALIELECTRONICS.COM
in-lbs ft-lbs
10.0 in-lbs -
23.0 in-lbs
-
44.5 in-lbs 3.5 ft-lbs
78.0 in-lbs 6.5 ft-lbs
- 13.5 ft-lbs
- 30.0 ft-lbs
- 52.0 ft-lbs
30 40 50 60
1 2
(a)
Nm
1.0 Nm
2.5 Nm
5.0 Nm
9.0 Nm
18.0 Nm
41.0 Nm
71.0 Nm
70 80 90
3
