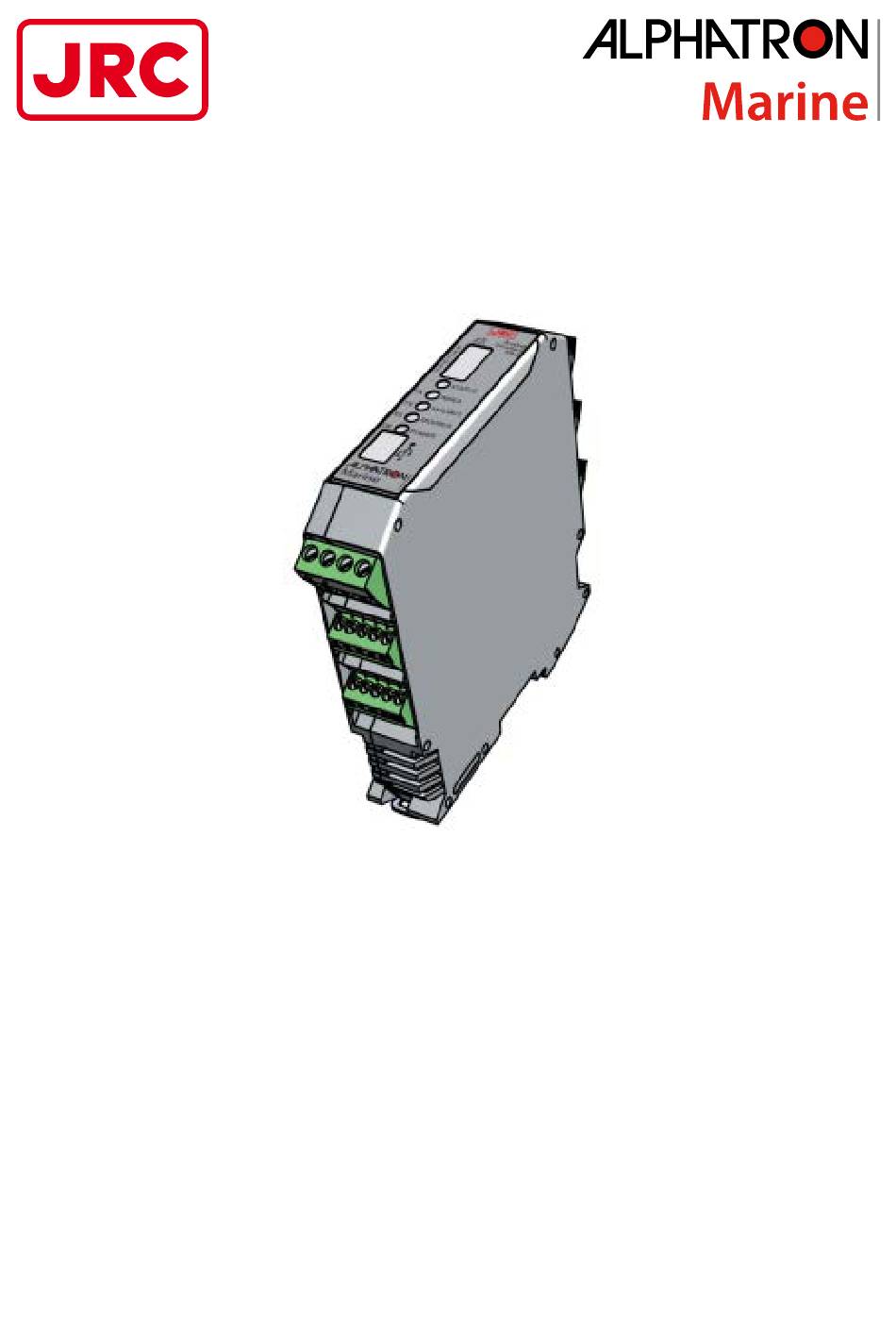

- Page 1 Analog Interface Mk.2 Installation and Operation Manual www.jrc.am...
-
Page 2: Table Of Contents
Contents I Preface......................4 I.1 Revision History................................ 4 I.2 Glossary..................................4 I.2.1 Definitions................................. 4 I.2.2 Abbreviations..............................5 I.3 Norms and Standards...............................6 II Warnings and Cautions................7 II.1 Warranty................................... 8 II.2 Storage..................................8 III Introduction....................9 1 Installation Instructions................10 1.1 Mechanical Installation............................10 1.1.1 Supplied Parts............................... - Page 3 6 Appendix C....................22 6.1 EC Declaration of Conformity..........................22 3 | Contents...
-
Page 4: I Preface
I Preface • Thoroughly read this instruction manual before installation and operation of the equipment. • We recommend to keep this manual nearby the equipment to ensure ready access to it. I.1 Revision History Revision No. Software Version Description Date V1.0 R1_015 First issue... -
Page 5: Abbreviations
ROT signal Rate Of Turn (ROT) signal indicates the course change of a ship in degrees per minute. This signal can be analog using voltage or current, or can be an NMEA data signal. Heading/bearing repeaters Navigation type of instruments displaying the heading/course of a ship. Baud rate This is the transmission speed of serial interfaces in characters per second. -
Page 6: Norms And Standards
Volts Direct Current Voyage Data Recorder Watt Table 2: Abbreviations I.3 Norms and Standards The Analog Interface Mk.2 complies with the applicable standards, norms and regulations: • IEC 60945 (2002) including IEC 60945 Corrigendum 1 (2008) • Standard DNV 2.4 •... -
Page 7: Warnings And Cautions
II Warnings and Cautions The signal words WARNING and CAUTION used in this manual indicate the degree of hazard that may be encountered by the user. These words are defined as: • WARNING • A WARNING indicates potential risk of injury or death to users of the product. •... -
Page 8: Ii.1 Warranty
• CAUTION • If the instruments are not stored as described, it will void the warranty. • CAUTION • When cleaning the surface, do not use any organic solvent such as thinner or benzine. Otherwise, the paint and markings on the surface may get damaged. For cleaning the surface, remove the dust and debris and wipe with a clean dry cloth. -
Page 9: Introduction
III Introduction The Analog Interface Mk.2 converts analog to digital signals. Supported signals include 0-20 mA, +/- 5/10/20V and potentiometer signals for use with dimmers or rudder feedback units. The Analog Interface Mk.2 converts the analog signal to a digital MODBUS and IEC 61162-1 signal. 9 | Introduction... -
Page 10: Installation Instructions
1 Installation Instructions This chapter describes the installation of the Analog Interface Mk.2. 1.1 Mechanical Installation • CAUTION • This product must be installed in accordance with the installation methods described in this manual. Acting otherwise will void the warranty. 1.1.1 Supplied Parts The Analog Interface Mk.2 is delivered as a fully assembled product. - Page 11 Rudder may be connected to the AlphaLine instrument using a serial signal ($xxRSA sentence, first rudder field), or by using the Rudder Feedback Unit MD/HD. 1. Set the DIP switches on the front as explained below to connect and configure the potentiometer correctly. Switch Function Contact...
-
Page 12: Inputs And Outputs Analog Interface Mk.2
Ensure the analog signal cable is separated from high voltage and high current cables, by placing it in a different trunk. Note Position the Analog Interface Mk.2 in a cabinet where there can be no interference from electronics such as frequency drives (i.e. use a different/separate cabinet). •... -
Page 13: Software Installation
1.2 Software Installation 1.2.1 Software Update for Modules The Analog Interface Mk.2 is not field serviceable. 1. Contact the Alphatron Service Desk at www.jrc.am/support if there is an issue with the software. 13 | Installation Instructions... -
Page 14: Operation
2 Operation This module cannot be operated without an AlphaLine instrument. For operation, please refer to the original manual with your AlphaLine instrument. 14 | Operation... -
Page 15: Maintenance
3 Maintenance • CAUTION • This product contains no operator serviceable parts. Service and repair shall only be carried out by personnel trained and certified by ALPHATRON MARINE. Maintenance and repair of the Rudder Feedback Unit should only be performed by personnel that is familiar with the Alphatron Rudder Feedback Unit. -
Page 16: Specifications
4 Appendix A Appendix A contains: 1. Specifications on page 16 2. Mechanical Drawings on page 17 3. Electric Diagrams on page 18 4. Thales Certificates on page 20 4.1 Specifications 4.1.1 Specifications Analog Interface Mk.2 Box Contents upon Delivery Environmental according to DNV 2.4 table 2.1 Analog Interface Mk.2 3109.0192 (Seagoing) Temperature... -
Page 17: Mechanical Drawings
4.2 Mechanical Drawings 4.2.1 Mechanical Drawing Analog Interface Mk.2 Figure 4: Mechanical Drawing Analog Interface Mk.2 17 | Appendix A... -
Page 18: Electric Diagrams
4.3 Electric Diagrams The cable diagrams and connection diagrams illustrate the connections to hardware, power and other equipment. 18 | Appendix A... -
Page 19: Connection Diagram Analog Interface Mk.2
4.3.1 Connection Diagram Analog Interface Mk.2 Figure 5: Connection Diagram Analog Interface Mk.2 19 | Appendix A... -
Page 20: Thales Certificates
4.4 Thales Certificates 4.4.1 Thales Certificate Analog Interface Mk.2 Figure 6: Thales Certificate Analog Interface Mk.2 20 | Appendix A... -
Page 21: Iso 9001 Certificate Alphatron Marine R&D
5 Appendix B 5.1 ISO 9001 Certificate Alphatron Marine R&D Figure 7: ISO 9001 Certificate Alphatron Marine R&D 21 | Appendix B... - Page 22 6 Appendix C 6.1 EC Declaration of Conformity Figure 8: EC Declaration of Conformity Analog Interface Mk.2 22 | Appendix C...
- Page 23 All over the world, close to the customer JRC/Alphatron Marine Schaardijk 23 (harbor 115) The information in this document is subject to change without notice and 3063 NH Rotterdam does not represent a commitment on the part of Alphatron Marine B.V.
