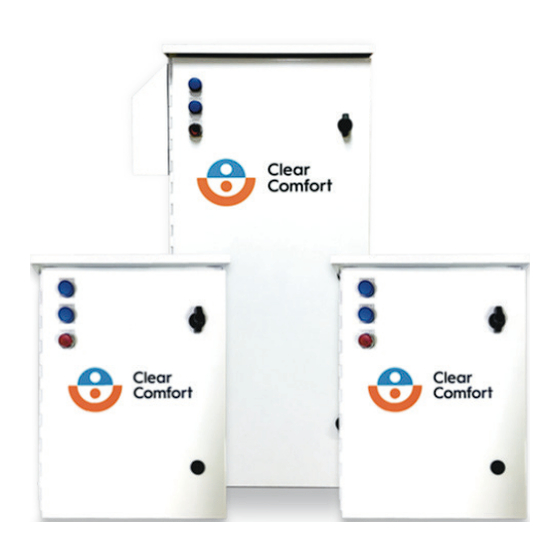

Clear Comfort CCW300A Installation, Operation & Maintenance Manual

Clear Comfort CCW300A Installation, Operation & Maintenance Manual

Commercial grade pool & spa systems

Advertisement

Quick Links

Clear Comfort Commercial Grade
Pool & Spa Systems
Installation, Operations & Maintenance
Manual
IMPORTANT SAFETY INSTRUCTIONS
For further assistance contact us:
303.872.4477
support@clearcomfort.com
clearcomfort.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCW300A and is the answer not in the manual?

Questions and answers

Summary of Contents for Clear Comfort CCW300A

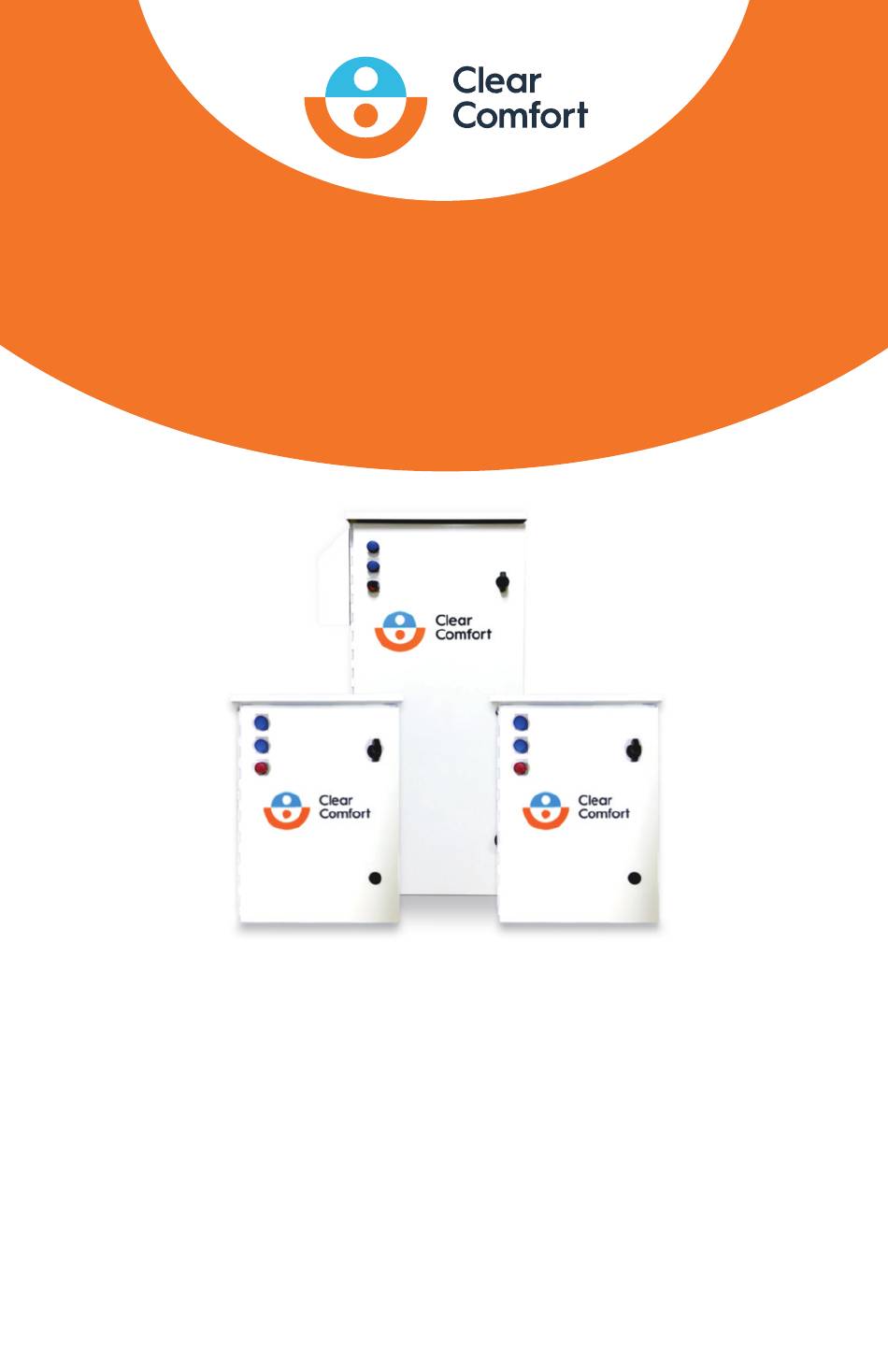

  • Page 1 Clear Comfort Commercial Grade Pool & Spa Systems Installation, Operations & Maintenance Manual IMPORTANT SAFETY INSTRUCTIONS For further assistance contact us: 303.872.4477 support@clearcomfort.com clearcomfort.com...
  • Page 2 For the latest version, please visit: clearcomfort.com/commercial-manual MADE IN USA ©2019 Clear Comfort. All Rights Reserved.
  • Page 3: Table Of Contents

    Important Safety Instructions ............3 Electrical Safety ................4 Grounding ..................4 General Safety ................. 4 System Description For Standard Clear Comfort System ....5 Key Features ..................5 Standard Specifications ..............5 Operating Ranges ................5 Installation Prerequisites ..............8 Clear Comfort Supplied Materials ..........
  • Page 4: Warranty

    (i) Customer attempts to make any workmanship under normal use and service. internal changes to any of the components Clear Comfort, LLC at its discretion may of the Equipment; (ii) the power supplied repair or replace the Equipment or parts to any part of the Equipment exceeds thereof.
  • Page 5: General Information

    GENERAL INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. READ AND FOLLOW ALL 7. For all cord and plug connected INSTRUCTIONS. units: WARNING – To reduce the risk of electric shock, replace damaged 2. For cord connected/convertible cord immediately. units: DANGER – Risk of injury. 8.
  • Page 6: Electrical Safety

    Protect the power cord from local electrical code. being walked on or pinched, GROUNDING particularly at plugs and the The Clear Comfort, LLC system point where they exit from the must be properly grounded. An system. electrical ground connection to a •...
  • Page 7: System Description For Standard Clear Comfort System

    STANDARD SPECIFICATIONS The CCW300 Clear Comfort system can be pole or wall mounted. Holes on the back panel can be drilled to meet your installation requirements. The CCW500 Clear Comfort system is floor standing and should not be wall mounted, but it can be secured to floor for seismic safety.
  • Page 8 SYSTEM DESCRIPTION FOR STANDARD CLEAR COMFORT SYSTEM CCW300 Cartridge A LED Cartridge B LED System Power Switch Door Locks Cartridges Power Supply 120 V or 240 V Current Sensor Ballasts Air Out 303.872.4477 support@clearcomfort.com clearcomfort.com...
  • Page 9 SYSTEM DESCRIPTION FOR STANDARD CLEAR COMFORT SYSTEM CCW500 Cartridge A LED Cartridge B LED System Power Switch Door Locks 120 V or 240 V Current Sensor Ballasts Power Supply Cartridges Air Out 303.872.4477 support@clearcomfort.com clearcomfort.com...
  • Page 10: Installation Prerequisites

    • Water quality at installation: The water quality should be in normal ranges prior to installing the Clear Comfort system. CLEAR COMFORT SUPPLIED MATERIALS Components supplied for the Clear Comfort system: 1. Clear Comfort system. 2. Power cord: 10 feet. 3. Venturi injector.
  • Page 11: Installing The Clear Comfort System

    The Clear Comfort system should never operate if the pump is not on or if water is not circulating. Select a location that minimizes the distance of the Clear Comfort system to the venturi injector - less than 10 feet is required.
  • Page 12 INSTALLING THE CLEAR COMFORT SYSTEM 303.872.4477 support@clearcomfort.com clearcomfort.com...
  • Page 13: Installation Of System - Connecting System And Venturi Loop

    INSTALLING THE CLEAR COMFORT SYSTEM INSTALLATION OF SYSTEM - CONNECTING SYSTEM AND VENTURI LOOP 1. Turn main pool pump OFF and switch OFF the main pool circuit breaker. 2. Close water main valves before and after injection site to isolate water from pool (if applicable).
  • Page 14 INSTALLING THE CLEAR COMFORT SYSTEM 10. Run the desired length of ¼” silicon tubing from the venturi injection port to the straight barb fitting within the Clear Comfort system. Distance should be no longer than 10 feet. See Figure 2 below.
  • Page 15 Check Valve Tubing Tubing Check Valve Figure 3: Air Check Valve Position Inspect ¼” line to ensure that there are no kinks, bends. Gas exiting the Clear Comfort system to the venturi connector port should flow easily. 303.872.4477 support@clearcomfort.com clearcomfort.com...
  • Page 16: Operating Instructions

    4. Turn ON bypass booster pump. 5. Using an airflow meter, ensure air suction is in the following ranges 6. Close the front door of the Clear Comfort system, turn latch lock to the closed position, and toggle red power button to the ON position.
  • Page 17: Air Flow Meter

    See chart on previous page. 4. When adjusted to the correct flow, disconnect blue hose and reattach to the check valve. Flow meter should never be permanently installed. Store flow meter within Clear Comfort enclosure. From Clear Comfort System To Venturi...
  • Page 18: System Maintenance

    SERVICE COMPANY TRAINED BY CLEAR COMFORT. Never attempt to service unit while it is wet. 1. Turn OFF power to Clear Comfort system by toggling red power button to the OFF position. 2. Turn OFF and disconnect power to Clear Comfort system from power source.
  • Page 19 OPERATING INSTRUCTIONS section of this manual. 11. Close the front door of the Clear Comfort system, turn latch lock to the closed position, and toggle red power button to the ON position. LED will illuminate.
  • Page 20: Backwashing Instructions

    OPERATING INSTRUCTIONS section of this manual. 8. Close the front door of the Clear Comfort system, turn latch lock to the closed position, and toggle red power button to the ON position.
  • Page 21: Wiring Diagram

    WIRING DIAGRAM CCW-300 OUTDOOR UNIT DOOR SLEEVE A SLEEVE B LAMP LAMP CP-D WITH WITH 24/0.42 SLEEVE SLEEVE POWER SUPPLY DOOR WHITE - DOOR SWITCH SWITCH BLACK - DOOR SWITCH - POWER IN BLACK - DOOR SWITCH - POWER CUT WHITE - RIB (RIGHT) WHITE - RIB (LEFT) BLACK - BALLAST...
  • Page 22: Wiring Into Pump Electrical Circuit

    The unit should not run when the pump is off. For questions regarding this operational mode please contact Clear Comfort at 303.872.4477. 240 Volt power supply cord supplied and must be field wired in accordance to the NEC (ONLY FOR 240V).
  • Page 23: Appendix

    APPENDIX HEAD LOSS (WITHOUT BOOSTER PUMP) Flow (gpm) 7.80 14.57 21.81 29.17 Head Loss (psi) 0.57 5.92 17.96 34.83 (OPTIONAL) OXYGEN CONCENTRATOR INSTALLATION O2 Concentrators are not required or recommended by Clear Comfort, if you choose to install please contact the manufacturer. 303.872.4477 support@clearcomfort.com clearcomfort.com...
  • Page 24 For further assistance contact us: 303.872.4477 support@clearcomfort.com clearcomfort.com MADE IN USA ©2019 Clear Comfort. All Rights Reserved.

This manual is also suitable for:

Ccw300Ccw500
