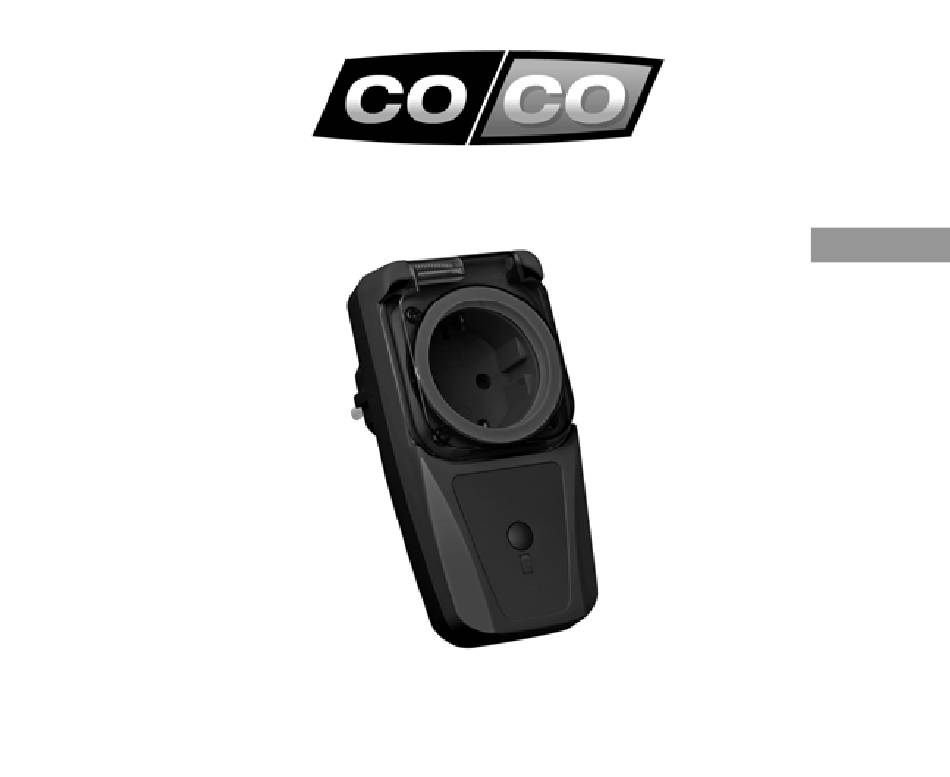

- Page 1 USER’S MANUAL version 1.1 English AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’...

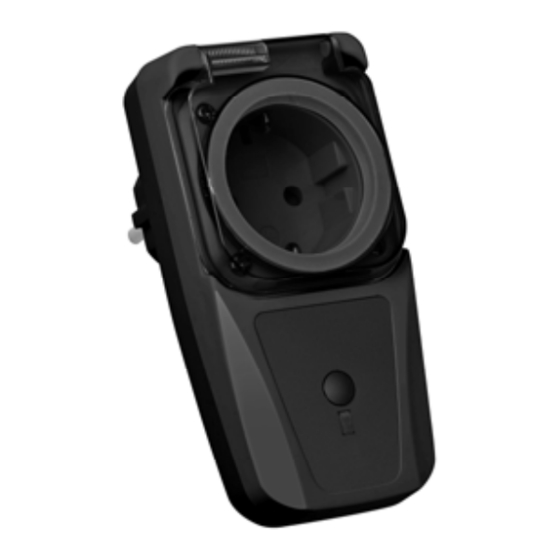

- Page 2 AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’ A: Indicator (power and connection status) B: Search mode button Picture of the AYCT-102 C: Child protection (not always included, check the specifications on the D: Hinged cover packaging)
- Page 3 AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’ [1] Insert the plug portion in a mains socket. The [2] Connect the lamp, pond pump (or other indicator remains lit as long as there is power at suitable equipment) to the switched socket.
- Page 4 AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’ [3] Press the search mode button briefly. The [4] Press the desired ‘on’ button on the remote indicator begins to flash. control (or send an ‘on’ signal from another type of transmitter). The indicator on the switched socket stops flashing as soon as the connection is made.
- Page 5 AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’ [5] To confirm, the built-in switch switches on and off two times. The code of the transmitter is stored in the memory of the mains socket switch and the product is ready for use.
- Page 6 • The wireless system can be indefinitely expanded with other COCO remote controls and/or receivers. • Your COCO transmitter may have a special ‘group’ button with which multiple receivers can be switched on and off simultaneously. Repeat [3 - 4] and press the ‘group’ on button of the transmitter in step [4].
- Page 7 AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’ • Never use COCO products for life support systems or other applications in which equipment malfunctions can have life-threatening consequences. • Do not connect any lights or other devices that consume more than 3500 Watts. Connecting incorrect equipment can cause defects, a short circuit and fire.
- Page 8 If possible, submit this product for recycling after use. Do not dispose of the product with household trash. Warranty and copyright This device is covered by a 2-year warranty that begins on the day of purchase. Visit www.coco- technology.com/warranty for additional information. Reprinting of (portions of) this manual without...
- Page 9 P.O. BOX 126 4760 AC ZEVENBERGEN THE NETHERLANDS www.coco-technology.com Declaration of Conformity Pan-Trade International BV declares that the COCO product, model: type designation AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’ item number 74038 is in compliance with the essential requirements and other relevant provisions of directives R&TTE 1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC and is compatible with the standards EN 300 220- 1/3, EN 55015, EN 301 489-1/3 and EN 60950.
