CoCo ACDB-6600AC User Manual

Chime with wireless push button
Hide thumbs

Advertisement

Quick Links

Download this manual
USER'S MANUAL
v. 1.0
ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACDB-6600AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CoCo ACDB-6600AC

Summary of Contents for CoCo ACDB-6600AC

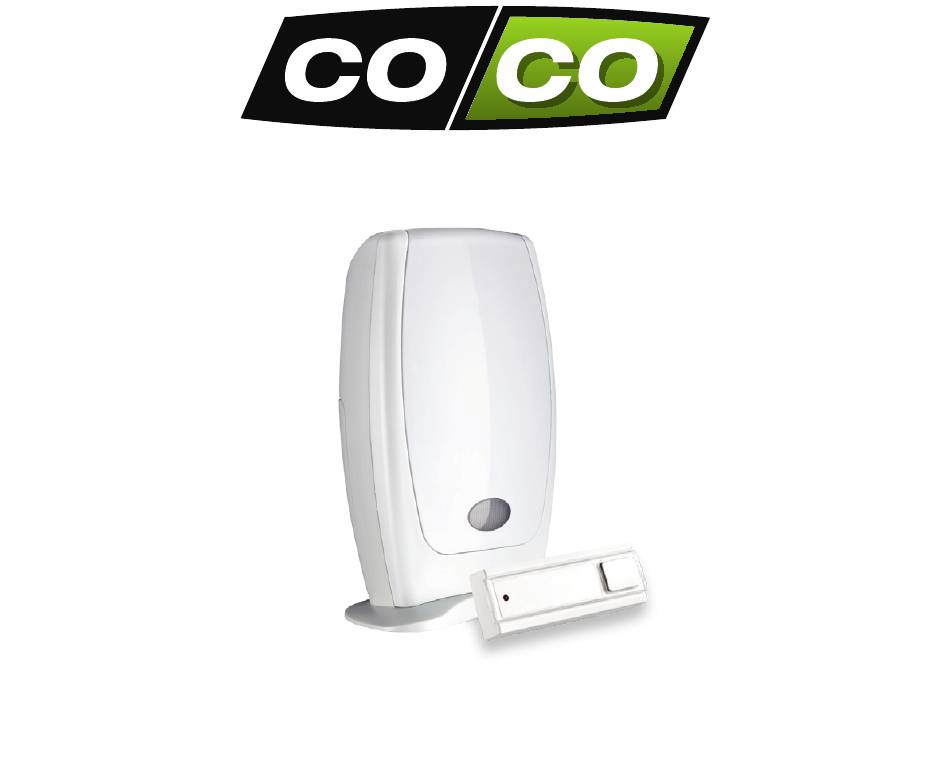

  • Page 1 USER’S MANUAL v. 1.0 ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON...
  • Page 2 DESCRIPTION The wireless doorbell ACDB-6600AC can be conveniently transported to another room or even outside (if it is dry). Therefore you can always be sure you hear the bell. The reach of the wireless doorbell is 70 meters and in open air even up to 200 meters.
  • Page 3 HANDLING LIFE-SUPPORT Do not drop, knock, or shake the device. Rough Never use COCO products for life-support systems or handling can damage internal circuit boards and fine other applications in which equipment malfunctions mechanics. can have life-threatening consequences.
  • Page 4 ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON Chime + push button ACDB-6600AC A: LED indicator...
  • Page 5 ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON A: LEARN button C: Melody selection B: Volume button...

  • Page 6: Install Batteries

    ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON [1] Install batteries he wireless doorbell ACDB-6600AC can be Place 3x 1,5V AA alkaline batteries in the conveniently transported to another room or even battery compartments. outside (if it is dry). Make sure you are able to hear the chime and the LED indicator is visible.

  • Page 7: Select Melody

    ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON [2] Select volume [3] Select melody Press the volume button several times to select Press the melody button several times to select 1 of the 4 volume levels. You can select a 1 of the 5 melodies. You can select a different different volume level for each transmitter.
  • Page 8 When you have selected the desired volume While the learn-mode is active, send an ON- level and melody, press the [LEARN] button signal with any COCO transmitter to assign the for 1 second to activate the learn-mode. The code to the receiver’s memory.
  • Page 9 ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON [6] Code confirmation The LED indicator will blink fast to confirm the code has been received. The receiver can store up to 4 different transmission codes in its memory. The memory will be preserved when the receiver is moved to another socket or in case of power failure.
  • Page 10 ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON Single code delete Full memory delete (1) Press the [LEARN] button for 1 seconds to (1) Press and hold the [LEARN] button for 7 activate the learn-mode. The learn-mode will seconds until the LED indicator starts blinking be active for 15 seconds.
  • Page 11 ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON COCO International BV declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC (R&TTE). If possible, dispose of this product at a recycling center. Do not dispose of this product with the household waste.

  • Page 12: Declaration Of Conformity

    DECLARATION OF CONFORMITY COCO International BV declares that the COCO product; model: ACDB-6600AC CHIME AND WIRELESS PUSH BUTTON item number: 71083 intended use: indoor (chime), outdoor (wireless push button) is in compliance with the essential requirements and other relevant provisions of the following directives: EMC Directive (2004/108/EC) , Low Voltage Directive (2006/95/EC), R&TTE Directive (1999/5/EC)
