- Page 1 COPLAND USER GUIDE...
- Page 2 What’s in the Box AMPLIFIER POWER TUBES – 4 pcs. POWER CORD REMOTE CONTROL USER GUIDE GETTING STARTED Open the carton and remove the amplifier from its plastic bag. Before placing the unit in your home, read this carefully. CAUTION! Various regulation agencies require us to bring the following information to your attention.
-
Page 3: Installation
Installation To prevent the output tubes from damage and disconnecting, the power tubes are not installed during transport. Before use, the four power tubes should be placed in the free octal sockets on the main circuit board inside the amplifier marked V1, V2, V3, V4. The tubes have been matched at the factory and are delivered as matched pairs. -
Page 4: Tape Monitor

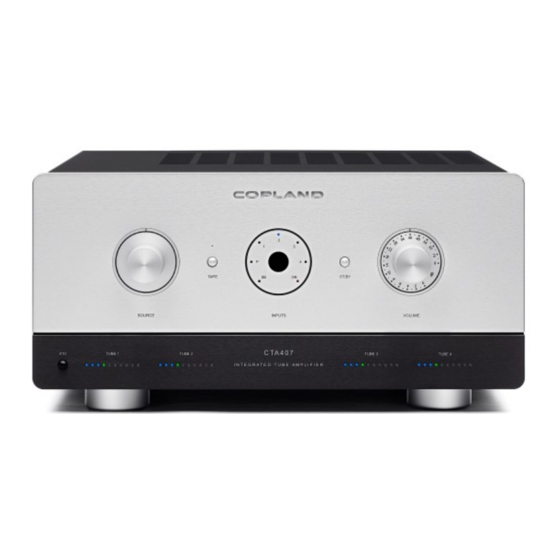

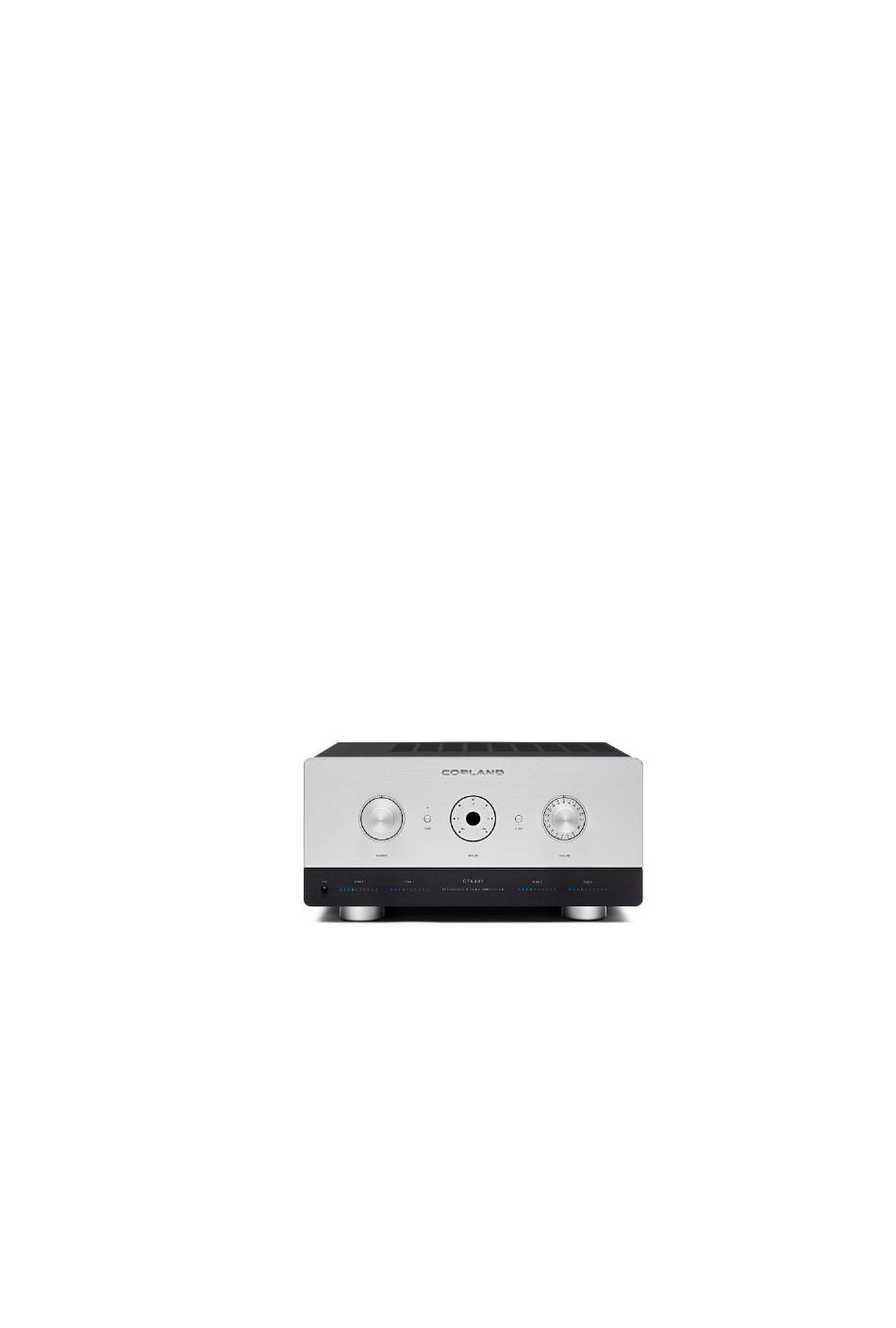

Front Panel C O P L A N D TAPE ST BY SELECTOR INPUTS VOLUME CTA407 TUBE 1 TUBE 2 TUBE 3 TUBE 4 I N T E G R A T E D T U B E A M P L I F I E R Source Selector: Selects the appropriate Display:... - Page 5 Diagnostic LED panel CTA407 TUBE 1 TUBE 2 TUBE 3 TUBE 4 I N T E G R A T E D T U B E A M P L I F I E R The position of the four power tubes, inside the amplifier, is marked with the numbers one to four.
- Page 6 RISQUE DE CHOC ELECTRIQUE RISK OF ELECTRIC SHOCK NE PAS OUVRIR DO NOT OPEN MAX POWER CONSUMPTION : 400W DESIGN BY COPLAND 230 V 50/60 Hz. VOLTAGE: MADE IN DENMARK 3. 4. Ground: Earth connection for any device that needs to be grounded.
- Page 7 The auto-bias system will adjust also for use with: KT90 / KT100 / KT120 / KT150 Remote control The CTA407 comes with the Copland RC-102A remote control. It operates all basic functions of the amplifier. Due to environmental regulations, it is shipped without the battery.
-
Page 8: Power Bandwidth
CTA407 Specifications Tubes. 6550 / KT88 4pcs. (V1. V2. V3. V4) 12BH7 or ECC82/12AU7 2pcs. (V6 & V7) ECC83/12AX7 1pcs. (V5) The auto-bias system will adjust also for use with: KT90 / KT100 / KT120 / KT150 Rated power. 50W / channel at 4 / 8 ohms. THD.
