iRobot Braava Jet M6 Robot Mop Manual

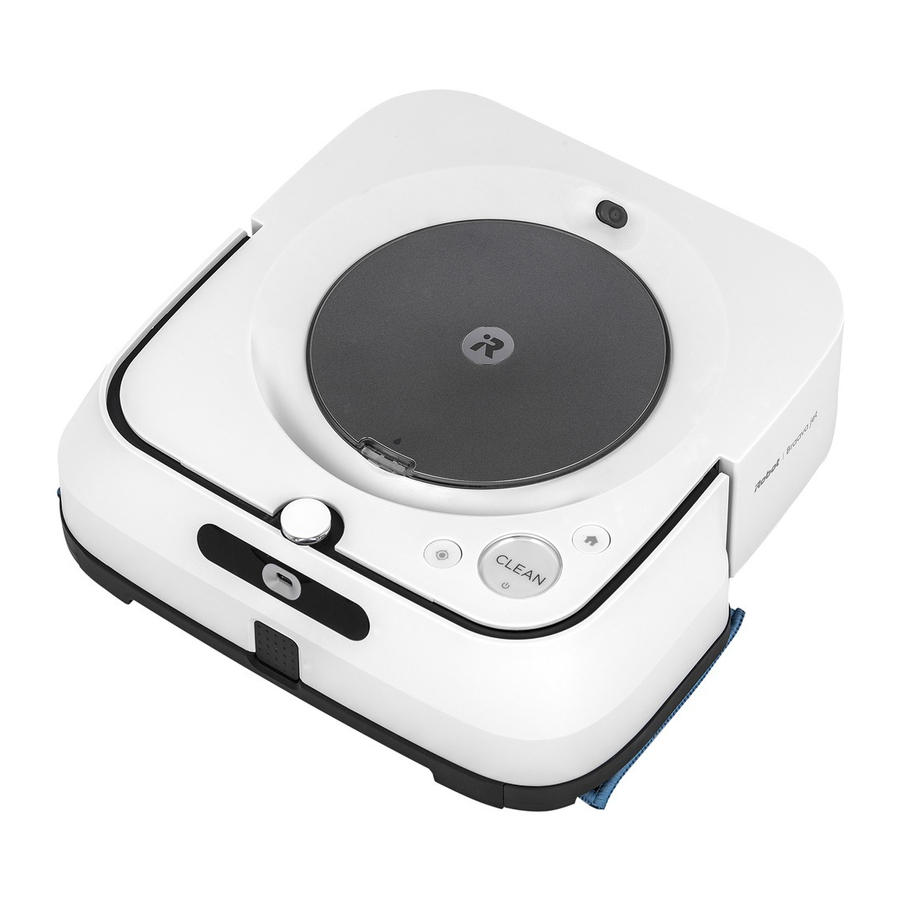

Top View

Bottom View

Home Base Charging Station

1. Get ready
   To start, you'll need your robot, charging station, drip tray, and power cord.


2. Position the charging station and plug in
   Choose an area near an outlet with good Wi-Fi coverage.


   Plug the power cord into the charging station, and then into the wall.


   To prevent the risk of your robot falling down stairs, ensure that the charging station is placed at least 4 feet (1.2 meters) away from stairs.
3. Attach the drip tray
   Place the drip tray onto the front of the charging station.


4. Wake up your robot
   Slide your robot onto the charging station contacts to activate the battery. The light ring will light up and after a few minutes, and a sound will let you know it's awake.


5. Connect and update
   Connect your robot to the iRobot HOME App to allow remote control, cleaning customization, and to keep robot software up to date.




6. Attach a cleaning pad
   Slide a wet mopping or dry sweeping pad onto the underside of the robot.


   Detach an existing cleaning pad by pressing the button on the front of the robot.


Cleaning pad types
Wet Mopping Pads
Single Use Wet Mopping Pad

Washable Wet Mopping Pad (Microfiber)

Dry Sweeping Pads
Single Use Dry Sweeping Pad

Washable Dry Sweeping Pad (Microfiber)

7. Fill the tank
   Remove the tank from the robot.


   Add Braava jet ® Hard Floor Cleaning Solution (if using).


   Then fill to top with water.


Cleaning Solution
When wet mopping, you may add Braava jet Hard Floor Cleaning Solution to the tank before adding water. This product is a concentrate that is suitable for all wellsealed hard floors.

Braava jet ® Hard Floor Cleaning Solution is the only solution that can be safely used in your robot mop. Please do not use other cleaning solutions.
Sample size
(Included in box)


Retail: Full size
(Sold separately)

• Your robot will automatically explore and clean your home, moving in a methodical manner across the floor, with some overlap from one pass to the next to ensure that every spot on the floor is cleaned three times. If you are looking for a quicker clean or a deeper clean than this default setting, or if you want to adjust the amount of water sprayed, you can change your cleaning preferences from the iRobot HOME App.
• Your robot will return to the charging station at the end of a cleaning job, whenever it needs to recharge, or when the tank needs to be refilled.
  Note: If the "CLEAN" text is pulsing while charging, your robot is in the middle of a cleaning job and will automatically resume where it left off once recharged.
• To send the robot back to its charging station, tap (home). A blue light ring pattern will indicate that the robot is seeking the charging station. This feature will only work if your robot started the job from the charging station.
• When the robot senses its tank needs to be filled, the light ring indicator will illuminate in a red sweeping motion toward the lid latch.
• Clean smaller designated areas (3.3 ft 2 /1 m 2 ) by placing your robot at the bottom center of the space you'd like to focus on. Tap (spot clean) to start cleaning.

• Your robot works best when used with the iRobot HOME App.
• For optimal mopping performance, we recommend that you vacuum first to pick up large dirt and debris before running Braava jet ®.
• Your robot will only run with Braava jet ® m Series pads, which are made specifically for Braava jet ® m Series robots.
• Use a new pad for each cleaning job, and do not pre-wet the pads prior to use.
• Keep your charging station plugged in and the area around it clear of clutter.
• You can use a Dual Mode Virtual Wall ® Barrier to help keep your robot in places you want to be cleaned, and out of the ones you don't. (Sold separately)
• Within the iRobot HOME App, you can adjust cleaning preferences to modify cleaning power, speed, and coverage.

• Slide your robot onto the charging station contacts to activate the battery.
  Note: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the first cleaning job.
• The light ring indicator will show the current charging status. This will turn off after 1 minute to save power, but can be shown again if you press CLEAN. This can also been seen in the iRobot HOME App.


  (Light Ring While Charging
  Solid: fully charged
  Pulsing: charging)


• Your robot uses a small amount of power whenever it is on the charging station. You can put the robot in a further-reduced power state when not in use. For instructions and more details on this Reduced Power Standby Mode, refer to the iRobot HOME App.
• For long-term storage, turn off your robot by removing it from the charging station and holding down (home) for 10 seconds. Store your robot in a cool, dry place.

Lithium Ion Battery
For best results, only use the iRobot Lithium Ion Battery that comes with your Braava jet m6. ®

Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product (with the battery included) for service, travel or any other reason, you MUST follow these shipping instructions.

• Battery MUST be turned off before shipping.
• Turn off the battery by removing the robot from the charging station and holding down (home) for 10 seconds. All indicators will turn off.
• Package the product in its original packaging.
• Ship via ground transportation only (no air shipping).
• If you need further assistance, contact our Customer Care team.

• Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press CLEAN for details. Further support and instructional videos are available in the iRobot HOME App.
• After 90 minutes of inactivity off the charging station, your robot will automatically end its cleaning job.

Cleaning the Tank
If you notice an odor from the tank

1. Remove the tank from your robot mop.
2. Fill the tank with warm water. Do not use boiling water.
3. Close cap and lightly shake the tank.


4. Rinse the tank and repeat as necessary.

Cleaning the Drip Tray

1. Remove the robot from the charging station.
2. Separate the drip tray by lifting it up from charging station.


3. Clean the drip tray with a damp cloth or with warm water in sink.
4. Dry thoroughly before reattaching the drip tray to the charging station.
5. Put your robot mop back onto the charging station.
