FARMSCAN Farmlap 5100 Quick Manual

Farmlap 5100 (1.40A2) Professional Guidance System - Omnistar

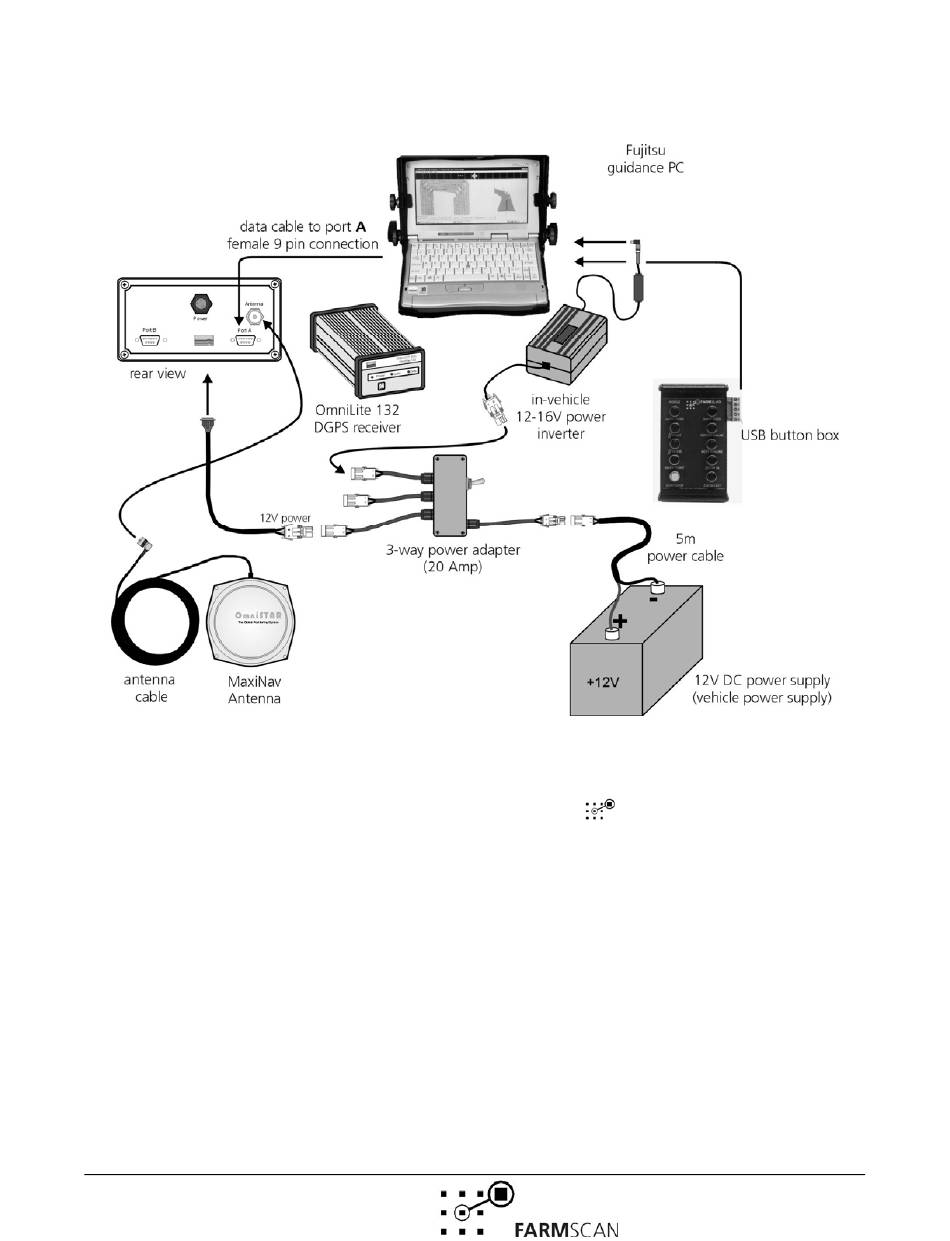

Main Components

Getting Started

1. Turn your CF-M34 on using the power button.
2. Then power on your OmniStar Gps Receiver. The GPS may take 3-4 minutes to initialise if it has not been
used for sometime or has been moved a considerable distance without being turned on.
3. Once the computer has started up, double click the Farmlap icon

Farmlap Settings

1. Go to View, Options. You will need to enter an implement width in the "Swath Width(m)" field.
2. Select Fixed and enter an antenna to boom distance if you have a vehicle mounted boom or spreader
truck.
3. Select Trailed if the boom is towed behind the vehicle. There are three measurements needed.
1. Antenna to hitch
You will need to put a positive figure in the fixed box to display the yellow vehicle icon.
4. Select Runlines and tick the Use Turn Radius box to round your corners. Enter a figure between half
and your full swath width in the Turn Radius box if you are using this function.
5. Select Guidance Lines and tick Perspective Guidance if you want the blue highway in Racetrack
mode.
6. Select Devices. If you are not using the Button Box select None for Control Device, otherwise you will
need to select USB.
7. Cosmetics allows you to choose what statistics you can view whilst operating Farmlap.
