XO PERFORMANCE SIDE BURNER CART ASSEMBLY INSTRUCTIONS
PERFORMANCE
GRILL CARTS
MODEL:
XOGSBCARTXLT
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER
ASSEMBLY AND SAFE USE OF THE APPLIANCE. PLEASE READ AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS THAT ACCOMPANY BOTH THIS CART AND THE GRILL BEFORE ASSEMBLING AND
USING THE APPLIANCE. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. DO NOT OPERATE
IN ANY ENCLOSED SPACE.
FAILURE TO FOLLOW ALL SAFETY INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, INJURY OR DEATH.
Warning: Heavy Weight Hazard!
ATTENTION:
Advertisement
Related Manuals for Xo XOGSBCARTXLT
Summary of Contents for Xo XOGSBCARTXLT

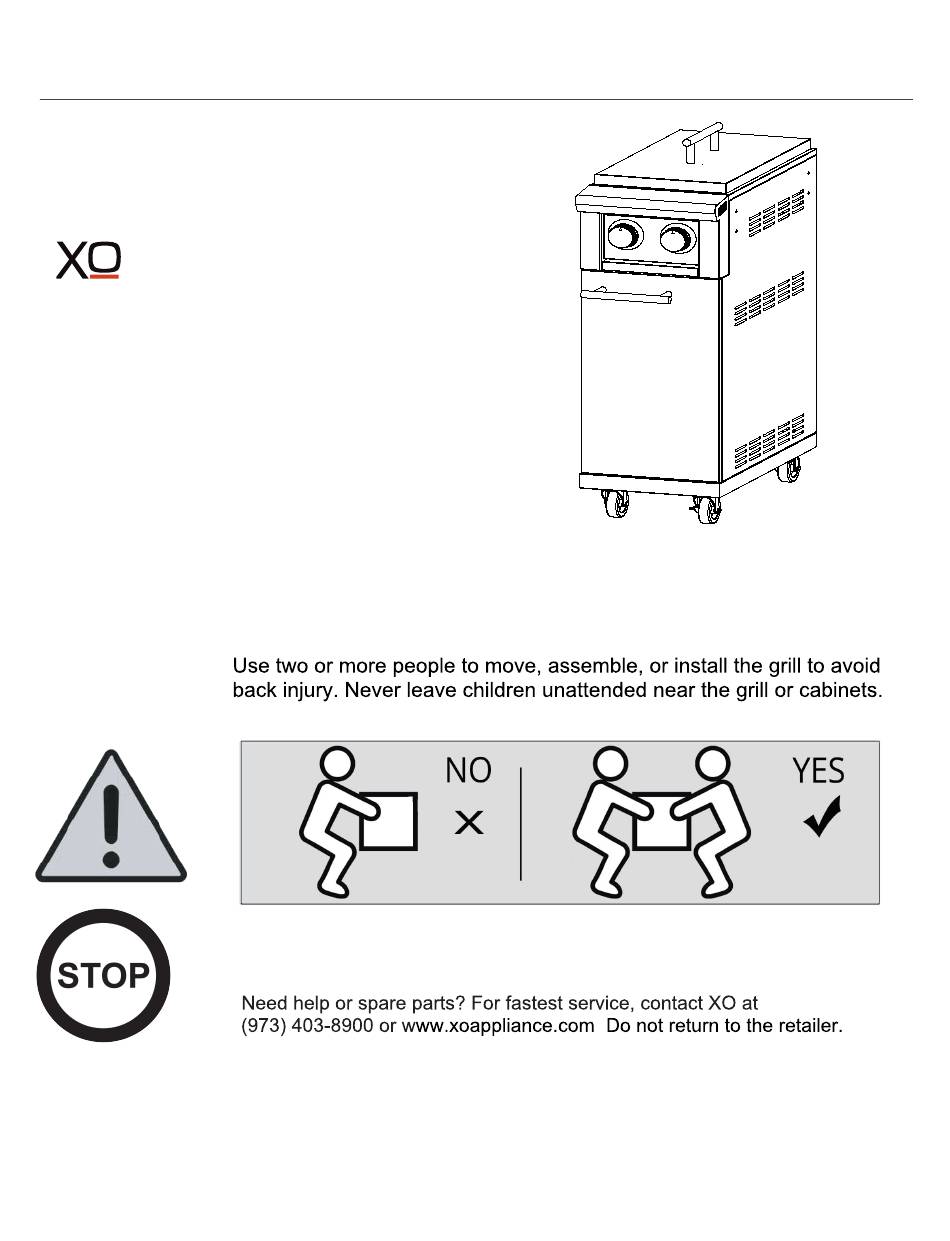

- Page 1 XO PERFORMANCE SIDE BURNER CART ASSEMBLY INSTRUCTIONS PERFORMANCE GRILL CARTS MODEL: XOGSBCARTXLT Warning: Heavy Weight Hazard! ATTENTION: THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE. PLEASE READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS THAT ACCOMPANY BOTH THIS CART AND THE GRILL BEFORE ASSEMBLING AND USING THE APPLIANCE.
- Page 2 Unpacking • • Remove all cardboard, foam packaging material and nylon bags. • Dispose / recycle all packaging materials. • y f i l l a . s l “ e ” d t s i next pages. Tools Supplied or needed 1 x #2 Phillips head 1 x Box Cutter screwdriver...
-
Page 3: Spare Parts List
Spare Parts List Part Number Description XOPG64974 Handle XOPG64975 XOPG64978 XOPG64976 XOPG64980 XOPG64977 XOPG64979 XOPG64980 XOPG64995 / Base XOPG64996 Casters Non-Locking XOPG64997 XOPG64981... -
Page 4: What Comes In The Box
What Comes In The Box Casters Locking Casters Handles (2 PCS) (2 PCS) (2 PCS) Gas Connection Wye (1 PC) SIDE BURNER Electrical Connector CART ASSEMBLY Not Shown (1 PC) Hardware Screwdriver (6 PCS) (1PC) - Page 5 ssembly Instructions The primary cart cabinet is pre-assembled at the factory. You will still need to do some assembly to attach the handles and casters in addition to mounting the unit to the side of the grill cart. grate. You will see an attachment M5x10 bolt on either side that extends out from the interior of the burner into the side walls of the cart.
- Page 6 Lay the empty cart on it’s back. Use the cardboard packaging as a working surface to prevent scratching. Using (16) M6x12 bolts (4 per caster) attach the caster to each of the corners of the base as shown. The locking casters must be installed on the right hand side - the non-locking casters must be installed on the left.
- Page 7 Remove the right side shelf brackets for installation on the Side Burner Cart. Screw into the right side panel and base 6 - M5x10 bolts 2/3 of the way in as shown below.
- Page 8 Slide the side burner cart to the main cart and allow the 4 screws on the top and the two screws on the bottom to slide over the M5 x 10 bolts. Once in place tighten them witht he supplied screw driver.
- Page 9 Reinstall the side burner into the cart using the removed M5x10 bolts.
- Page 10 DANGER IF YOU SMELL GAS: Shut o gas to the appliance. Extinguish any open ame. Open the lid If odor continues, keep away from the appliance and immediately call your gas or your re department.
- Page 11 Leak Testing Instructions Fixing a Gas Leak • • Turn all grill controls to the “ON” position to purge the grill of any gas build-up, then turn the controls back “OFF”. • • Tighten the loose joint, or replace the faulty part with manufacturer-recommended replacement parts.
- Page 12 FOR INFORMATION REGARDING THE GAS CONNECTION TO YOUR GRILL. FAILURE TO FOLLOW ALL SAFETY GUIDELINES MAY RESULT IN PROPERTY DAMAGE, INJURY OR DEATH. XO APPLIANCE | 120 EAGLE ROCK AVE. SUITE 303 | EAST HANOVER, NJ 07936 P. 973.403.8900 WWW.XOAPPLIANCE.COM...
