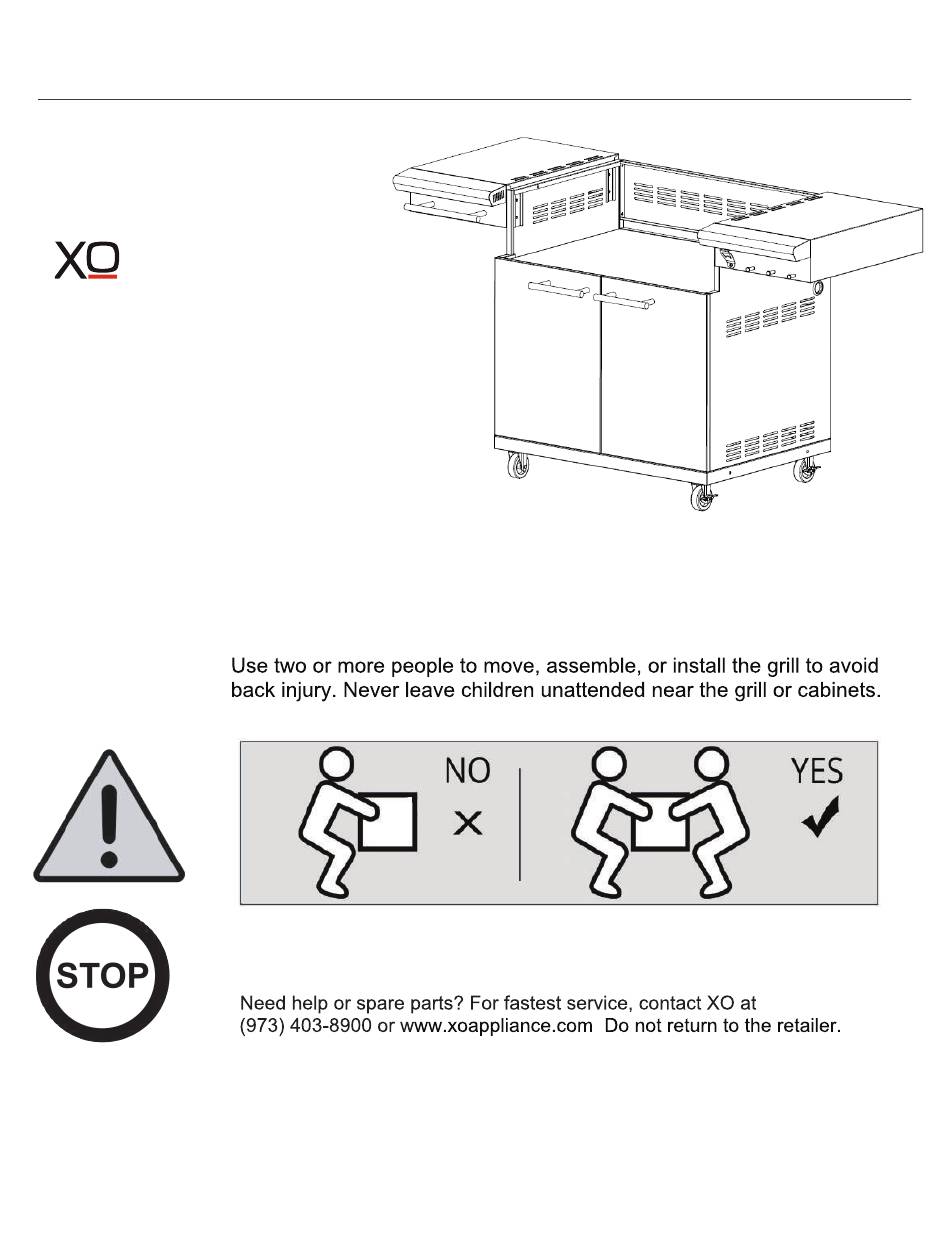

XO PERFORMANCE GRILL CART ASSEMBLY INSTRUCTIONS
PERFORMANCE
GRILL CARTS
MODELS:
XOG32CARTXLT
XOG40CARTXLT
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER
ASSEMBLY AND SAFE USE OF THE APPLIANCE. PLEASE READ AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS THAT ACCOMPANY BOTH THIS CART AND THE GRILL BEFORE ASSEMBLING AND
USING THE APPLIANCE. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. DO NOT OPERATE
IN ANY ENCLOSED SPACE.
FAILURE TO FOLLOW ALL SAFETY INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, INJURY OR DEATH.
Warning: Heavy Weight Hazard!
ATTENTION:
Advertisement
Related Manuals for Xo XOG32CARTXLT
Summary of Contents for Xo XOG32CARTXLT
- Page 1 XO PERFORMANCE GRILL CART ASSEMBLY INSTRUCTIONS PERFORMANCE GRILL CARTS MODELS: XOG32CARTXLT XOG40CARTXLT Warning: Heavy Weight Hazard! ATTENTION: THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE. PLEASE READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS THAT ACCOMPANY BOTH THIS CART AND THE GRILL BEFORE ASSEMBLING AND USING THE APPLIANCE.
- Page 2 Or simply scan here to be taken to the registration page... REGISTRATION HELPS YOU BY - Ensuring warranty coverage should you need service Providing ownership veri cation for insurance purposes XO can notify you in the event of product changes or recalls.
-
Page 3: Tools Needed
• Verify all the contents in the box and gather the required tools. See “Tools Needed” below. Contact XO Appliance at www.xoappliance.com or (973) 403-8900 regarding any missing parts. Tools Needed 1 x #2 Phillips head 1 x Box Cutter... - Page 4 XOG32CARTXLT XOG40CARTXLT...
- Page 5 Diagram XOG32CARTXLT | XOG40CARTXLT...
-
Page 6: Spare Parts List
Spare Parts List XO GRILL CARTS (32"&40") S.No. Spare Part SKU Description XOPG64974 Cart rear upper panel XOPG64975 Cart rear lower panel XOPG64976 Top panel XOPG64978 Side shelf left bracket XOPG64979 Side shelf right bracket XOPG64980 Left side shelf front... -
Page 7: Parts Supplied
Parts Supplied 1 x Cart Rear Upper Panel 1 x Cart Rear Lower Panel 1 x Top Panel 2 x Side Shelf Left Bracket 2 x Side Shelf Right Bracket 4 x Hinge 1 x Side H andle 1 x Left Side Shelf Front 1 x Left Side Shelf Front 1 x Left Door 1 x Front Panel Support... - Page 10 USING 4 - M4X12 BOLTS, MOUNT THE 12V TRANSFORMER TO THE CART REAR LOWER PANEL ON THE RIGHT HAND SIDE AS SHOWN BELOW. THIS WILL BE USED LATER TO POWER THE INTERIOR HALOGEN LIGHTS AND CONTROL PANEL LEDS.
- Page 11 Support Support...
- Page 12 Attach the Center Shelf #(13) to the Left Side Panel #(12), Front Panel Support #(15) and Back Panel Support Side P Support Upper P Side P...
- Page 13 n lace anel the H Hinges to the L Right D s #(10, 23). attach to each D #(10 , 23) using 2 - bolts 2 Hinges #(9) using 2 - both the L Right D s #(10, 23). LEFT DOOR RIGHT DOOR...
- Page 14 Screw B on the hinges. to the left side panel as as shown If you are attaching the XO Side Burner Cart - Go to that Manual and attach it at this time. STOP If you are NOT attaching the...
- Page 15 ide Shelf Front #(6) to the Left Side Shelf #(7), turn both parts upside down. Start, but do not tighten down 2 - lts as shown below into the Left Side Shelf Front #(6). Align the heads of the bolts with the keyhole slots in the Left Side Shelf #(7) and slide into place to align both parts.
- Page 16 Install an M5x15 shoulder bolt at the top of each Shelf racket . After the installation use an additional M5x15 shoulder bolt to install the Side Shelf A Shelf racket, front and rear as shown. To attach the Right Side Shelf Front #(20) to the Right Side Shelf #(21), turn both parts upside down.
- Page 17 Attach the supplied Bottle Opener #(22) to the Side Shelf Assembly with 2 - Install Tool Pegs and screw them into place. Install an M5x15 shoulder bolt at the top of each Shelf Bracket #(4, 5). After the installation use an additional M5x15 shoulder bolt to install the Side Shelf Assembly to the Shelf Bracket, front and rear as shown.
- Page 18 BEFORE MOUNTING THE GRILL TO THE CART - LOCK THE CASTERS TO PREVENT ACCIDENTAL MOVEMENT. WARNING: DO NOT ATTEMPT TO LIFT AND PLACE THE GRILL ALONE TEAM LIFT OPEN THE GRILL AND REMOVE THE GRATES TO REDUCE ITS WEIGHT. AFTER ENSURING THE CART HAS BEEN IMMOBILIZED, TOGETHER WITH OTHERS LIFT AND PLACE THE GRILL INTO THE ASSEMBLED CART.
- Page 19 AFTER CONNECTING THE UTILITIES AND SLIDING THE GRILL IN SO THE GRILL FLANGE IS SUPPORTED ON BOTH THE SIDES AND BACK BY THE CART PANELS - OPEN THE HOOD - ON BOTH SIDES OF THE GRILL FIREBOX THERE IS A HOLE FOR AN ATTACHMENT SCREW (SEE DRAWING BELOW) USING AN M5X10 BOLT...
- Page 20 FOR INFORMATION REGARDING THE GAS CONNECTION TO YOUR GRILL. FAILURE TO FOLLOW ALL SAFETY GUIDELINES MAY RESULT IN PROPERTY DAMAGE, INJURY OR DEATH. XO APPLIANCE | 120 EAGLE ROCK AVE. SUITE 303 | EAST HANOVER, NJ 07936 P. 973.403.8900 WWW.XOAPPLIANCE.COM...
