Xpression Maps Getting Started

Getting Started
Getting Started continued
When contacting technical support: please
provide the information
listed on the following label,
which is located on the top
right front side of the
chassis.
7

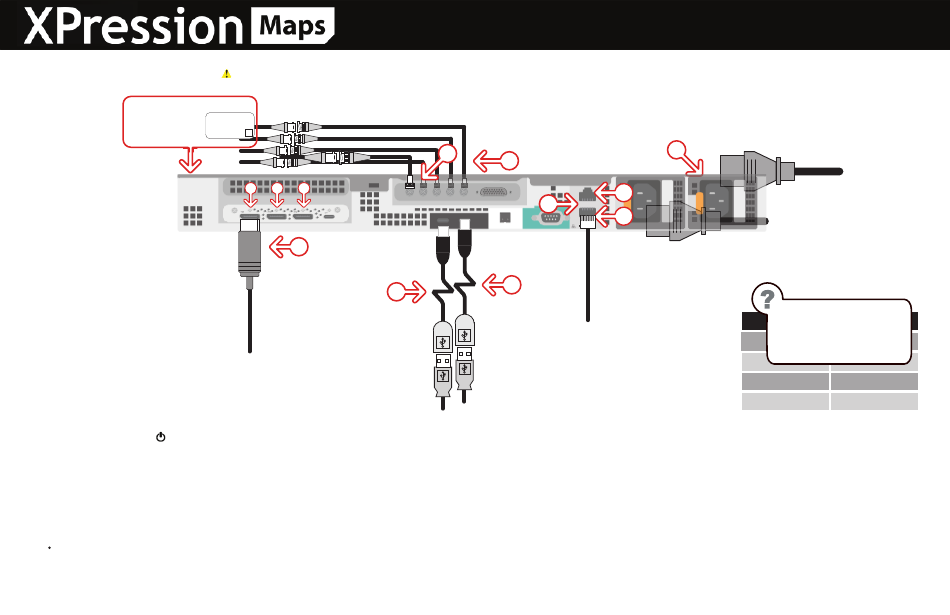

Connect the HD-BNC end of the pigtail cables to the HD-BNC connectors and attach the SDI cables to the BNC end of the pigtails
according to their required destination.
The default configuration is displayed in the table at right.
Keep any unused pigtail and SDI cables in a safe place for future use.
If your facility requires analog outputs, additional outboard digital to analog conversion equipment is available from Ross Video.
8
Connect power cords from the AC Ports on the XPression Maps system to the mains power.
XPression Maps system power supplies are auto-sensing and can use either 110 VAC or 220 VAC.
1 9
Use the supplied Rack Mount Kit to mount the XPression Maps system in a 19'' EIA equipment rack. On the front of the chassis, press the button on the outer-left side of the door and pull the door outward to remove it from the XPression Maps system.
10 For information on installing the XPression Maps chassis in a rack, see the provided document
Press the Power button ( ) on the front of the XPression Maps system.
"Installing the Chassis in a Rack".
Wait for the system to finish booting up.
2
Plug the supplied Keyboard into one of the USB-C ports using the supplied USB-C to USB-A adapter.
When shutting down, Ross Video recommends shutting down XPression Maps systems from the Windows operating system.
3
11 Plug the supplied Mouse into one of the USB-C ports using the supplied USB-C to USB-A adapter.
Click the XPression Maps user account icon to log onto the system.
4
Connect a Monitor (customer supplied) to any of the three display ports (a).
When using display ports, ensure the correct display port to DVI adapters are used (DVI-D or DVI-I).
KVM extenders (customer supplied) are required when the XPression Maps system monitor, keyboard,
For information on...
and mouse are located remotely from the rack room.
operating XPression Maps, see the "XPression Maps User Guide" available in the C:\Archive folder.
3500DR-027-01 ©2021 Ross Video Limited, Ross®, and any related marks are trademarks or registered trademarks of Ross Video Limited. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,mechanical, photocopying, recording or otherwise, without the prior written permission of Ross Video. While every precaution has been taken in the preparation
of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.
CAUTION: Before you set up and operate this product, see the "Important Safety Instructions" in your Manual.
Ross Video Ltd.
Part #: ###-###-##
SDI 1
Issue: #
Serial #: ########
#/#
SDI 2
SDI 3
SDI 4
a a a
4
6
7
5
3
2
5
Plug an Ethernet cable from your Local Area Network into either the 1G or 10G Ethernet port.
XPression Maps systems can be connected to the Internet or a restricted production network.
The network connection is also used to distribute assets and for the RossTalk/Smart GPI feature.
6
Connect your house reference Genlock signal to the REF mini-BNC connector.
XPression Maps systems accept analog blackburst or tri-level sync as reference inputs. Tri-level sync
is recommended for HD installations.
Continued on other side...
8
1G
10G
HD-BNC
Technical Support:
1-844-652-0645 (North America)
Output 1
+800 1005 0100 (International)
Email: techsupport@rossvideo.com
Output 2
Input 1
Input 2
Need Help?
Default (2 in 2 out)
Fill Output
Key Output
Fill Input 1
Fill Input 2
