Xpression fX Enhancer User Manual

Xpression fX Enhancer —MIDI
Description

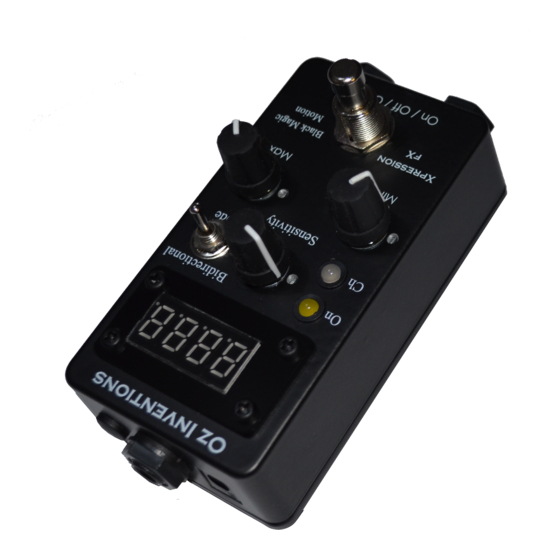

Xpression fX Enhancer – MIDI, from Oz Inventions, is a ex-
pression pedal to MIDI controller convertor. It is compatible
with most MIDI devices with a 5-pin DIN MIDI receive socket,
including keyboards and effect units.
Important message
1. The position of the sensitivity, minimum depth and maxi-
mum depth controls are of extreme importance in obtain-
ing the correct amount of control. Having these controls
in the incorrect position may mean no control, minimum
control or erratic control. If in doubt set minimum depth
to minimum, maximum depth to maximum and set the
sensitivities as follows.
Mode Sensitivity
function
Automatic Step size
External Step size
Playback Trim recording
2. It is easy to accidently assign values to the full range of
continuous controllers (0 – 119) . So, when changing con-
tinuous controller numbers ensure that either the on/off /
calibrate, switch is off, or that the continuous controller is
disabled. (----). Resetting the receiving MIDI device is an
option if this unwanted condition exists.
See the full manual at www.ozinventions.com
1.
Xpression fx Enhancer —MIDI controller, Description V1.13 © Oz Inventions 2018
Suggested
start point
0
0
0

Bidirectional switch – Bidirectional sweep

Minimum depth – sets how low control can fall

Maximum depth – sets how high control can rise
Menu access
System/ADSR menu entry and exit
1. Press and hold on/off/calibrate/recording switch
2. Hold mode switch forward and release
Step size menu entry and exit
1. Hold mode switch forward
2. Press and hold on/off/calibrate/recording switch and
release
MIDI menu entry and exit
1. Fully rotate anti-clockwise the maximum depth control
2. Press and hold on/off/calibrate/recording switch
3. Hold sensor select switch forward and release
Preset menu entry and exit
1. Rotate maximum depth control fully anti-clockwise (0)
2. Rotate minimum depth control fully clockwise (127)
3. Press on/off/calibrate/recording switch
Navigating a menu
The minimum and maximum depth controls function as menu
controls when inside a menu. They will retain their depth val-
ues when in a menu, but will revert to the knobs current posi-
tion when a menu is exited. And so they should be returned to
the position they were in before the menu was entered.
Use minimum depth to move through menu items and maxi-
mum depth to change menu item parameters
Saving menu parameters
Quit/save is the last menu item in all menus. Select 'Save' in
menu, and exit menu to save. This saves all menu settings and
calibration settings for the current preset.
Default settings
The default settings can be restored by resetting the system.
(Hold mode switch forward whilst powering on)
